Removal and Installation

CAUTION:

Perform "ELECTRIC IVT CONTROL ACTUATOR POSITION LEARNING". Refer to Description .

    WITHOUT IDLE START/STOP SYSTEM

    REMOVAL

  1. Disconnect battery negative terminal. Refer to Exploded View .
  2. Remove front wheel and tire. Refer to Removal and Installation
  3. Remove the fuse block cover.
  4. Remove the bolt (A).

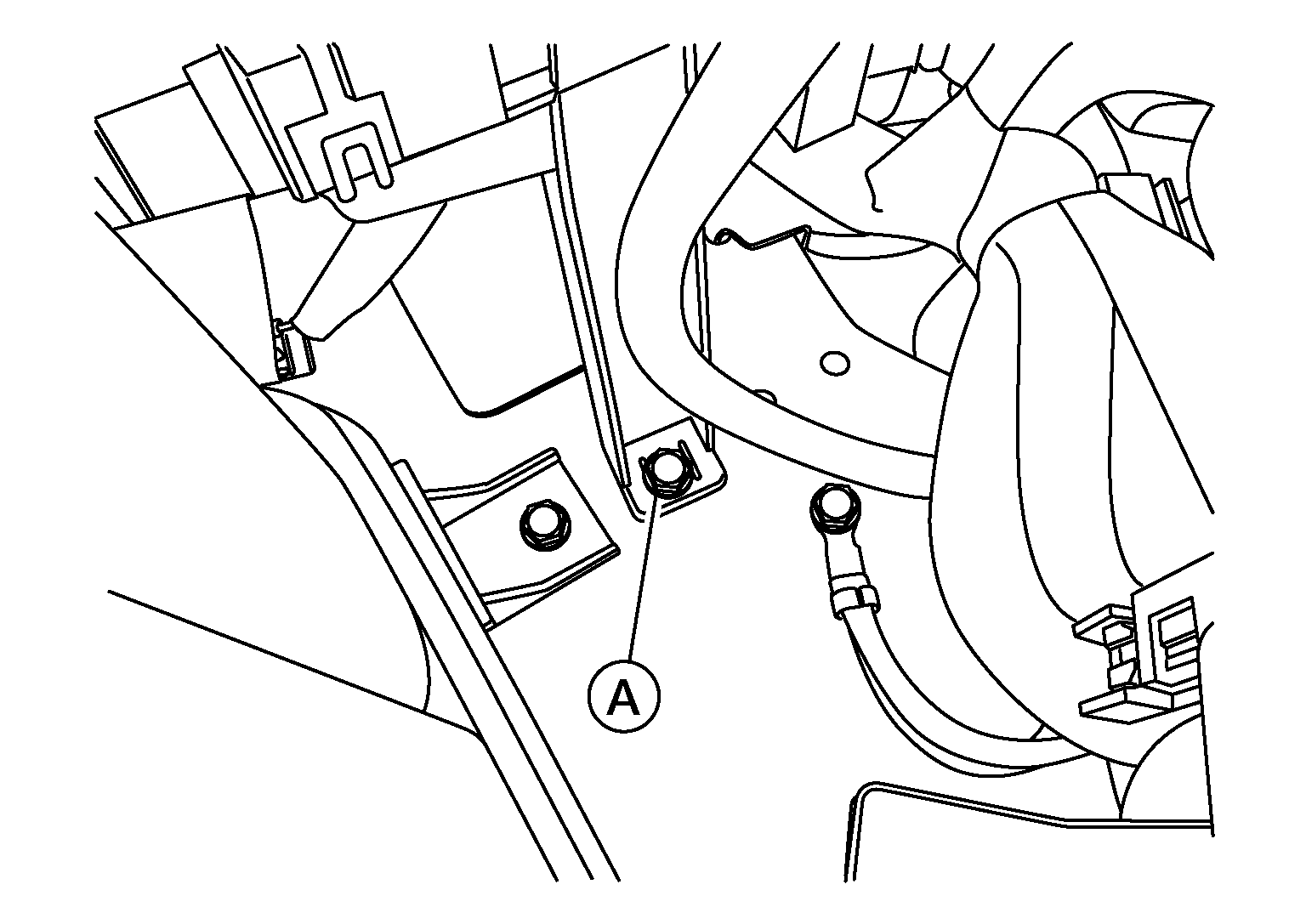

    GNSDB43267Courtesy of NISSAN
  5. Release the pawl and reposition the fuse block (1).

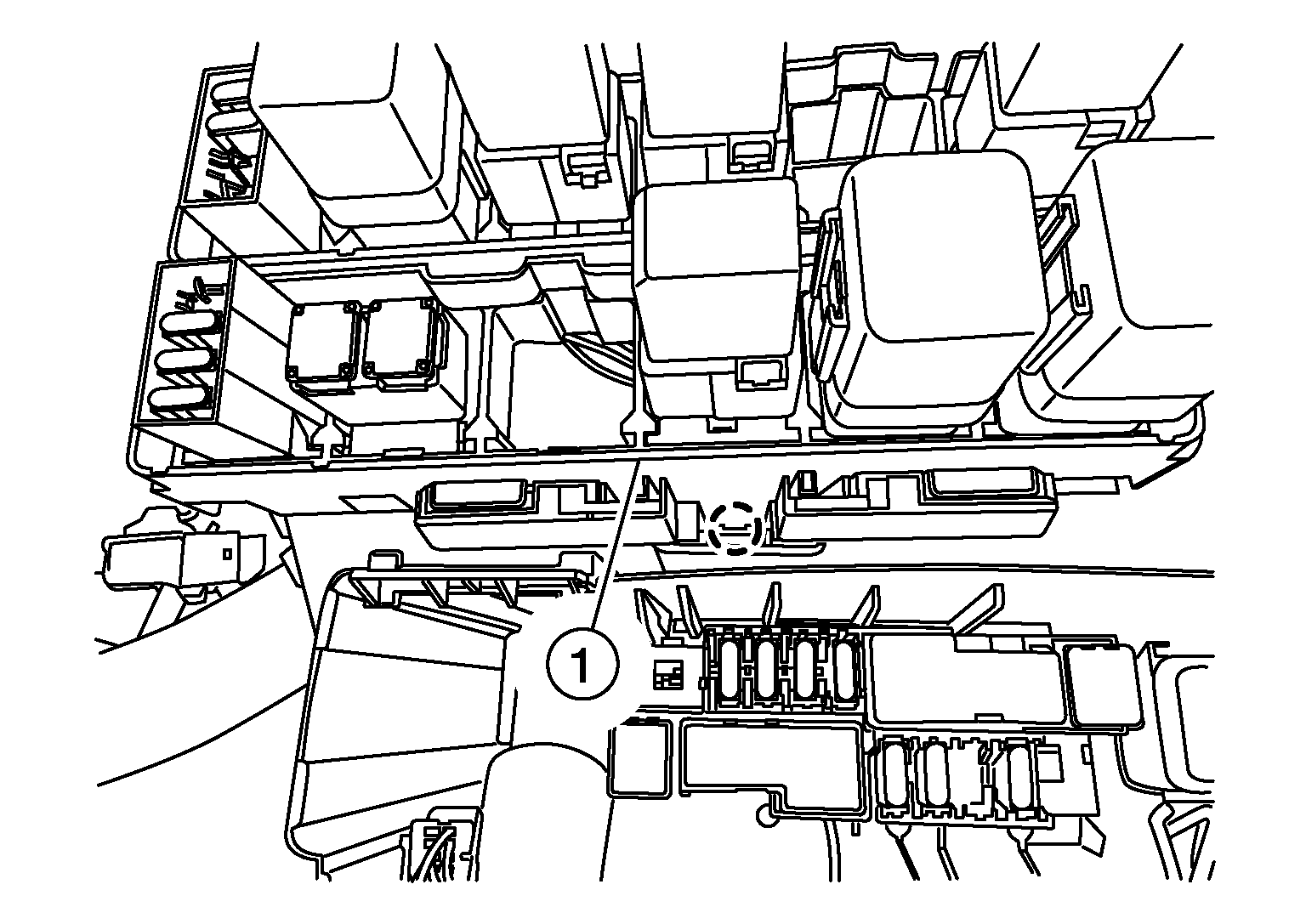

    GNSDB44191Courtesy of NISSAN
    SYMBOL : Pawl
  6. Remove the fender protector (RH). Refer to Removal and Installation .
  7. Remove nut (A) for fuse block bracket and nut (B) for IPDM E/R cover (lower).

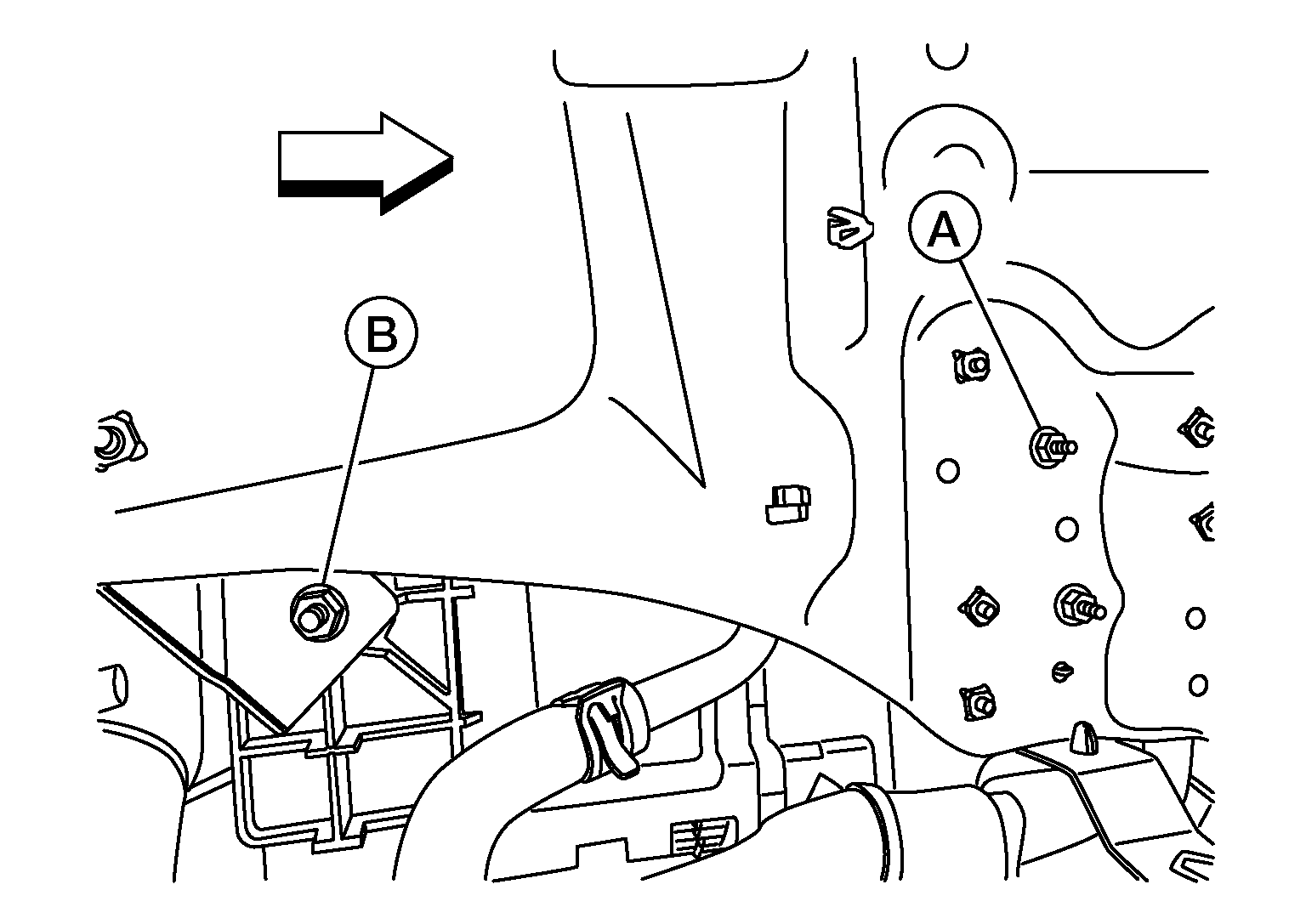

    GNSDB44059Courtesy of NISSAN
    SYMBOL : Vehicle front
  8. Remove harness retainer (A) and bolt (B) from fuse block bracket (1) and remove fuse block bracket.

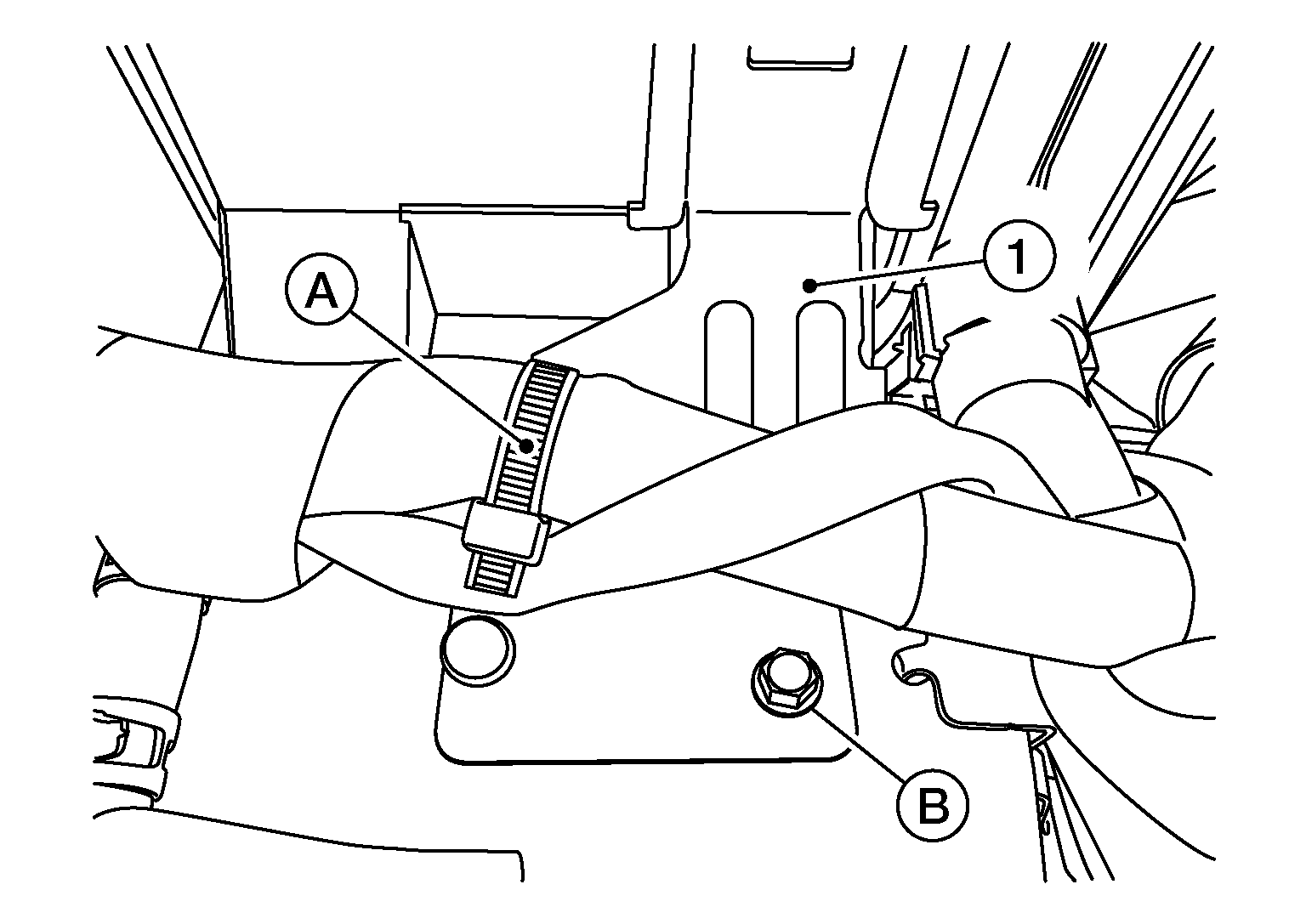

    GNSDB43172Courtesy of NISSAN
  9. Remove IPDM E/R cover.
  10. Release pawls and remove IPDM E/R cover (1).

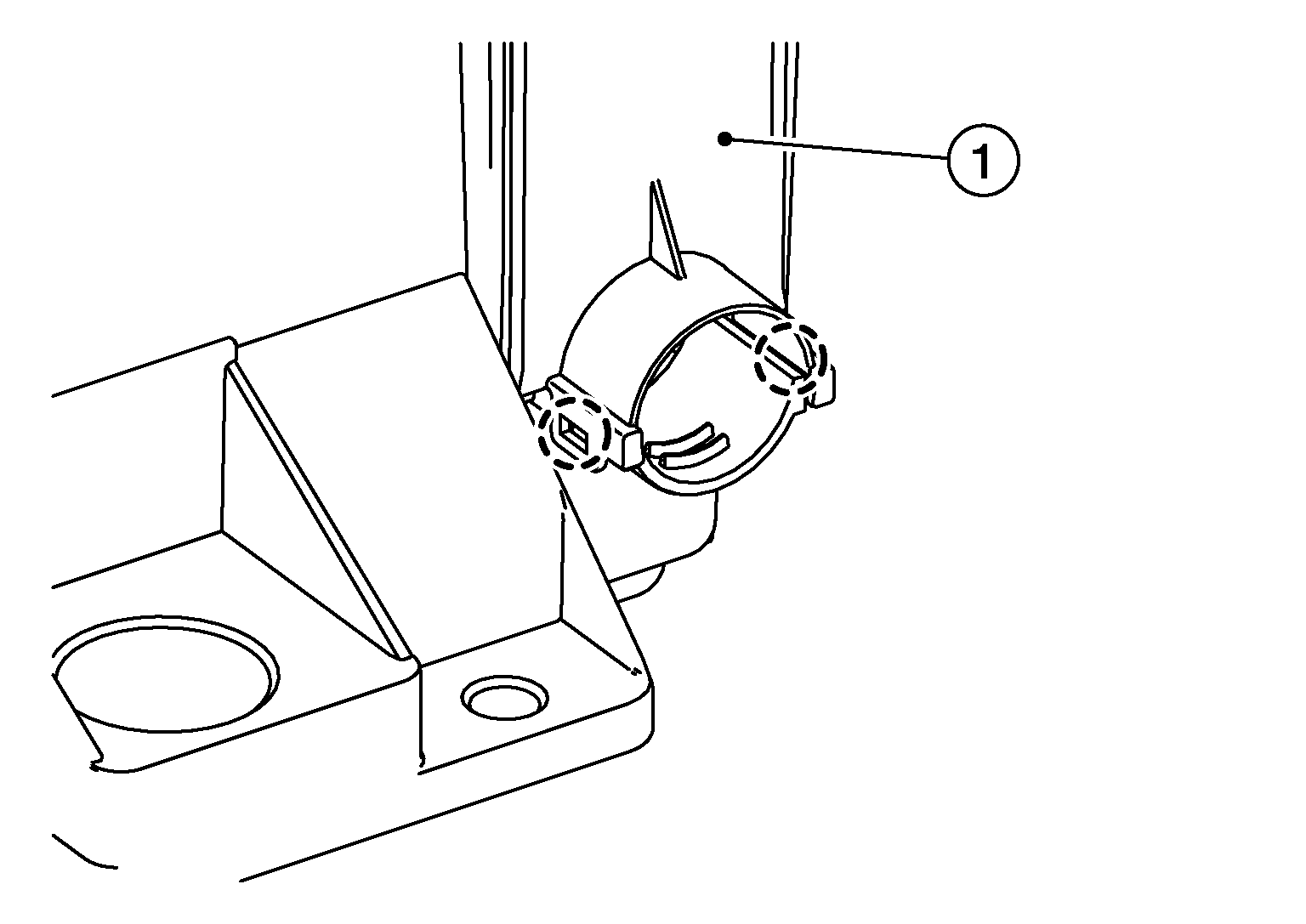

    GNSDB44317Courtesy of NISSAN
    SYMBOL : Pawl
  11. Disconnect harness connectors (A).

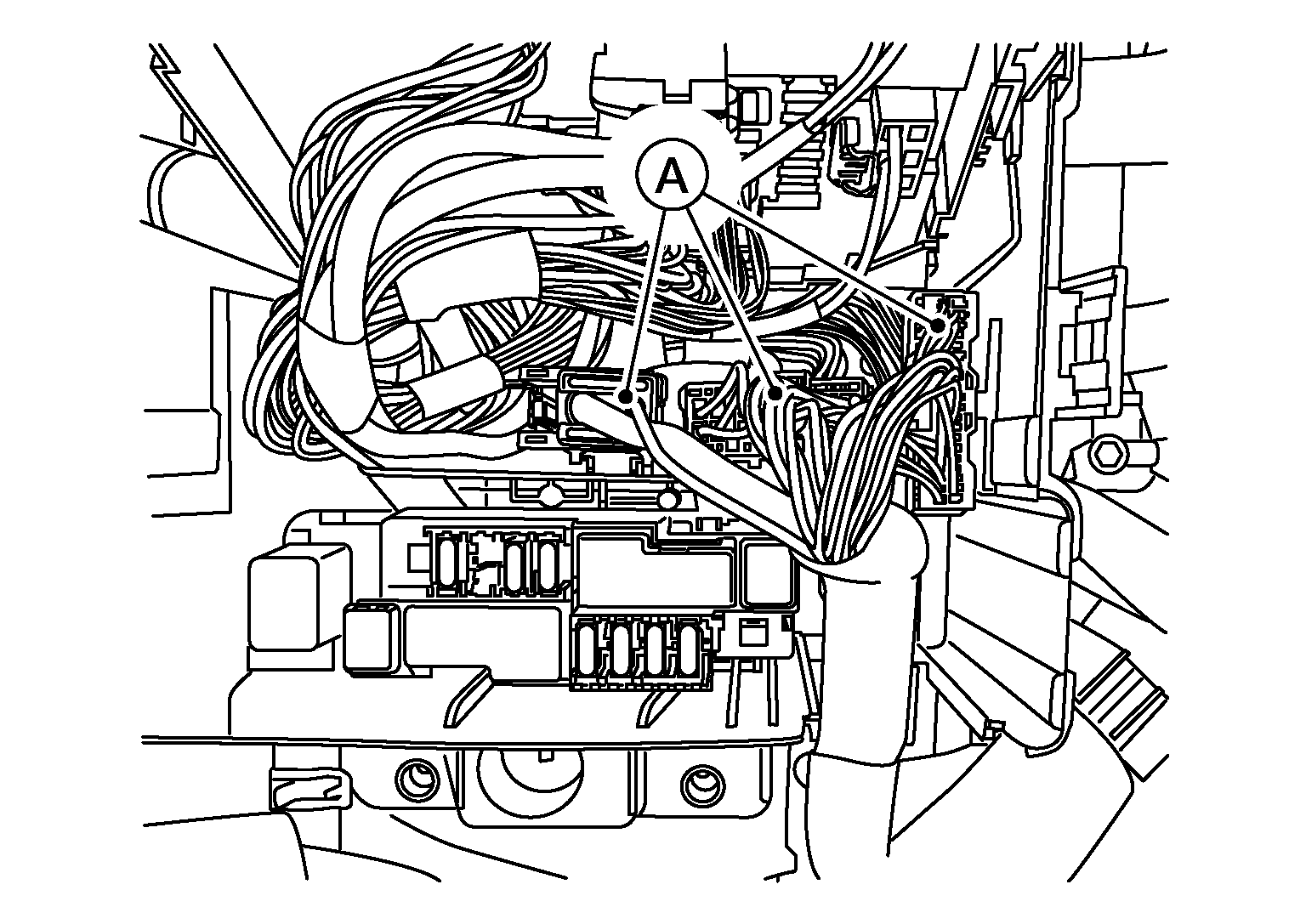

    GNSDB43821Courtesy of NISSAN
  12. Remove bolts securing IPDM E/R cover (lower) and reposition IPDM E/R cover (lower).
  13. Disconnect harness connectors from electric intake valve timing control module. Refer to Harness Connector (lever locking type).
  14. Remove nuts (A), and remove electric intake valve timing control module (1).

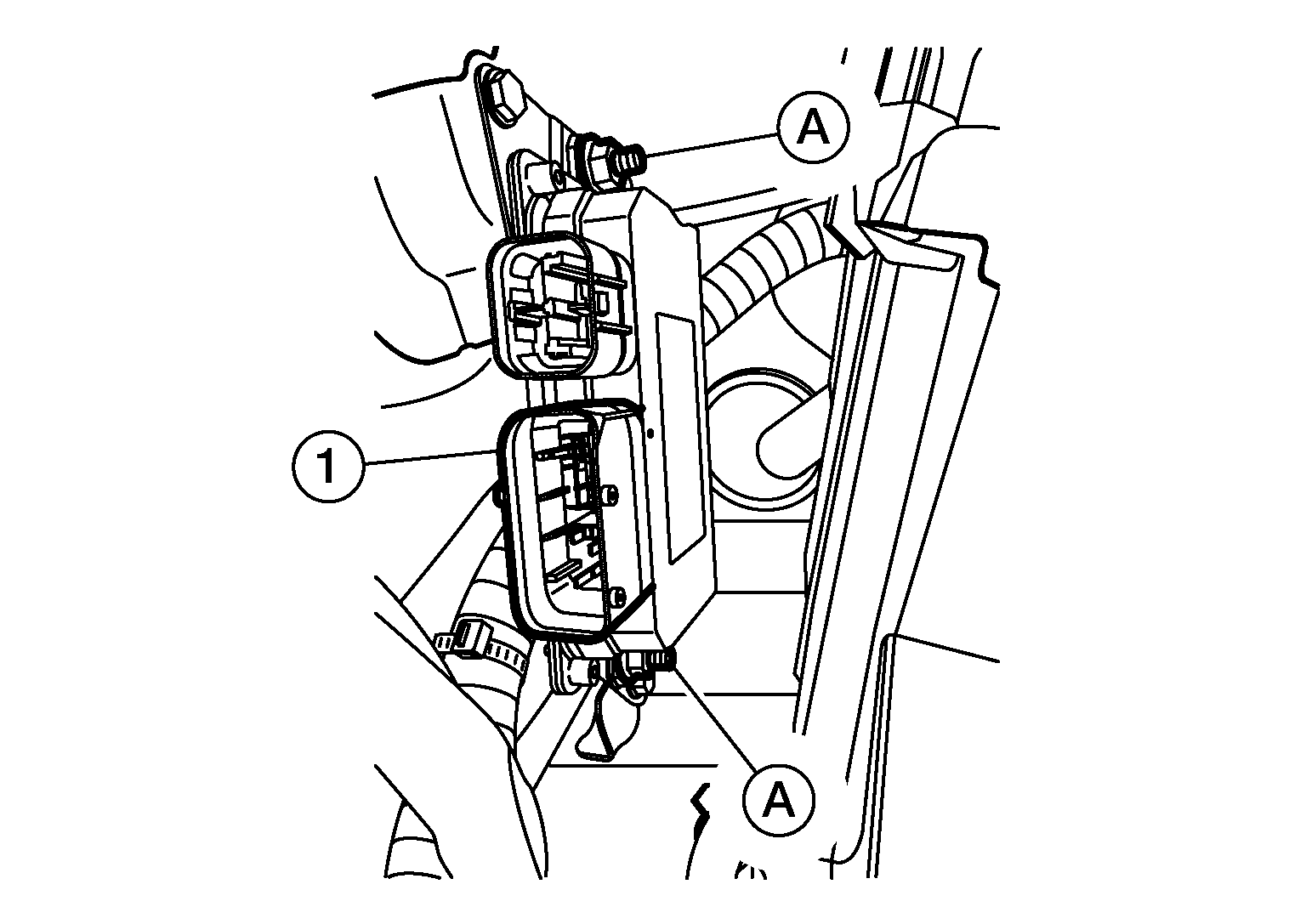

    GNSDB43177Courtesy of NISSAN
    CAUTION:

    Never touch harness connector pins with bare hands.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
  • Perform "ELECTRIC IVT CONTROL ACTUATOR POSITION LEARNING". Refer to Description .
  • Perform "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL". Refer to Special Repair Requirement .
CAUTION:

Perform "ELECTRIC IVT CONTROL ACTUATOR POSITION LEARNING". Refer to Description .

    WITH IDLE START/STOP SYSTEM

    REMOVAL

  1. Remove battery tray. Refer to Removal and Installation .
  2. Remove front wheel and tire. Refer to Removal and Installation
  3. Release the pawl and reposition the fuse block (1).

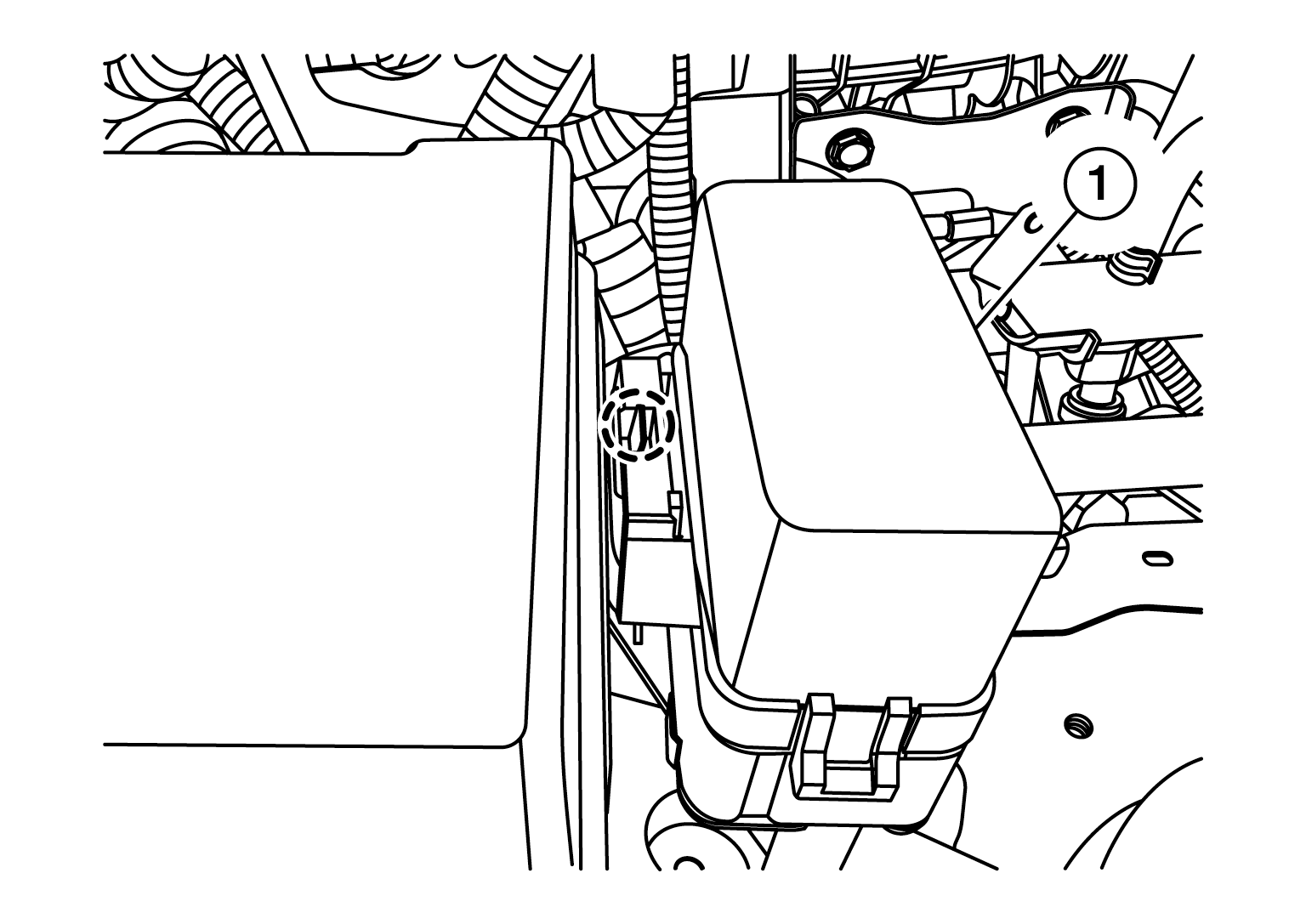

    GNSDB42921Courtesy of NISSAN
    SYMBOL : Pawl
  4. Remove the fender protector (RH). Refer to Removal and Installation .
  5. Remove nut (A) for IPDM E/R cover (lower).
    GNSDB42406Courtesy of NISSAN
    SYMBOL : Vehicle front
  6. Remove harness retainer (A) and bolts (B) from fuse block bracket (1) and remove fuse block bracket.
    GNSDB43746Courtesy of NISSAN
  7. Remove IPDM E/R cover.
  8. Release pawls and remove IPDM E/R cover (1).
    GNSDB44317Courtesy of NISSAN
  9. Disconnect harness connectors (A).
    GNSDB43821Courtesy of NISSAN
  10. Remove bolts securing IPDM E/R cover (lower) and reposition IPDM E/R cover (lower).
  11. Disconnect harness connectors from electric intake valve timing control module. Refer to Harness Connector (lever locking type).
  12. Remove nuts (A), and remove electric intake valve timing control module (1).
    GNSDB43177Courtesy of NISSAN
CAUTION:

Never touch harness connector pins with bare hands.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform "ELECTRIC IVT CONTROL ACTUATOR POSITION LEARNING". Refer to Description .
