Removal and Installation

REMOVAL

1. Disconnect the battery negative terminal. Refer to Removal and Installation .

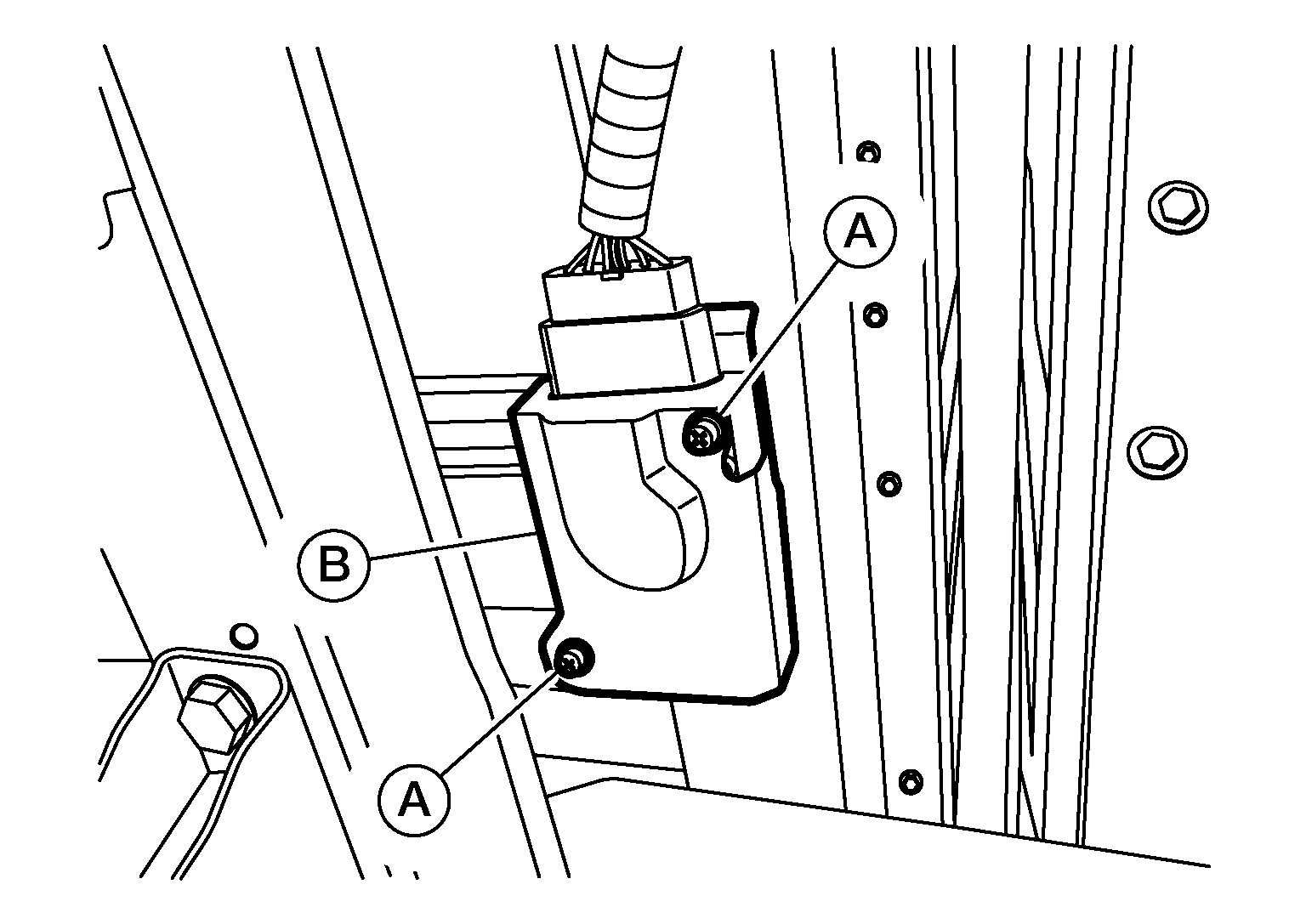

2. Remove screws (A) from fuel pump control module cover (B).

   Courtesy of NISSAN

3. Disconnect the harness connector from fuel pump control module.

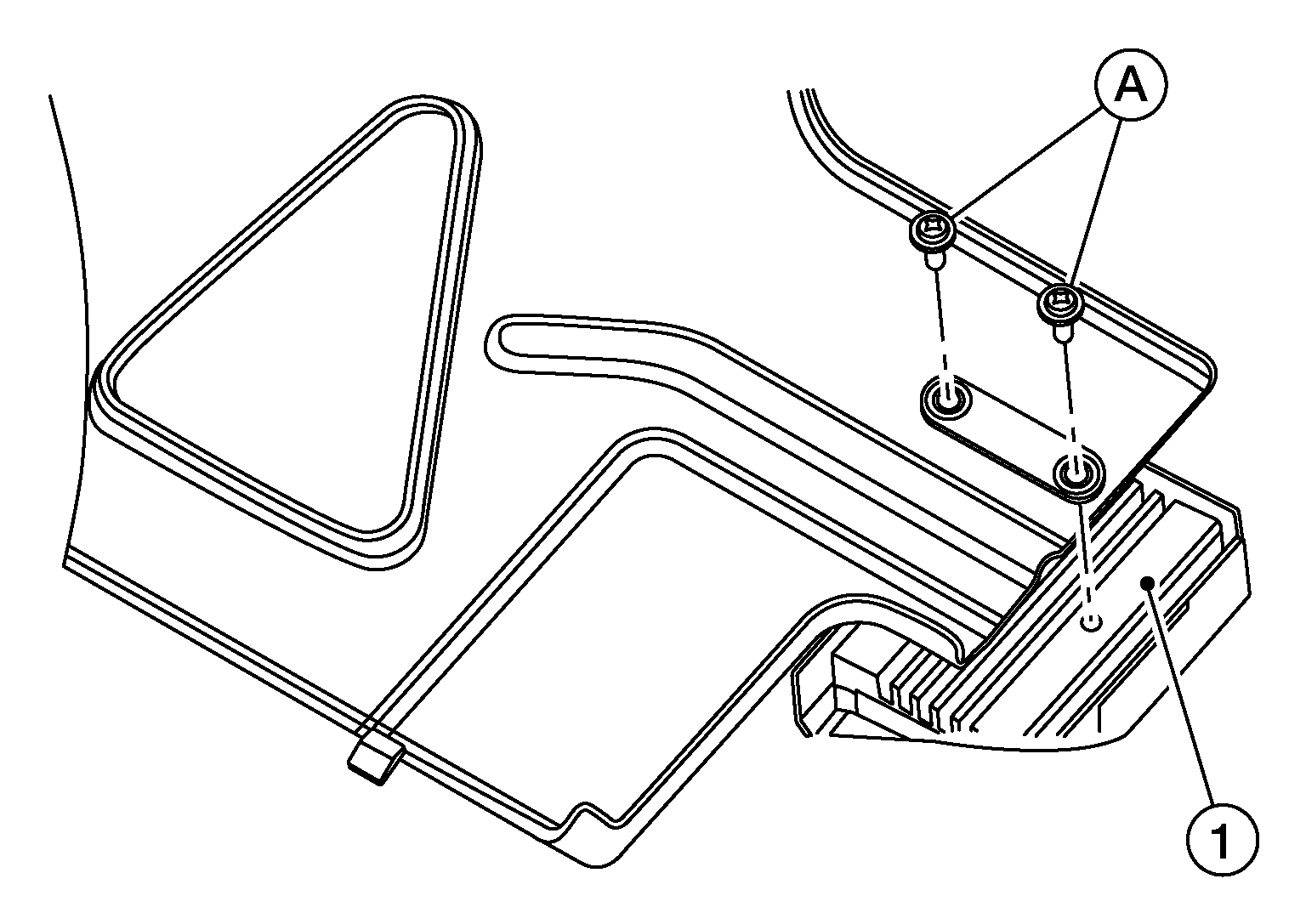

4. Remove screws (A) and fuel pump control module (1).

   Courtesy of NISSAN

INSTALLATION

Installation is in the reverse order of removal.
