Removal and Installation
REMOVAL
CAUTION:
- If replacing EPS control unit, perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL MODULE". Refer to Description .
- Do not shock, drop or hit EPS control unit.
- Do not allow any water or other liquids to contact EPS control unit.
- Do not expose EPS control unit to severe temperature changes to avoid condensation.
- Do not disassemble EPS control unit.
- Do not remove EPS motor, torque sensor, harness and connectors.
- Disconnect battery negative terminal before removing EPS control unit. Refer to Battery Disconnect .
- Remove the left knee air bag module. Refer to Removal and Installation .

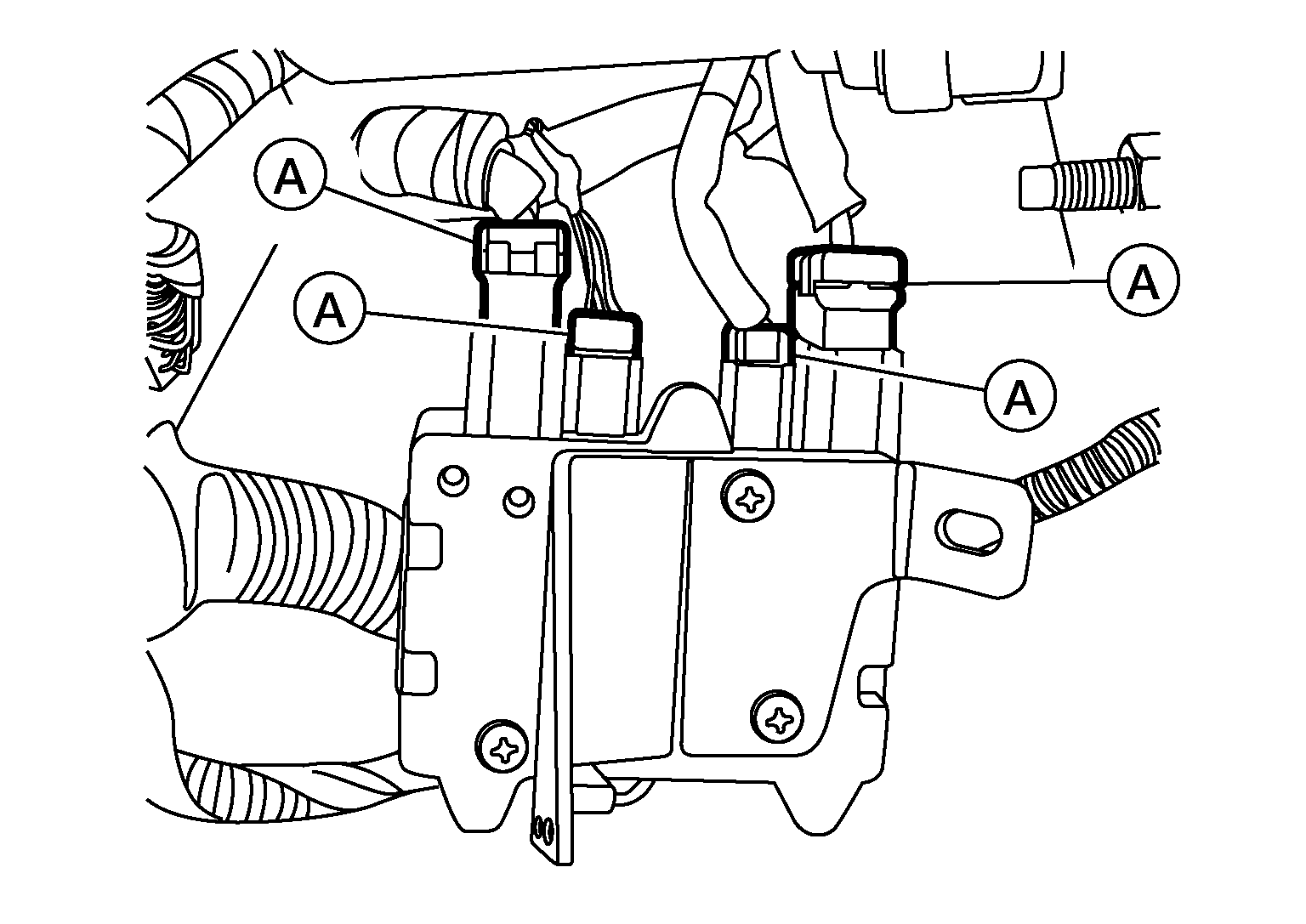

- Disconnect harness connectors (A) from EPS control unit.
- Separate wiring harness from EPS control unit bracket.

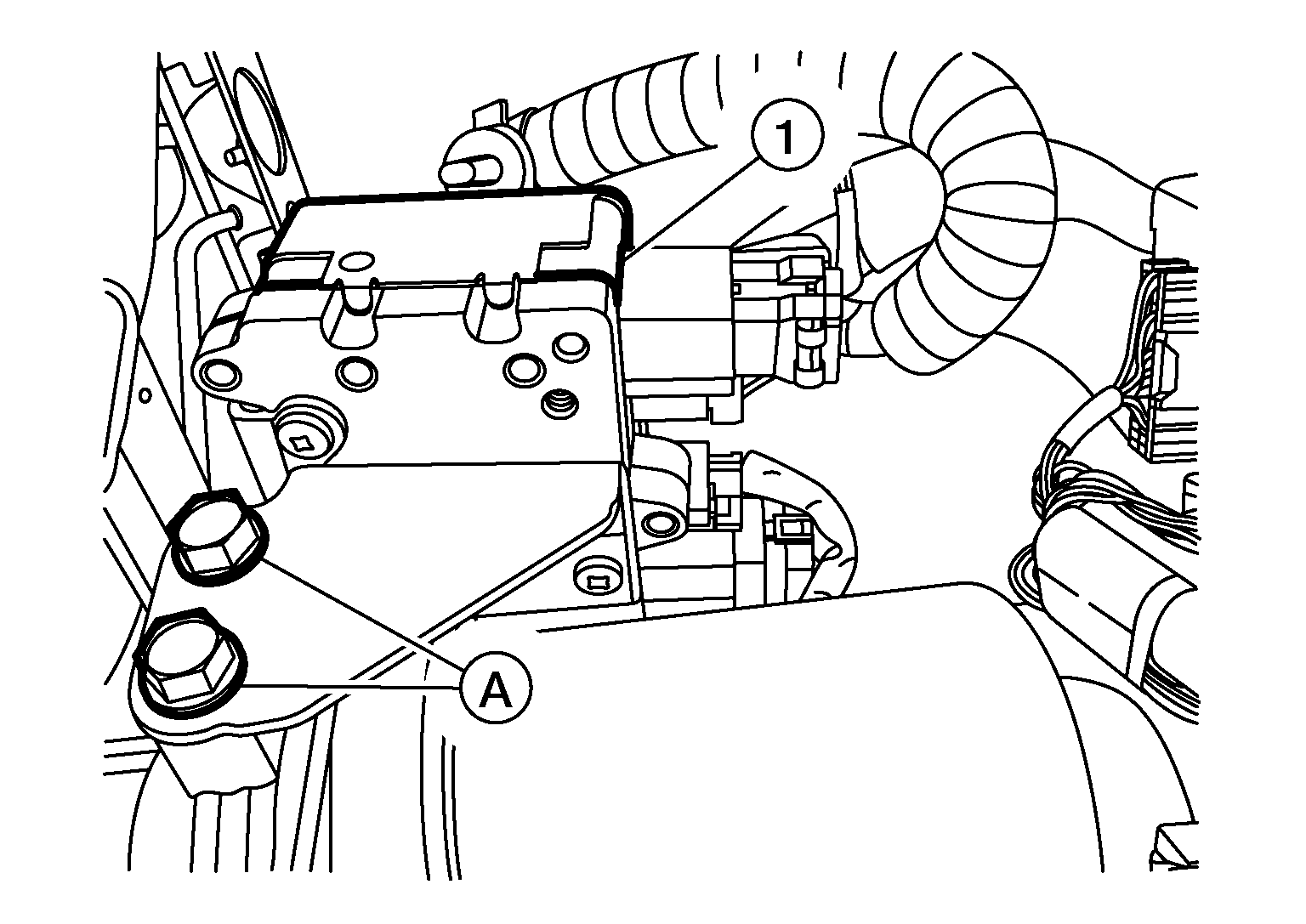

- Remove bolts (A) and separate EPS control unit (1) from steering column.
- Remove screws and separate EPS control unit from bracket (if necessary).
INSTALLATION
Installation is in the reverse order of removal.
- Also check that the EPS control unit is installed without pinching or interfering with the harness.
CAUTION:
If replacing EPS control unit, perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL MODULE". Refer to Description .
