EPS Motor, Torque Sensor, Reduction Gear

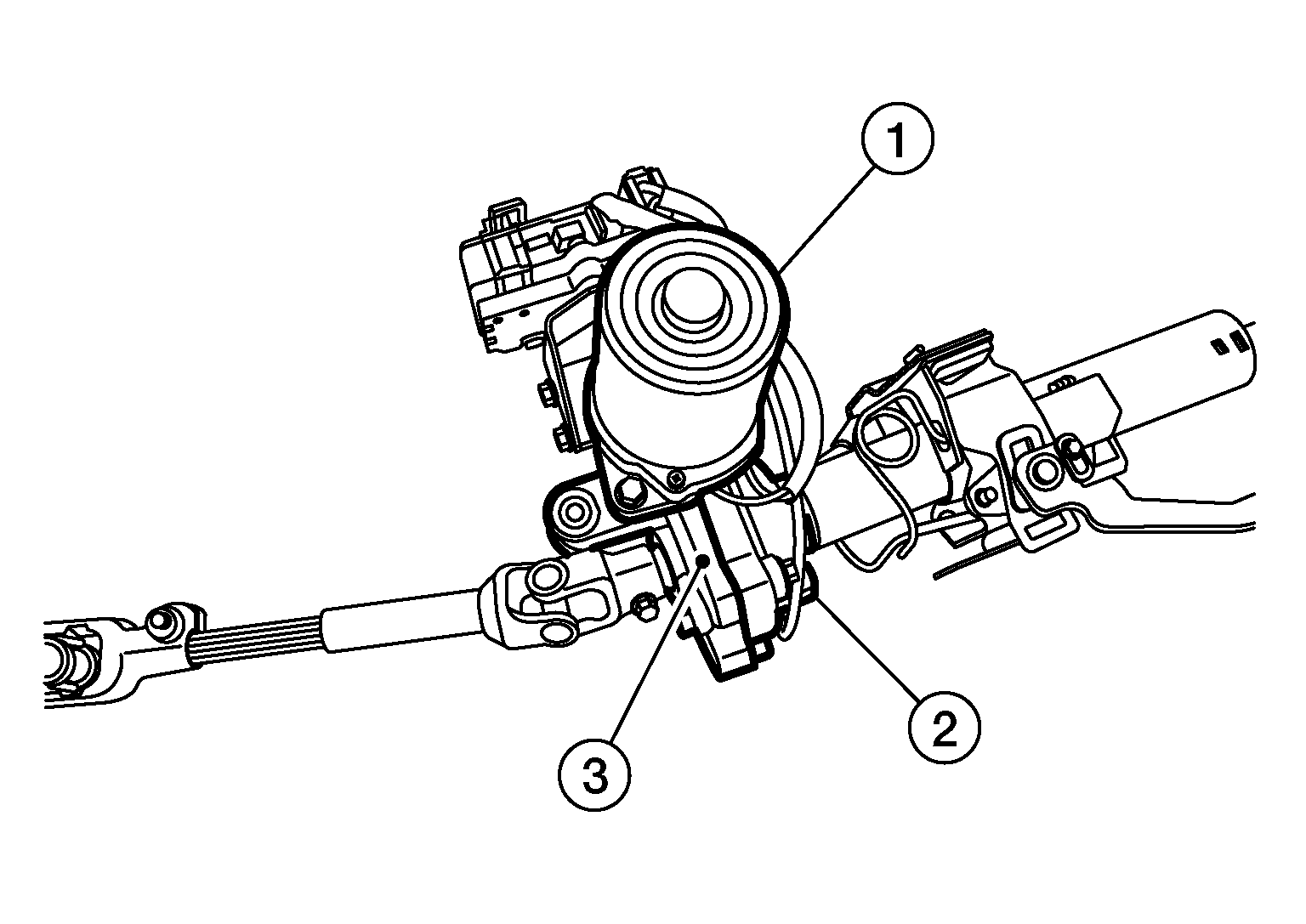

EPS motor (1), torque sensor (2) and reduction gear (3) are installed to steering column assembly.
EPS MOTOR
EPS motor provides assist torque in proportion to the control signal from the EPS control unit.
TORQUE SENSOR
Torque sensor detects the steering torque and transmits the signal to the EPS control unit.
REDUCTION GEAR
Reduction gear increases the assist torque provided from the EPS motor, and outputs to the column shaft.
