System Description

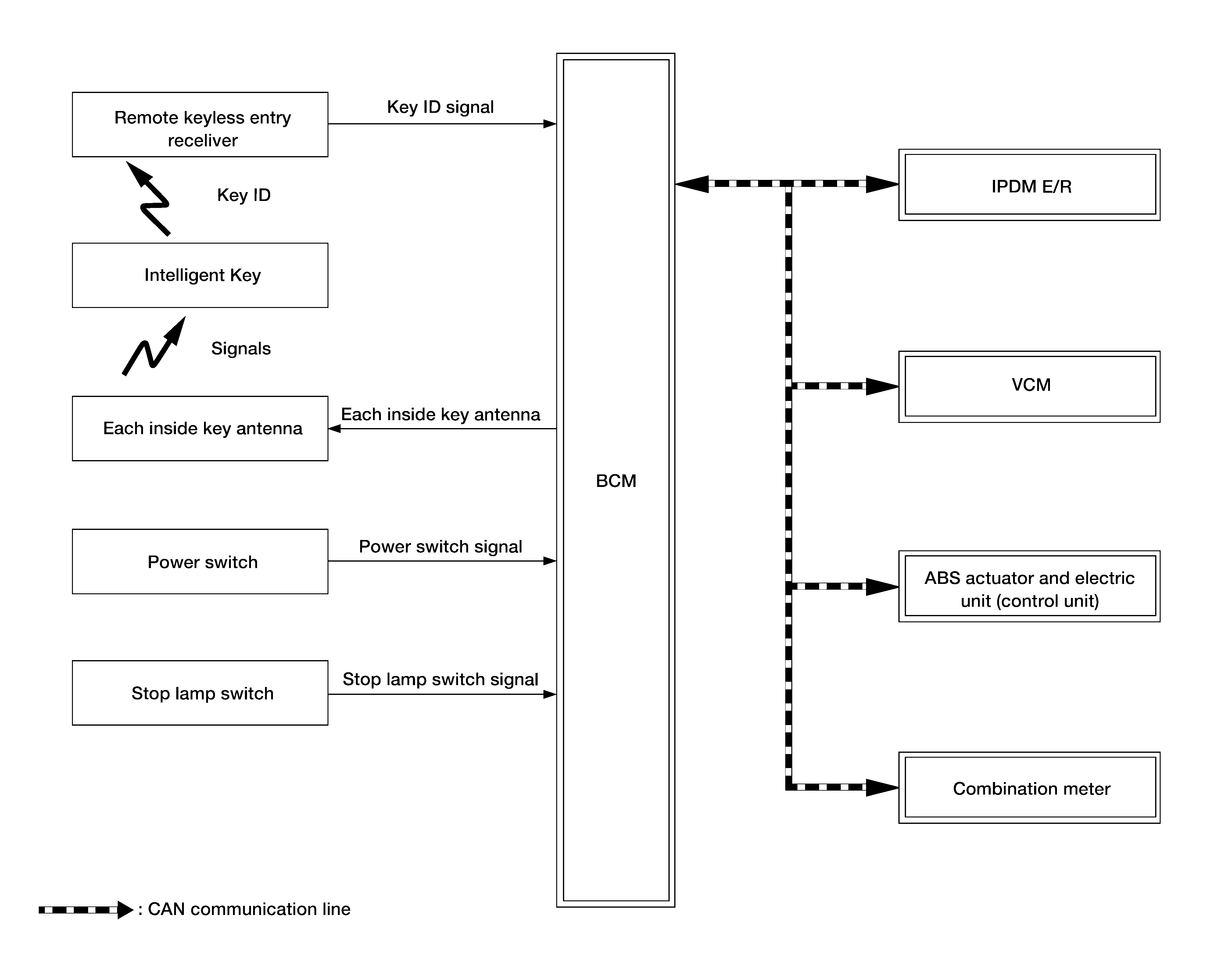

SYSTEM DIAGRAM

GNSDB56736Courtesy of NISSAN

INPUT/OUTPUT SIGNAL CHART

Input Signal Item

Transmit unit Signal name
VCM CAN communication ID verification signal/VCM status signal/READY set signal/Shift position signal
IPDM E/R Power switch status signal/P position signal
Combination meter Vehicle speed signal
ABS actuator and electric unit (control unit) Vehicle speed signal
Remote keyless entry receiver Key ID signal
Power switch Power switch operation signal
Stop lamp switch Brake pedal operation signal

Output Signal Item

Reception unit Signal name
Combination meter CAN communication Key warning lamp signal
VCM ID verification signal
READY signal
Inside key antenna Key ID request signal

SYSTEM DESCRIPTION

PRECAUTIONS FOR INTELLIGENT KEY SYSTEM

The transponder [the chip for NVIS (NATS) ID verification] is integrated into the Intelligent Key. Therefore, ID verification cannot be performed using mechanical key only. When Intelligent Key battery is discharged, the NVIS (NATS) ID verification can be performed by operating power switch after contacting Intelligent Key backside to power switch. If verification result is OK, the vehicle can be set to READY.

OPERATION WHEN INTELLIGENT KEY IS CARRIED

  1. When the power switch is pressed, BCM activates the inside key antenna and transmits the request signal to the Intelligent Key.
  2. The Intelligent Key receives the request signal and transmits the Intelligent Key ID signal to BCM.
  3. BCM receives the Intelligent Key ID signal via remote keyless entry receiver, and verifies it with the registered ID.
  4. BCM turns ACC relay ON and transmits ON power supply signal to IPDM E/R if the verification results are OK.
  5. IPDM E/R turns the ignition relay ON to start ON power supply.
  6. BCM detects that the shift position and brake pedal operating condition.
  7. BCM transmits READY signal to VCM if BCM judges that the READY set condition* is satisfied.

    *: For READY set condition, refer to "READY SET CONDITION TABLE BY POWER SWITCH OPERATION" below.

    NOTE: SYMBOL
    • If a malfunction is detected in the Intelligent Key system, "I-KEY system fault" on information display appears. In this case, BCM does not transmits READY signal.
    • When the Intelligent Key is carried outside of the vehicle (inside key antenna detection area) while the power switch position is ACC or ON, BCM does not transmits READY signal even if READY set condition* is satisfied.
  8. When BCM receives feedback signal from VCM indicating that the vehicle is set to READY, BCM stops transmitting READY signal.

OPERATION RANGE

Vehicle can be set to READY when Intelligent Key is inside the vehicle. However, sometimes vehicle may not be set to READY when Intelligent Key is on instrument panel or in glove box.

READY SET OPERATION WHEN INTELLIGENT KEY IS CONTACTED TO POWER SWITCH

When Intelligent Key battery is discharged, the NVIS (NATS) ID verification between transponder integrated into Intelligent Key and BCM is performed when Intelligent Key backside is contacted to power switch. If the verification result is OK, vehicle can be set to READY.

READY SET CONDITION TABLE BY POWER SWITCH OPERATION

The vehicle can be set to READY by the following operations. For details for the power supply position, refer to System Description .

NOTE: SYMBOL
  • When an Intelligent Key is within the detection area of inside key antenna and when Intelligent Key backside is contacted to power switch, it is equivalent to the operations below.
  • When setting the vehicle to READY, the BCM monitors READY set conditions:
    • Brake pedal operating condition
    • Shift position
    • Vehicle speed

Vehicle speed: less than 2.5 MPH (4 km/h)

  Vehicle condition Power switch operation frequency
Shift position Brake pedal operation condition
OFF → ACC - Not depressed 1
OFF → ACC → ON - Not depressed 2
OFF → ACC → ON → OFF - Not depressed 3
OFF → READY/ACC → READY/ON → READY P or N Depressed 1
READY → OFF - - 1

Vehicle speed: 2.5 MPH (4 km/h) or more

  Vehicle condition Power switch operation frequency
Shift position Brake pedal operation condition
READY → ACC - - Emergency stop operation
ACC → READY (Return operation after emergency stop operation while driving) N position - 1

Emergency stop operation
