Removal and Installation

REMOVAL

1. Remove center console finisher. Refer to Removal and Installation .

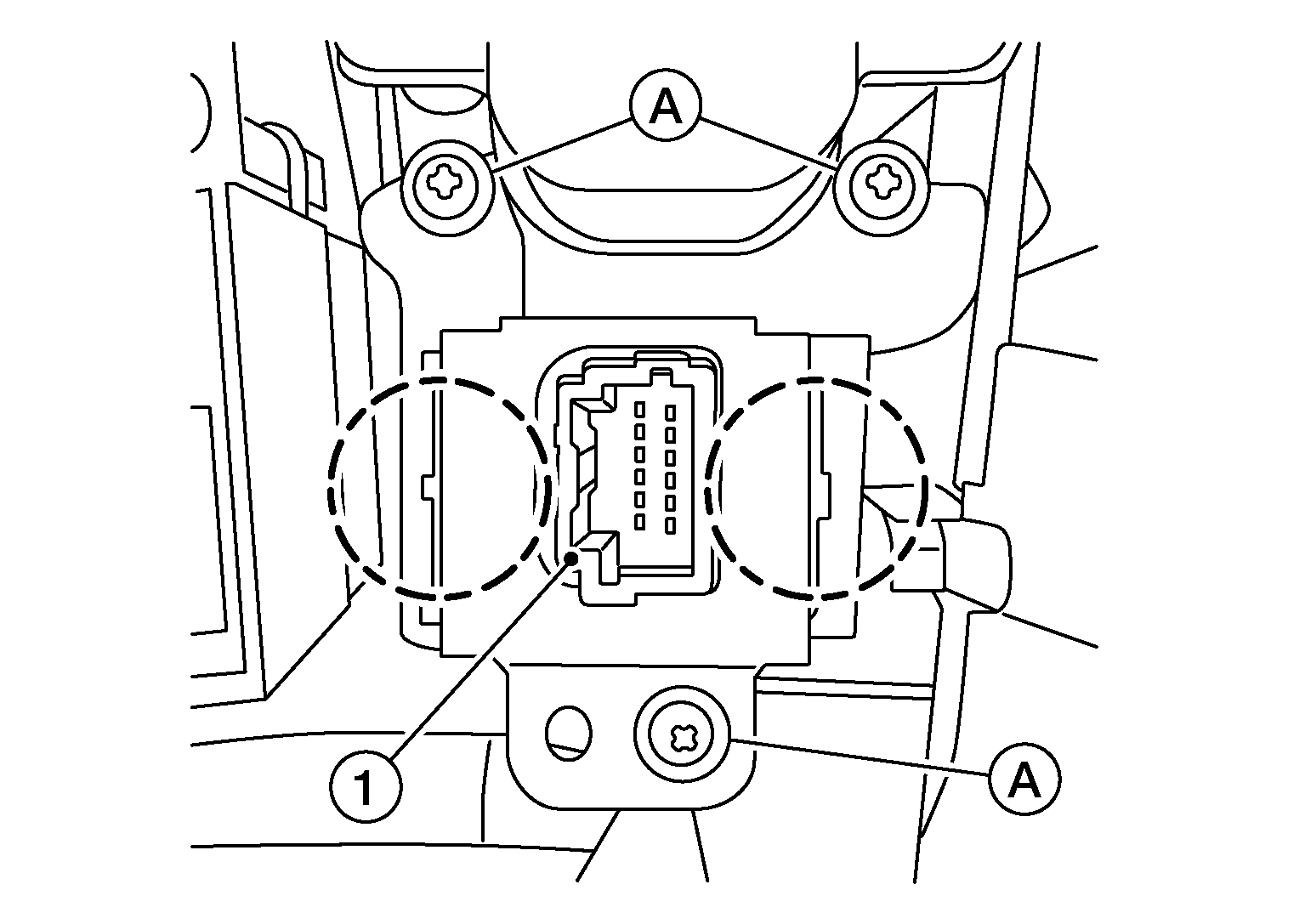

2. Remove screws (A) and release pawls using suitable tool. Remove drive mode selector (1) from center console finisher.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
