Reference Value

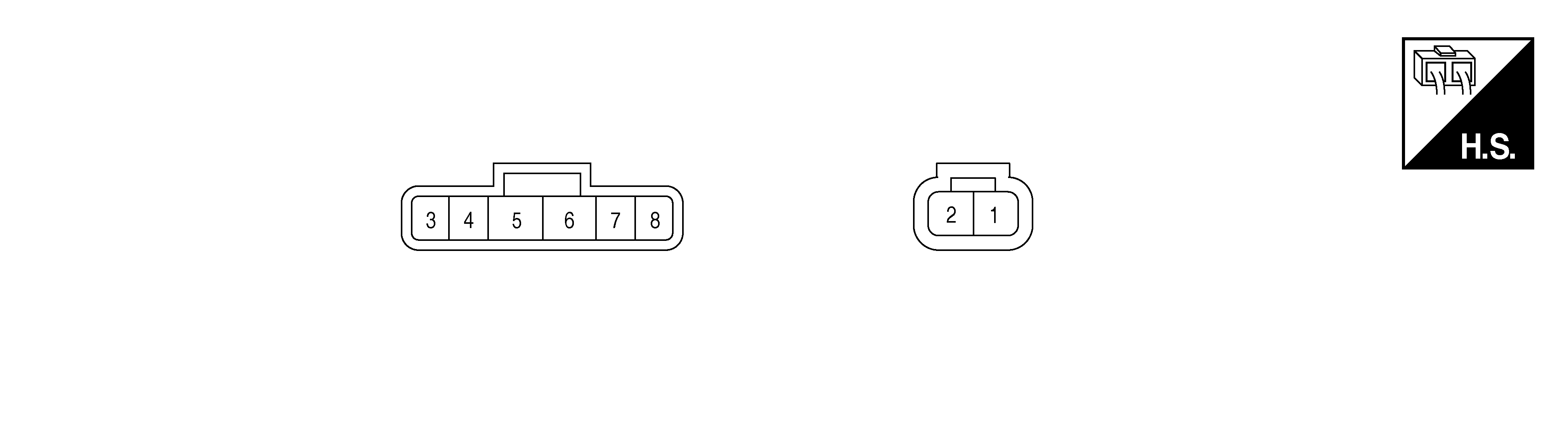

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No.(Wire Color) | Description | Condition | Value(Approx.) | ||
|---|---|---|---|---|---|
| (+) | (-) | Signal name | Input/Output | ||
| 1(W) | Ground | Battery power supply | Input | Always | Battery voltage |
| 2(B) | Ground | Ground | - | Always | 0 V |
| 5(BR) | Ground | Ignition power supply | Input | Ignition switch: ON | Battery voltage |
| Ignition switch: OFF | 0 V | ||||
| 7(P) | - | CAN-Low | Input/Output | - | - |
| 8(L) | - | CAN-High | Input/Output | - | - |
