Accelerator Control

Unit: mm (in)

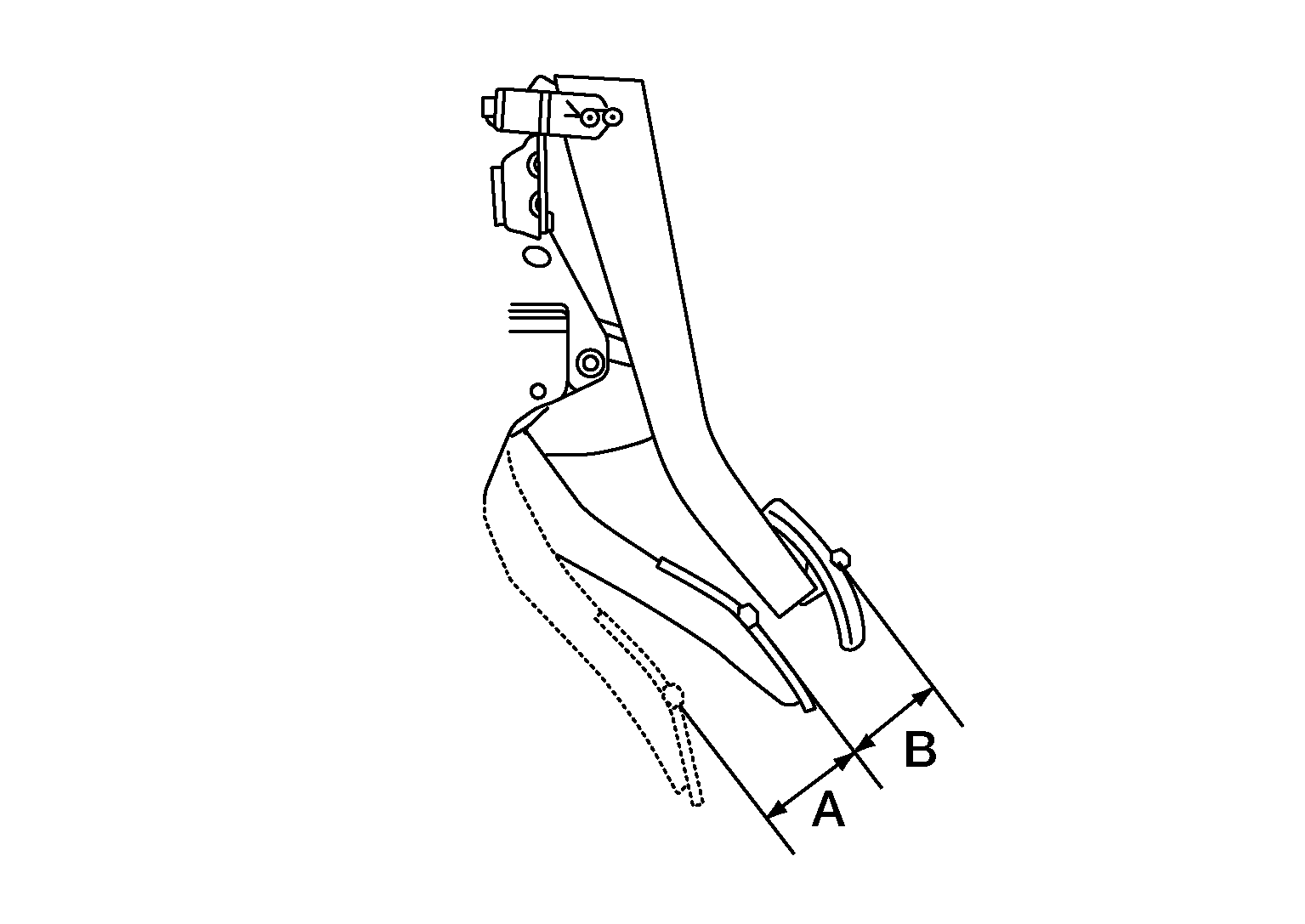

GNSDB53831Courtesy of NISSAN

Accelerator pedal stroke (A) 50.5 - 53.5 (1.99 - 2.11)
Pedal height difference between accelerator and brake (B) 35 - 45 (1.38 - 1.77)
