Exploded View

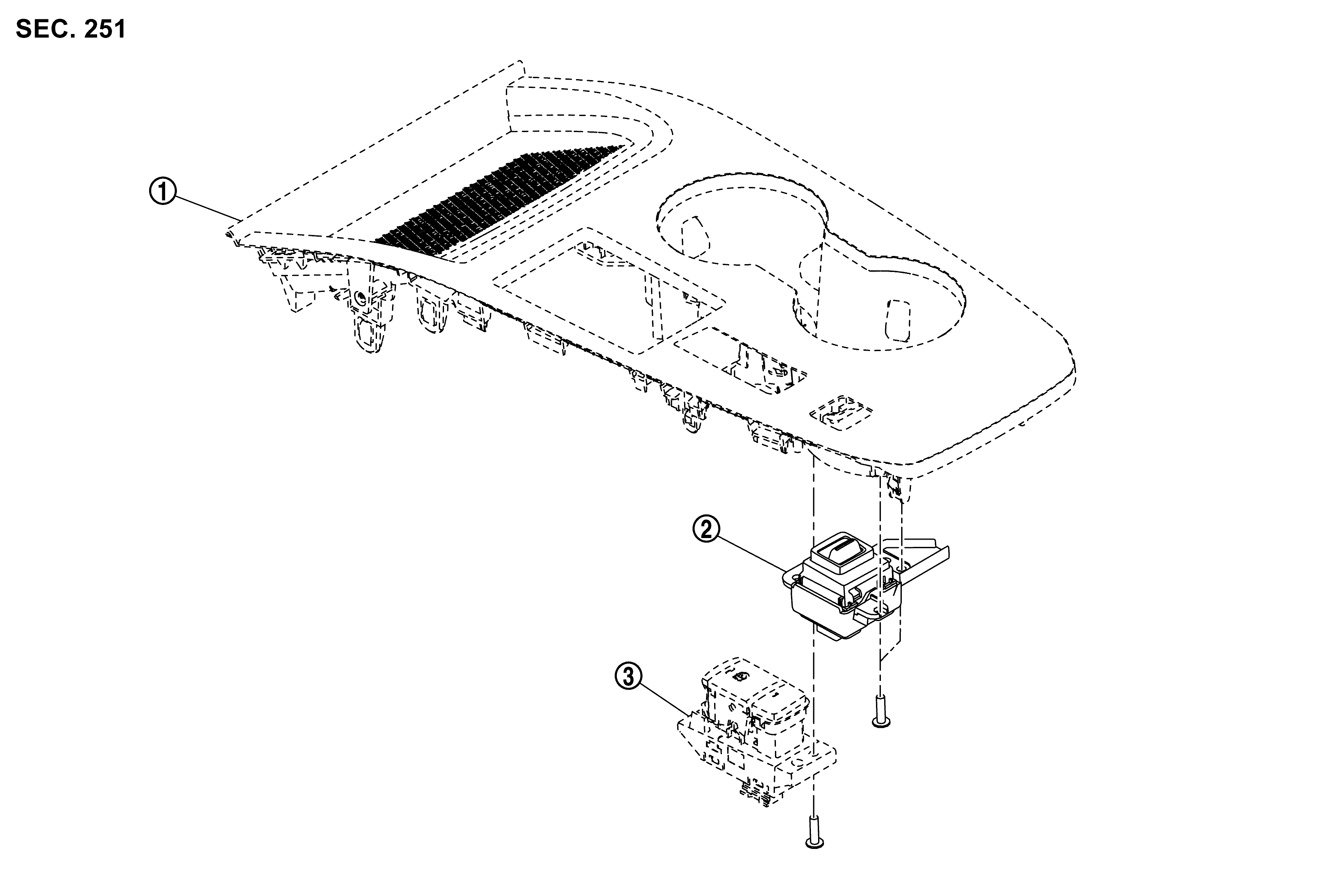

2WD MODELS

GNSDB32902Courtesy of NISSAN
SYMBOL Console finisher SYMBOL Drive mode select switch SYMBOL Parking brake switch

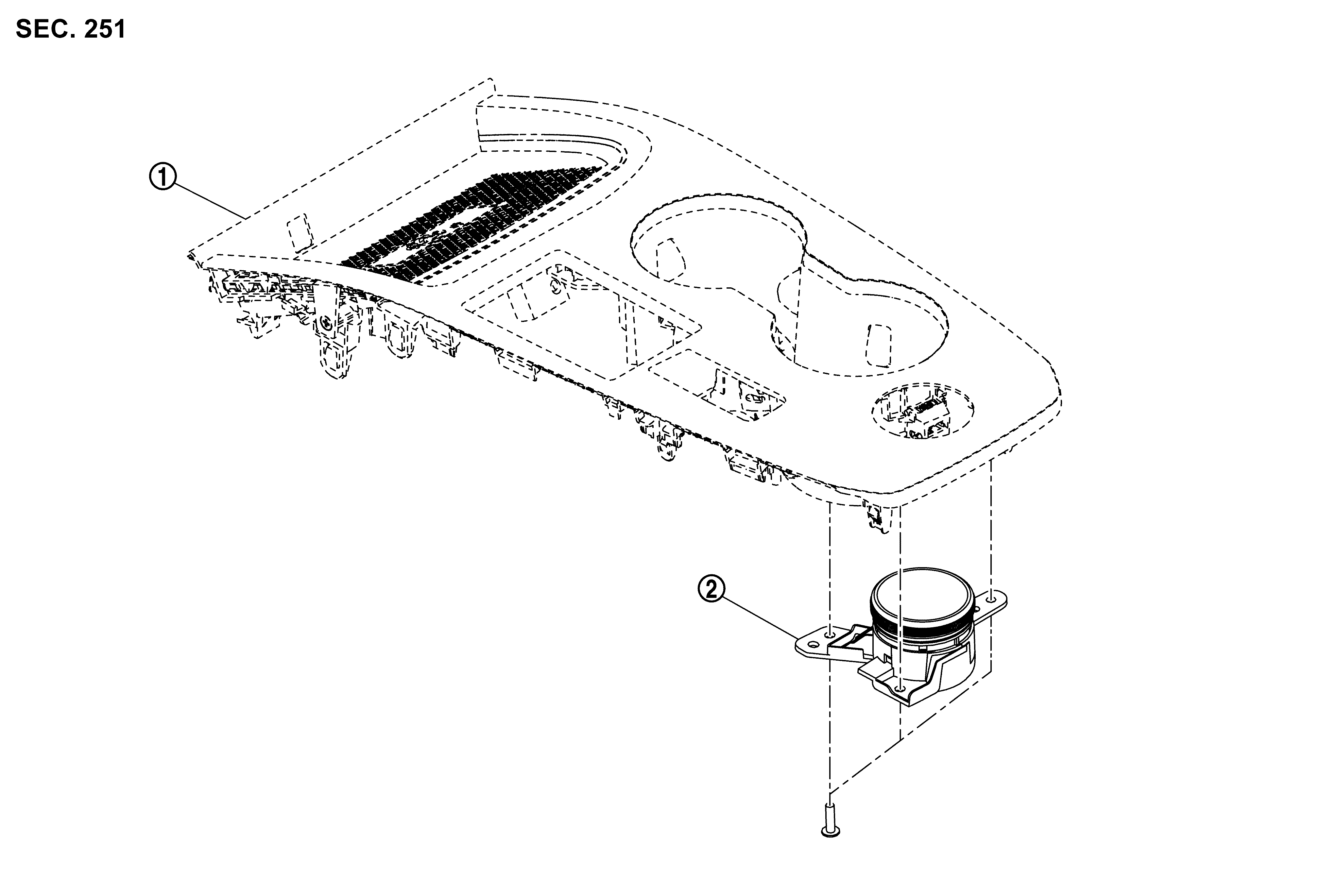

AWD MODELS

GNSDB34930Courtesy of NISSAN
SYMBOL Console finisher SYMBOL Drive mode select switch
