Removal and Installation

CAUTION:

CAUTION:  Use waste to protect parts potential to interfere from being scratched.

REMOVAL

  1. Remove console finisher. Refer to Removal and Installation .
  2. Remove parking brake switch. Refer to Removal and Installation .

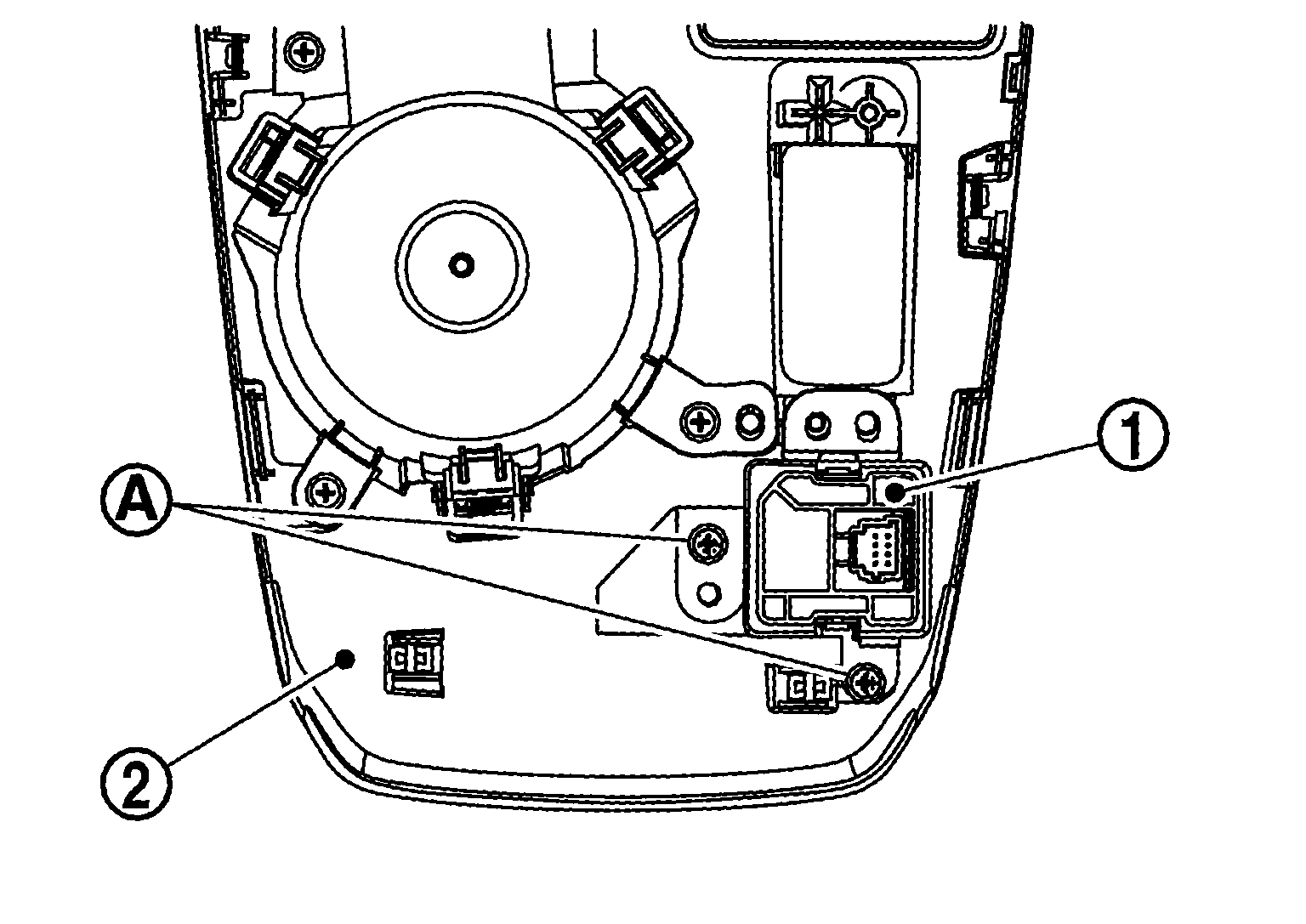

  3. Remove drive mode select switch fixing screws SYMBOL , and then remove drive mode select switch SYMBOL from console finisher SYMBOL . (2WD models)
    GNSDB37439Courtesy of NISSAN

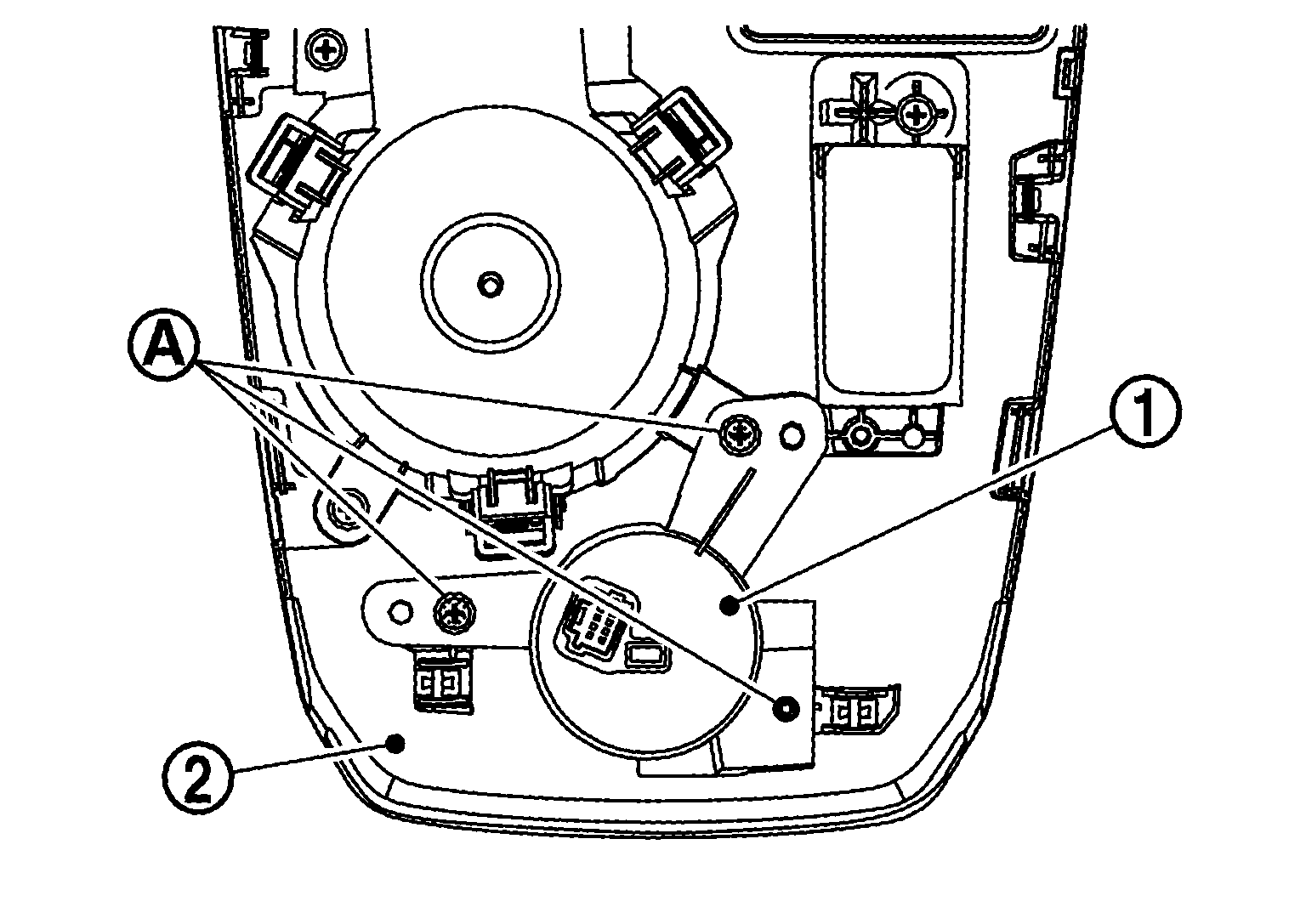

  4. Remove drive mode select switch fixing screws SYMBOL , and then remove drive mode select switch SYMBOL from console finisher SYMBOL . (AWD models)
    GNSDB36070Courtesy of NISSAN

INSTALLATION

Install in the reverse order of removal.
