STOP/START OFF SWITCH : Removal and Installation

REMOVAL

1. Remove the instrument lower panel LH. Refer to Removal and Installation .

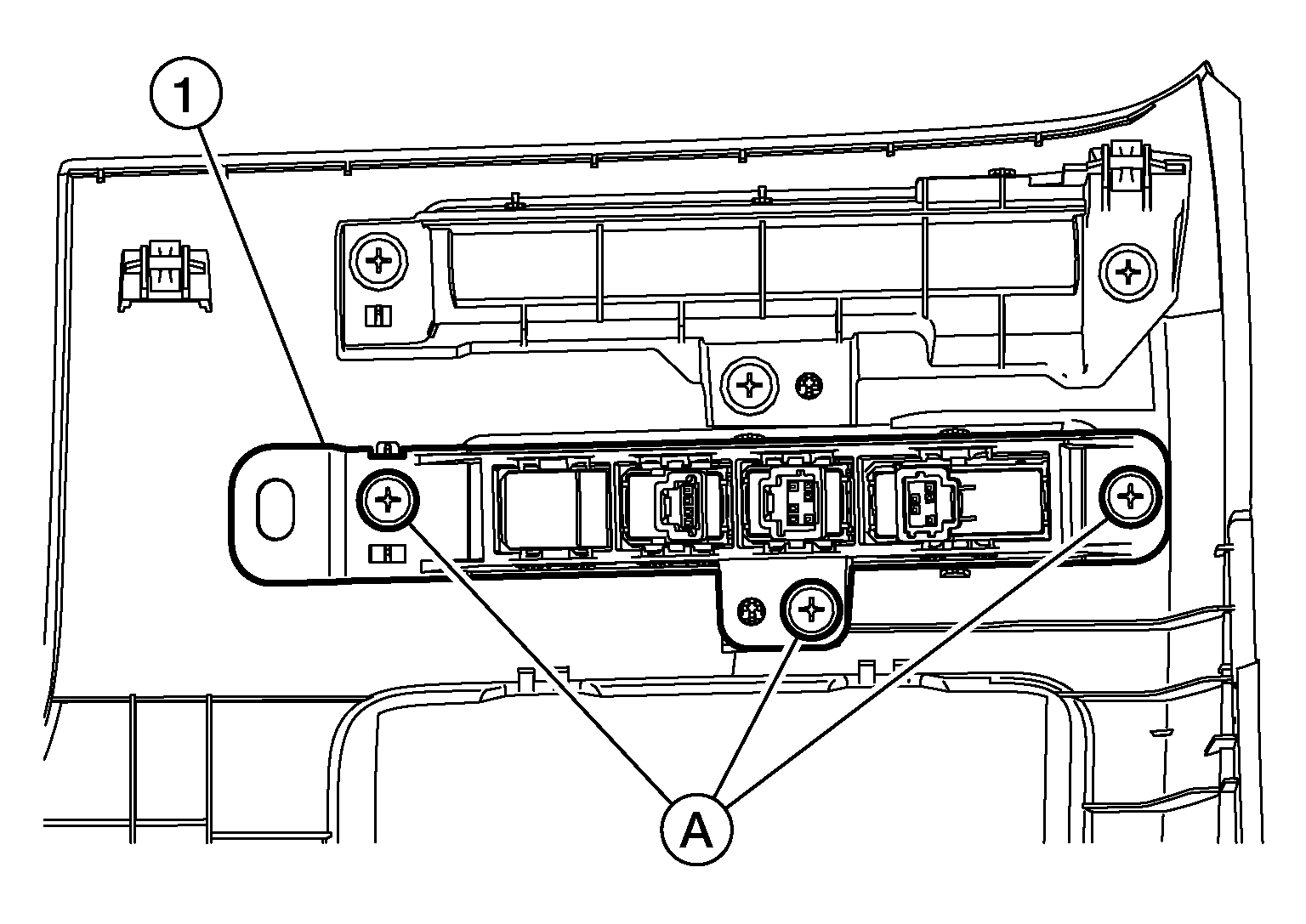

2. Remove screws (A), then remove switch bracket A (1) from the instrument lower panel LH.

   Courtesy of NISSAN

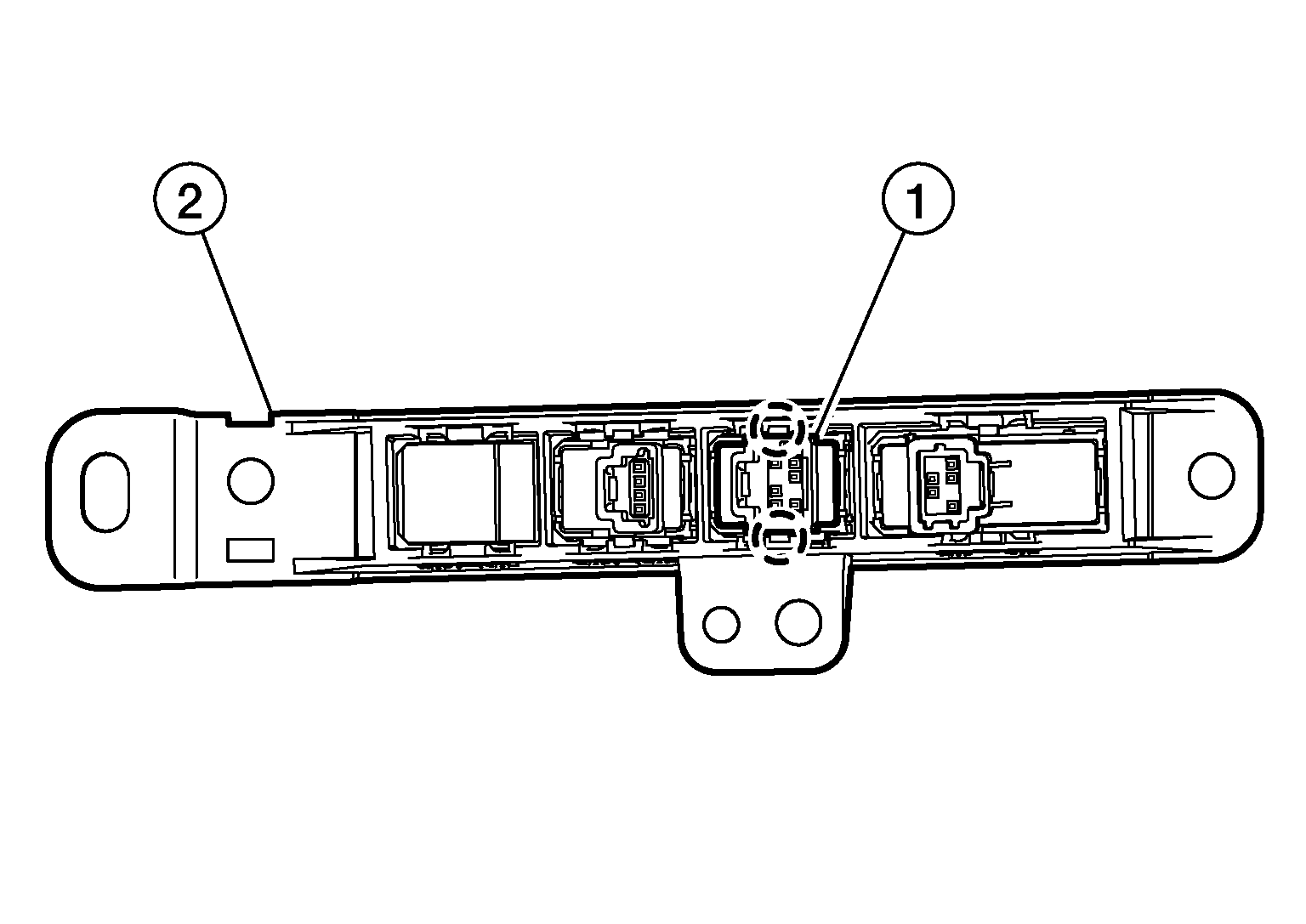

3. Release stop/start off switch pawls and remove stop/start off switch (1) from the switch bracket A (2).

   Courtesy of NISSAN

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
