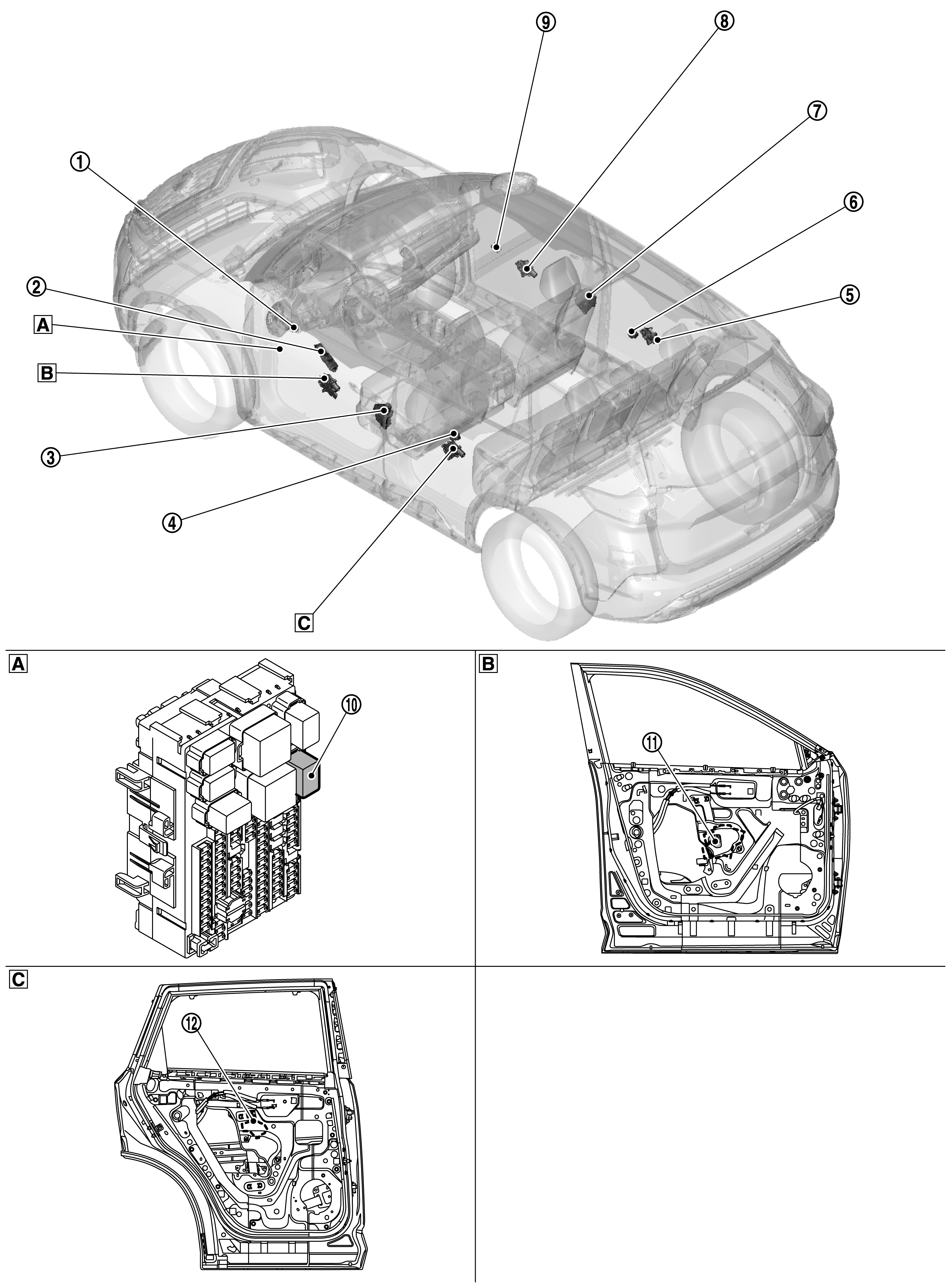

BCM (Body Control Module), Refer to Component Location
. |
 |
Power window main switch |
 |
Front door lock assembly LH (door switch) |
 |
Rear power window switch LH |
 |
Rear power window motor RH |
 |
Rear power window switch RH |
 |
Front door lock assembly RH (door switch) |
 |
Front power window motor (passenger side) |
 |
Front power window switch (passenger side) |
 |
Power window relay |
 |
Front power window motor (driver side) |
 |
Rear power window motor LH |
 |
Fuse block (J/B) |
 |
View with front door finisher removed |
 |
View with rear door finisher removed |
