ELECTRIC INTAKE VALVE TIMING CONTROL MODULE : Exploded View

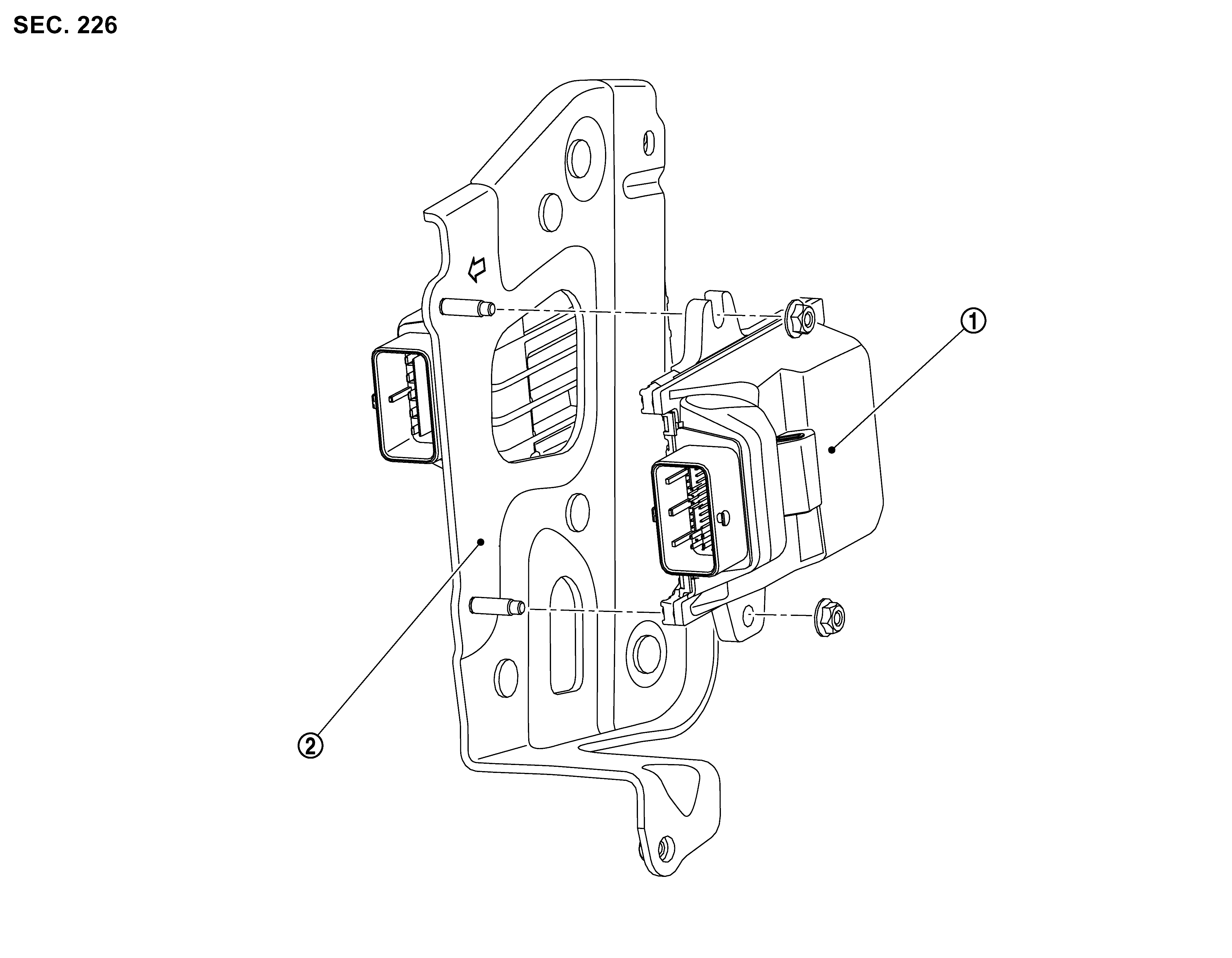

GNSDB37072Courtesy of NISSAN
1. Electric intake valve timing control module 2. Bracket
