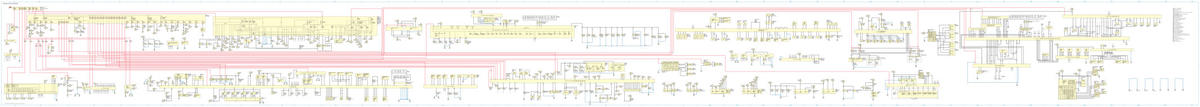

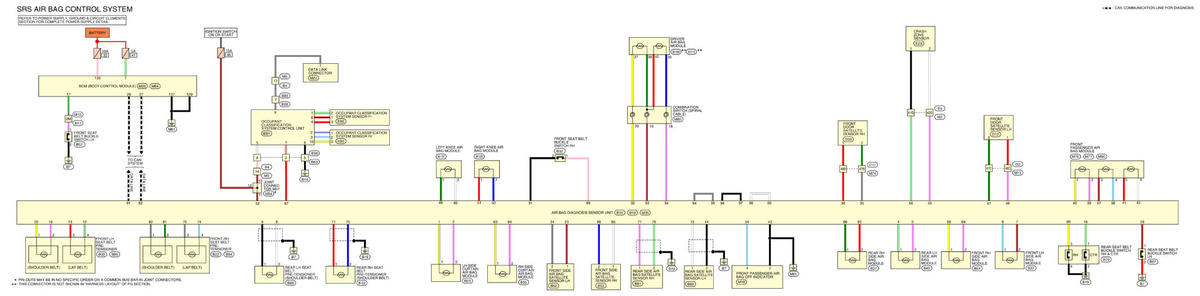

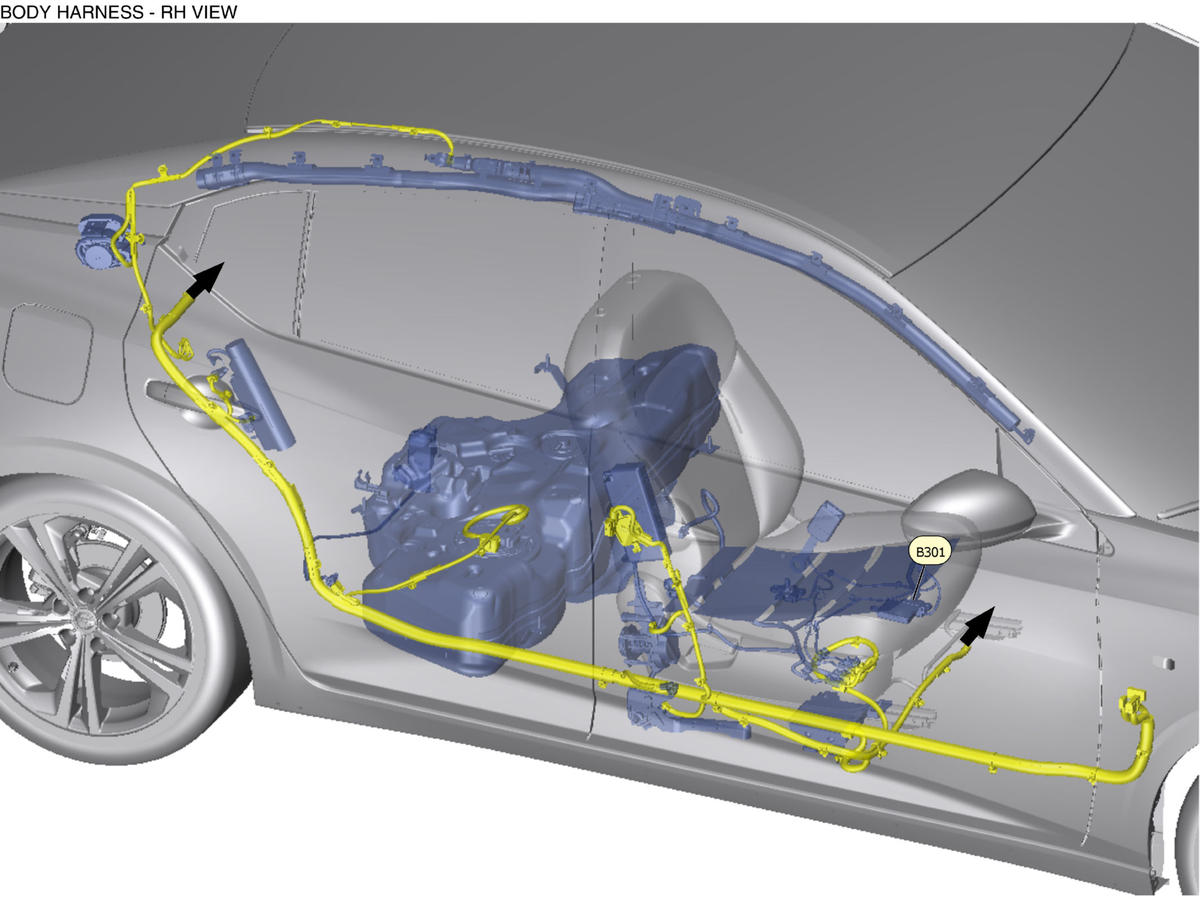

Occupant Classification System Control Unit Connector End View (B301)

Connector Types: RH10MB-X

Connector Color: BLACK

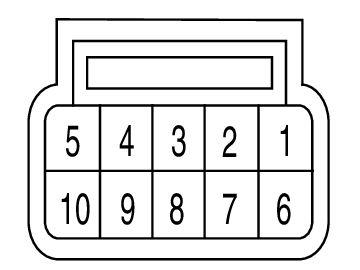

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	LG	LOAD SENSOR FRONT INNER SIGNAL
2	W/L	LOAD SENSOR REAR INNER GROUND
3	SB	LOAD SENSOR REAR INNER SIGNAL
4	R	LOAD SENSOR FRONT INNER VCC

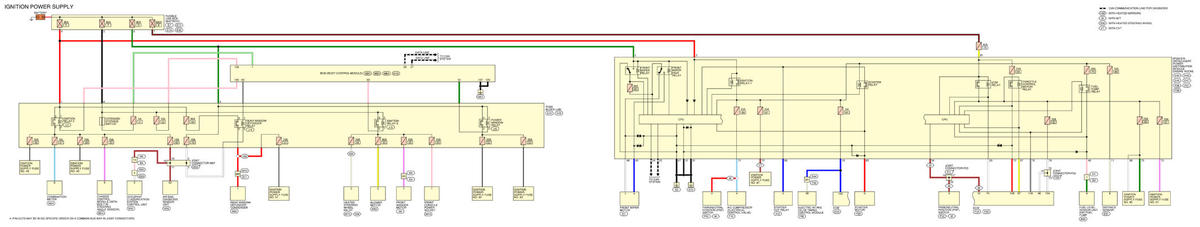

5	W	IGNITION

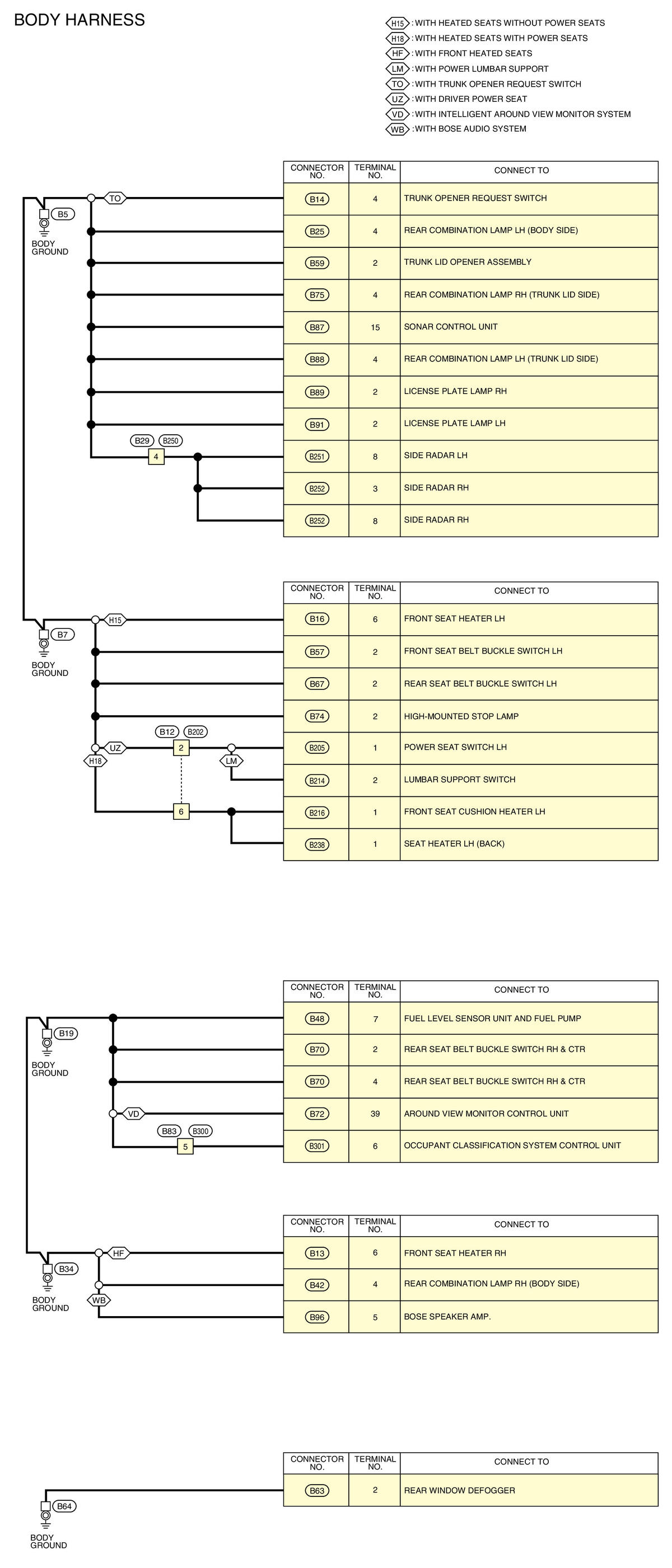

6	B	GROUND
7	BR/W	ACU COMM
8	R/B	LOAD SENSOR FRONT INNER GROUND

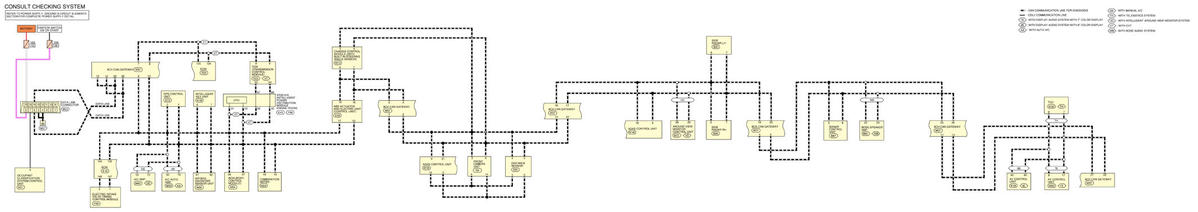

9	GR	K-LINE
10	Y	LOAD SENSOR REAR INNER VCC
