Exploded View

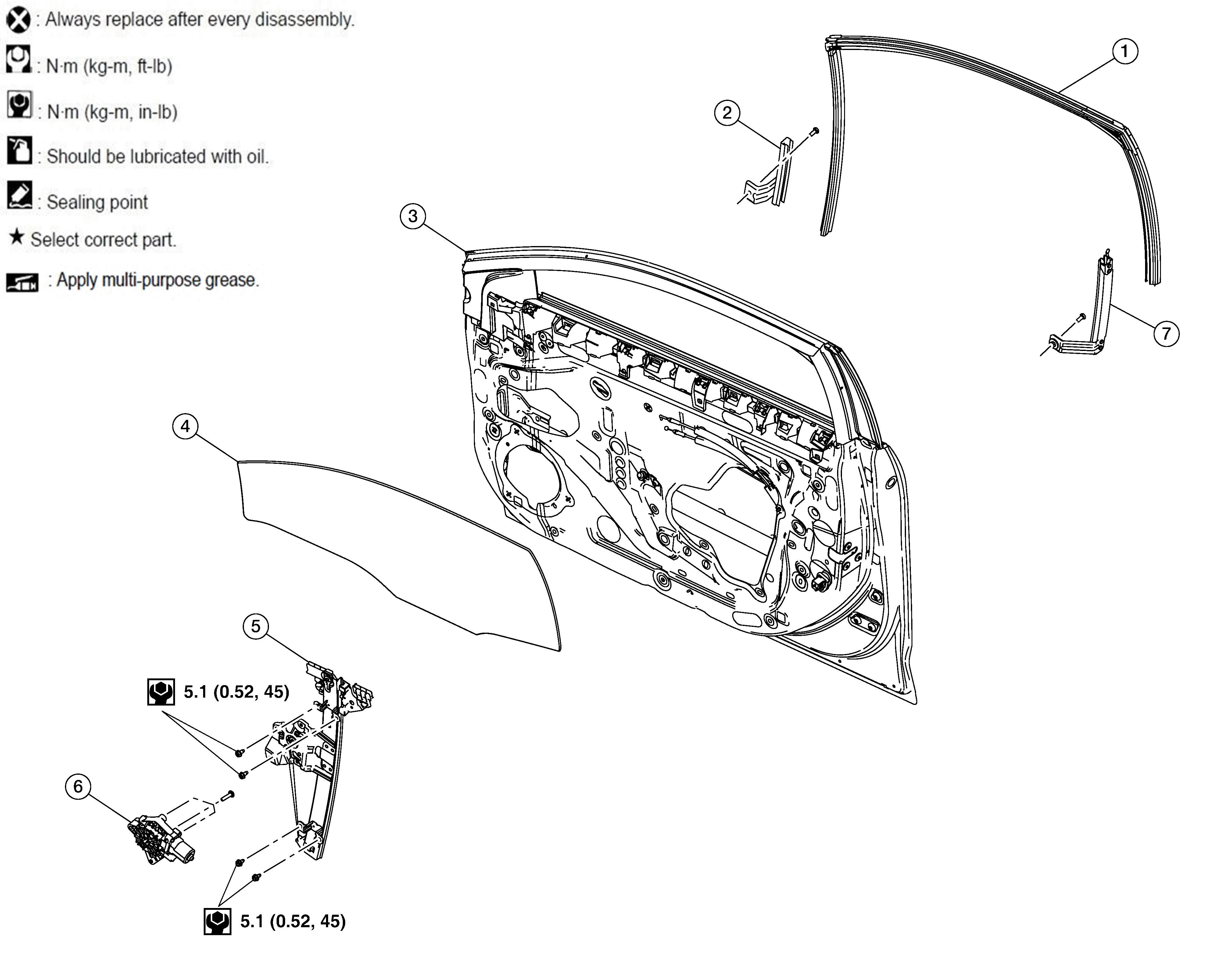

Fig 1: Front Regulator With Torque Specifications
GNSDB47701Courtesy of NISSAN
1. Door glass rubber run 2. Front door glass front run 3. Front door panel
4. Front door glass 5. Front door glass regulator 6. Front power window motor
7. Front door glass rear run
