Exploded View

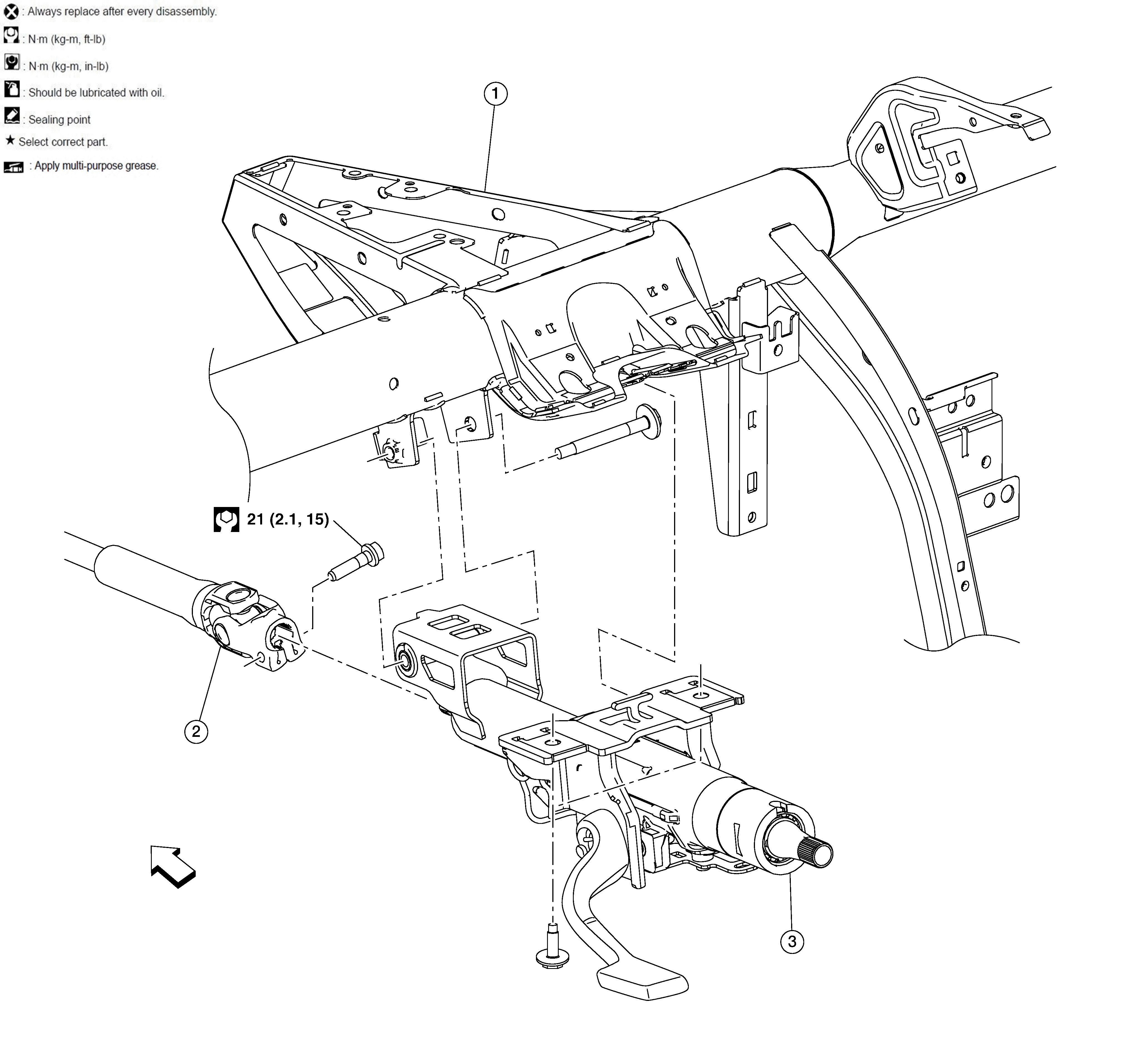

Fig 1: Steering Column With Torque Specifications
GNSDB47333Courtesy of NISSAN
1. Steering member 2. Lower joint 3. Steering column
SYMBOL Front
