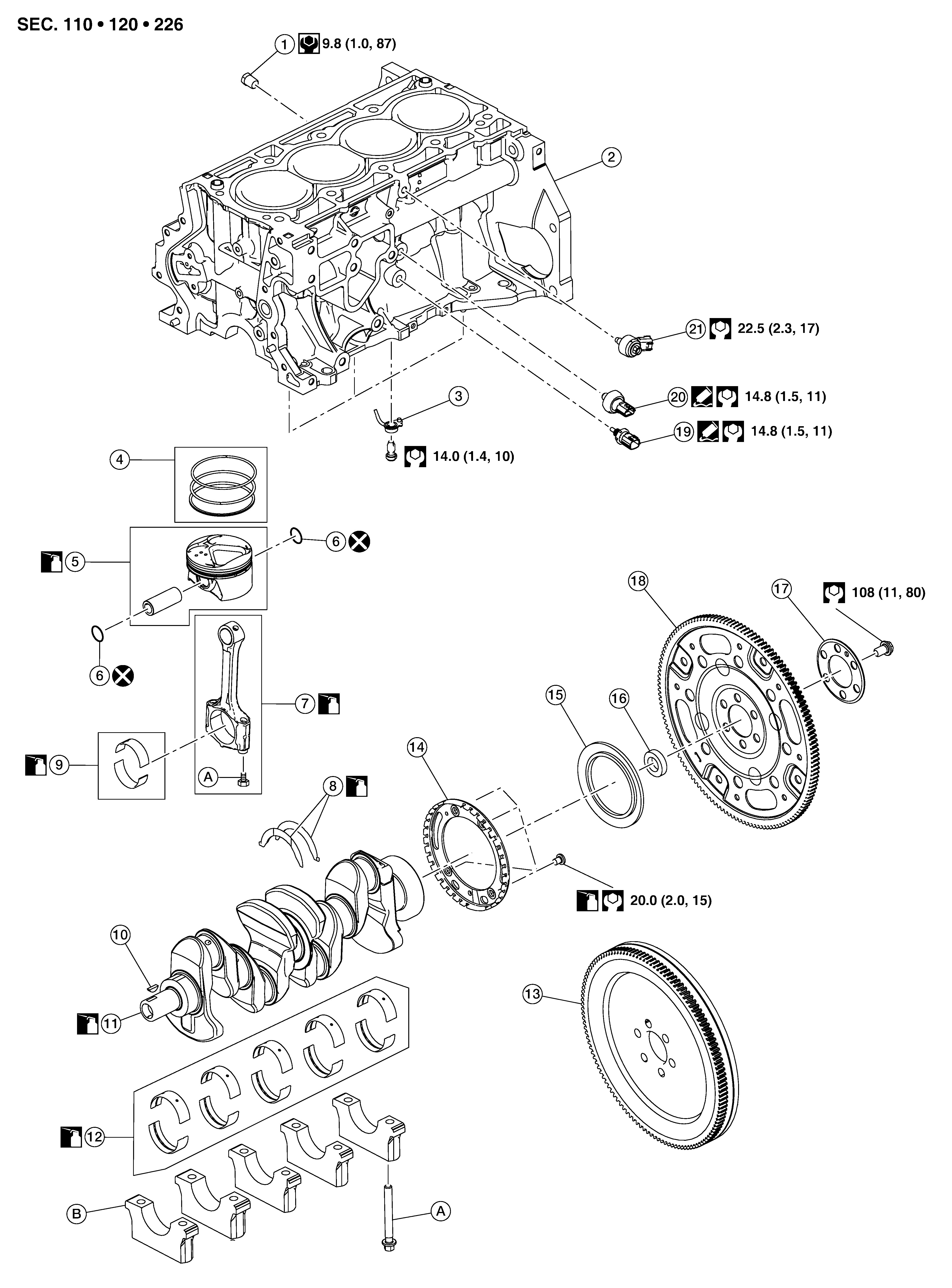

Exploded View
| 1. | Drain plug | 2. | Cylinder block | 3. | Oil jet |
| 4. | Piston rings | 5. | Piston | 6. | Circlip |
| 7. | Connecting rod | 8. | Thrust bearing | 9. | Connecting rod bearing |
| 10. | Crankshaft key | 11. | Crankshaft | 12. | Main bearings |
| 13. | Flywheel (M/T models) | 14. | Signal plate | 15. | Rear oil seal |
| 16. | Pilot converter (CVT models) | 17. | Drive plate (CVT models) | 18. | Drive plate reinforcement (CVT models) |
| 19. | Engine oil temperature sensor | 20. | Engine oil pressure sensor | 21. | Knock sensor |
| A. | Refer to Disassembly and Assembly . | B. | Main bearing cap | ||
CAUTION:
- Main bearing cap cannot be replaced individually, it is machined with the cylinder block and must be serviced as an assembly.
- Connecting rod cap cannot be replaced individually, it is machined with the connecting rod and must be serviced as an assembly.
- Main bearing (upper) and main bearing (lower) are serviced together.
- Connecting rod bearing (upper) and connecting rod bearing (lower) are serviced together.
