System Description

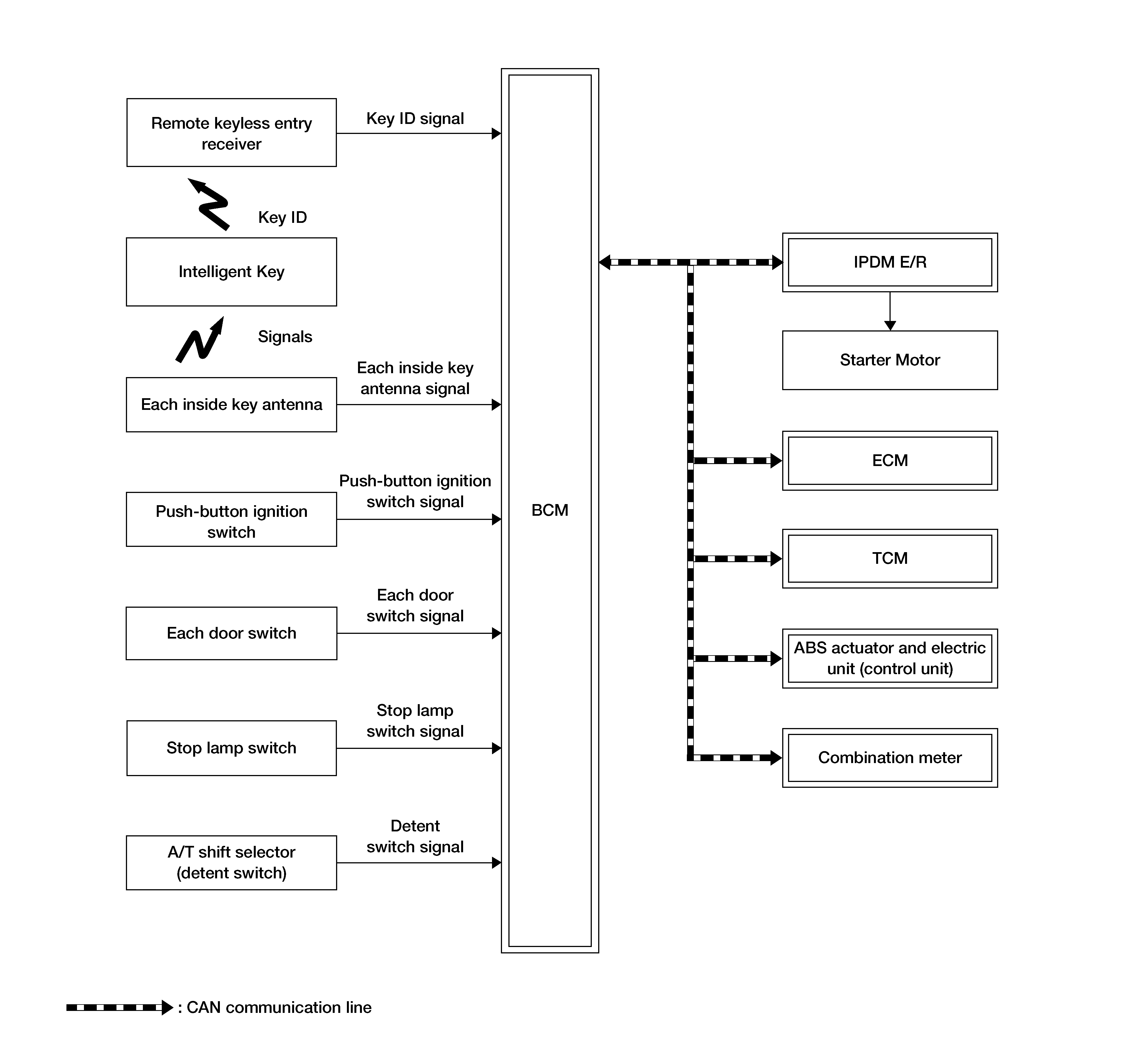

SYSTEM DIAGRAM

GNSDB50634Courtesy of NISSAN

INPUT SIGNAL AND OUTPUT SIGNAL CHART (CAN COMMUNICATION)

Signal name Input Output Description
Inside key antenna signal
  • ECM
  • TCM
  • IPDM E/R
BCM Inputs the key ID signal and transmits the engine start signal to the IPDM E/R via CAN communication
ID verification signal
  • ECM
  • TCM
  • IPDM E/R
BCM Inputs the ID verification signal via CAN communication
Engine status signal
  • BCM
  • TCM
  • IPDM E/R
  • Combination meter
  • ABS actuator and electric unit
ECM Inputs the engine status signal via CAN communication
Push-button ignition switch status signal
  • ECM
  • TCM
  • IPDM E/R
  • Combination meter
  • ABS actuator and electric unit
BCM Inputs the push-button ignition switch status signal via CAN communication
Shift position signal
  • ECM
  • TCM
  • IPDM E/R
  • Combination meter
  • ABS actuator and electric unit
BCM Inputs the shift position signal via CAN communication
Vehicle speed signal
  • ECM
  • TCM
  • IPDM E/R
  • Combination meter
  • BCM
ABS actuator and electric unit Inputs the vehicle speed signal via CAN communication
Door switch signal
  • IPDM E/R
  • Combination meter
BCM Inputs the door switch signal via CAN communication

SYSTEM DESCRIPTION

PRECAUTIONS FOR INTELLIGENT KEY SYSTEM

The transponder [the chip for IVIS (NATS) ID verification] is integrated into the Intelligent Key. In that case, the IVIS (NATS) ID verification can be performed when Intelligent Key backside is contacted to push-button ignition switch. If verification result is OK, engine can be started.

OPERATION WHEN INTELLIGENT KEY IS CARRIED

  1. When the push-button ignition switch is pressed, the BCM activates the inside key antenna and transmits the request signal to the Intelligent Key.
  2. The Intelligent Key receives the request signal and transmits the Intelligent Key ID signal to the BCM.
  3. BCM receives the Intelligent Key ID signal via remote keyless entry receiver and verifies it with the registered ID.
  4. Push-button ignition switch transmits the ignition power supply ON signal to IPDM E/R.
  5. IPDM E/R turns the ignition relay-1 ON and starts the ignition power supply.
  6. BCM detects the selector lever position and brake pedal operating condition.
  7. BCM transmits the starter request signal to IPDM E/R and turns the starter relay in IPDM E/R ON, if BCM judges that the engine start condition* is satisfied.
  8. IPDM E/R turns the starter control relay ON when receiving the starter request signal.
  9. Power supply is supplied through the starter relay and the starter control relay to operate the starter motor.
    CAUTION:

    If a malfunction is detected in the Intelligent Key system, the "KEY" warning lamp in the combination meter illuminates. At that time, the engine cannot be started.

  10. When BCM receives feedback signal from ECM indicating that the engine is started, the BCM transmits a stop signal to IPDM E/R and stops cranking by turning OFF the starter relay (If engine start is unsuccessful, cranking stops automatically within 5 seconds).
    CAUTION:

    When the Intelligent Key is carried outside of the vehicle (inside key antenna detection area) while the power supply is in the ACC or ON position, even if the engine start condition* is satisfied, the engine cannot be started.

*: For the engine start condition, refer to the table below "POWER SUPPLY POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERATION".

OPERATION RANGE

Engine can be started when Intelligent Key is inside the vehicle. However, sometimes engine may not start when Intelligent Key is on instrument panel or in glove box.

ENGINE START OPERATION WHEN INTELLIGENT KEY IS CONTACTED TO PUSH-BUTTON IGNITION SWITCH

When Intelligent Key battery is discharged, the IVIS (NATS) ID verification between transponder in Intelligent Key and BCM is performed when Intelligent Key backside is contacted to push-button ignition switch. If the verification result is OK, engine can be started.

POWER SUPPLY POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERATION

The power supply position changing operation can be performed with the following operations:

NOTE: SYMBOL
  • When an Intelligent Key is within the detection area of inside key antenna and when Intelligent Key backside is contacted to push-button ignition switch, it is equivalent to the operations below.
  • When starting the engine, the BCM monitors under the engine start conditions:
    • Brake pedal operating condition
    • Selector lever position
    • Vehicle speed

Vehicle speed: less than 4 km/h (2.5 MPH)

Power supply position Engine start/stop condition Push-button ignition switch operation frequency
Selector lever Brake pedal operation condition
LOCK -> ACC - Not depressed 1
LOCK -> ACC -> ON - Not depressed 2
LOCK -> ACC -> ON -> OFF - Not depressed 3
LOCK -> START/ACC -> START/ON -> START P or N position Depressed 1
Engine is running -> OFF - - 1

Vehicle speed: 4 km/h (2.5 MPH) or more

Power supply position Engine start/stop condition Push-button ignition switch operation frequency
Selector lever Brake pedal operation condition
Engine is running -> ACC - - Emergency stop operation
Engine stall return operation while driving N position Not depressed 1

Emergency stop operation:
