Removal and Installation

Exploded View

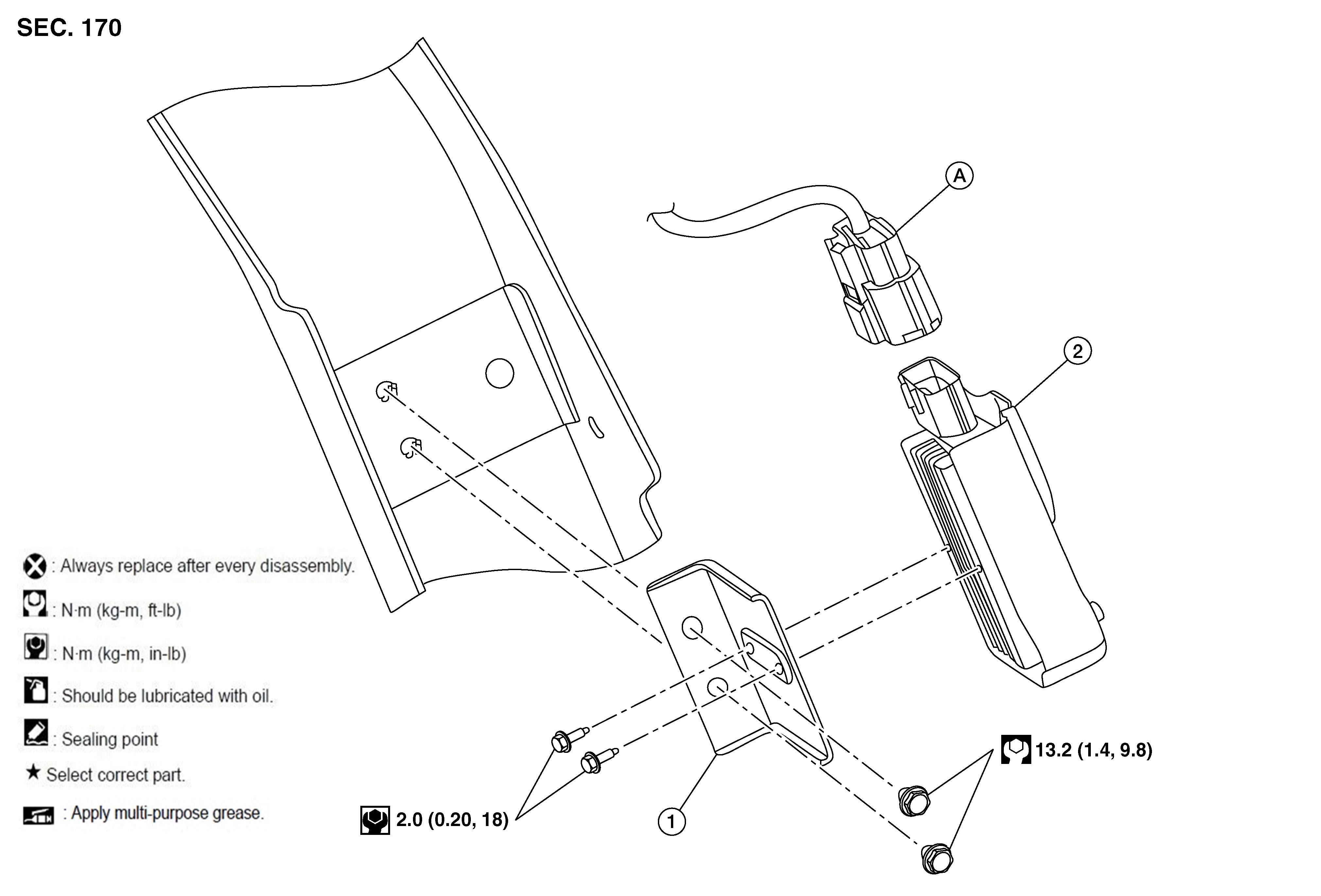

Fig 1: Fuel Pump Control Module (FPCM) With Torque Specifications

Courtesy of NISSAN

1.	Fuel pump control module bracket	2.	Fuel pump control module	A.	Harness connector
	Front

REMOVAL

1. Remove the rear wheel and tire (LH) using power tool. Refer to Removal and Installation .
2. Remove the rear fender protector (LH). Refer to Removal and Installation - Rear Fender Protector .
3. Disconnect the harness connector from fuel pump control module.
4. Remove bolts, and fuel pump control module and bracket assembly from vehicle.
5. Remove screws, and fuel pump control module from fuel pump control module bracket (if necessary).

INSTALLATION

Installation is in the reverse order of removal.
