Removal and Installation

Exploded View

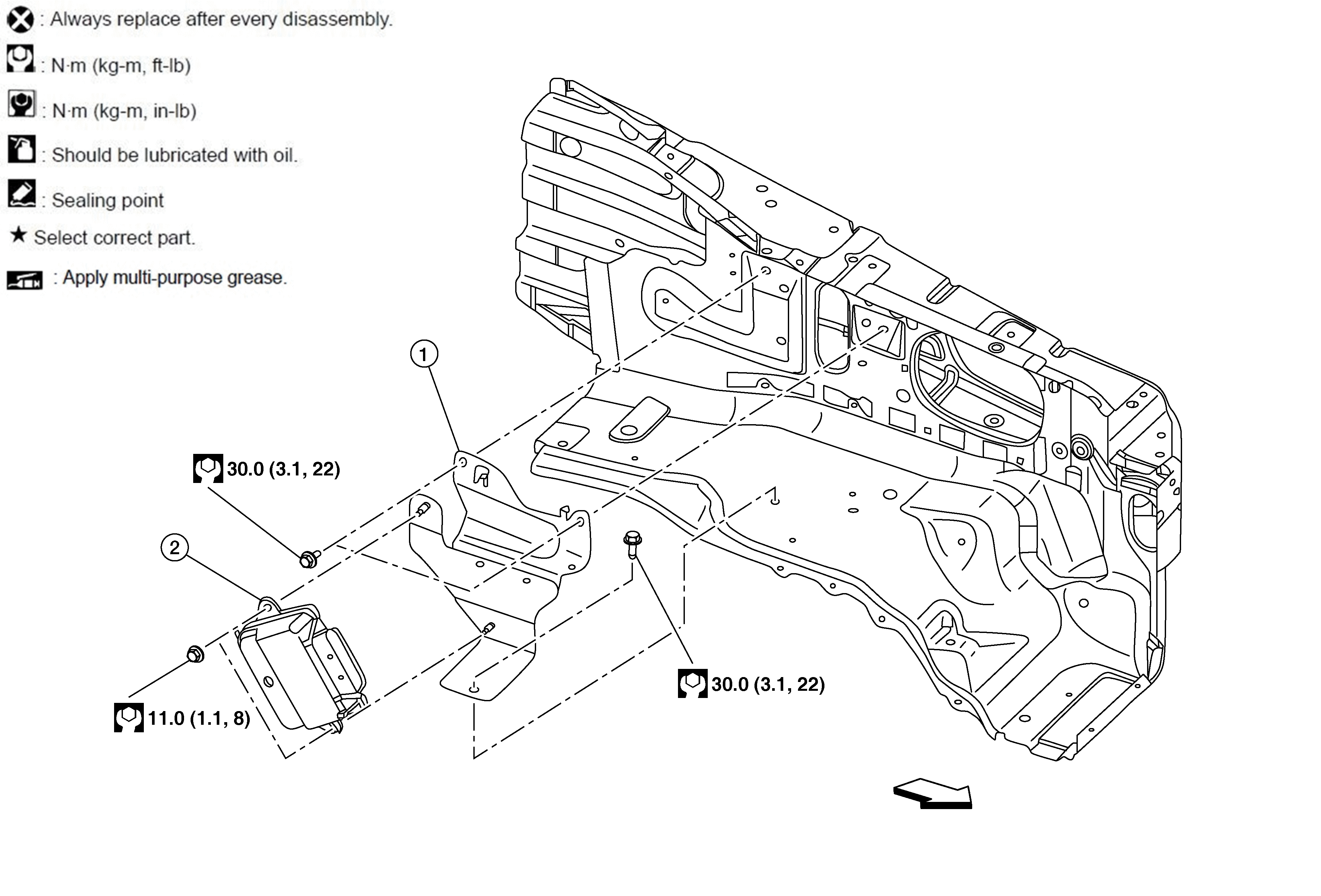

Fig 1: VVEL Control Module With Torque Specifications

Courtesy of NISSAN

VVEL control module bracket

VVEL control module

Front

REMOVAL

CAUTION:

If replacing the VVEL control module, perform "ADDITIONAL SERVICE WHEN REPLACING VVEL CONTROL MODULE". Refer to Description .

Remove the cowl top extension. Refer to Removal and Installation - Cowl Top Extension .
Disconnect the harness connector from the VVEL control module.
Remove nuts and VVEL control module.
Remove bolts and VVEL control module bracket (if necessary).

INSTALLATION

Installation is in reverse order of removal.

CAUTION:

If replacing the VVEL control module, perform "ADDITIONAL SERVICE WHEN REPLACING VVEL CONTROL MODULE". Refer to Description .
