Reference Value

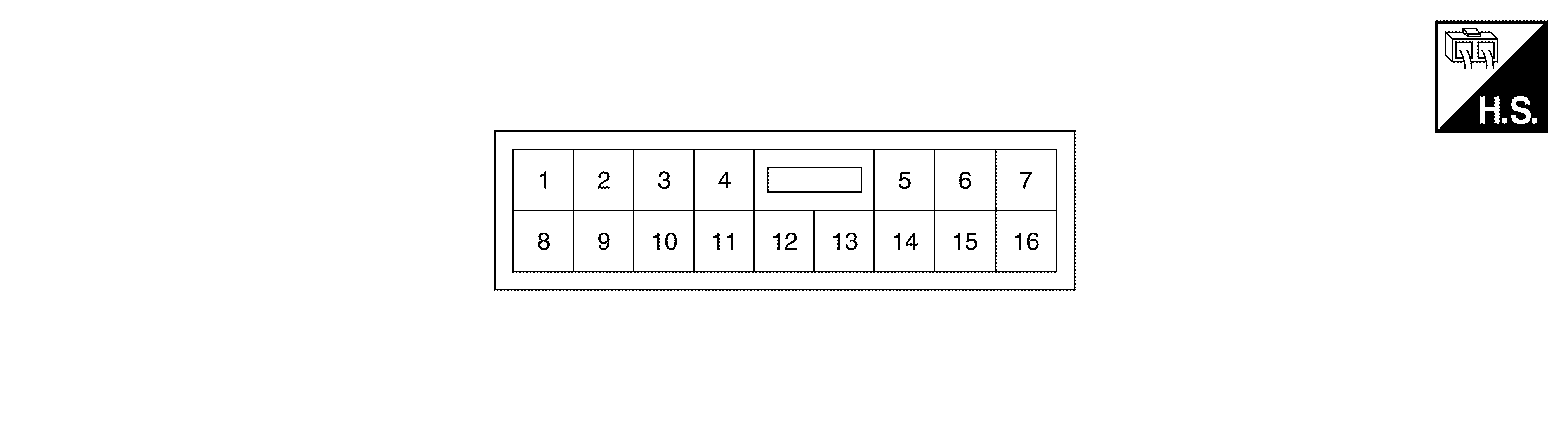

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No. (wire color) | Description | Condition | Value (Approx.) | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
| 1 (W) | Ground | Battery power supply | Input | - | 9 - 16 V | |
| 5 (BG) | Ground | Encoder power supply | Output | When ignition switch ON or power window timer operates | 9 - 16 V | |
| 8 (L) | Ground | Power window motor (driver side) UP signal | Output | Power window main switch | Operate (UP) | 9 - 16 V |
| Other than above | 0 - 1 V | |||||

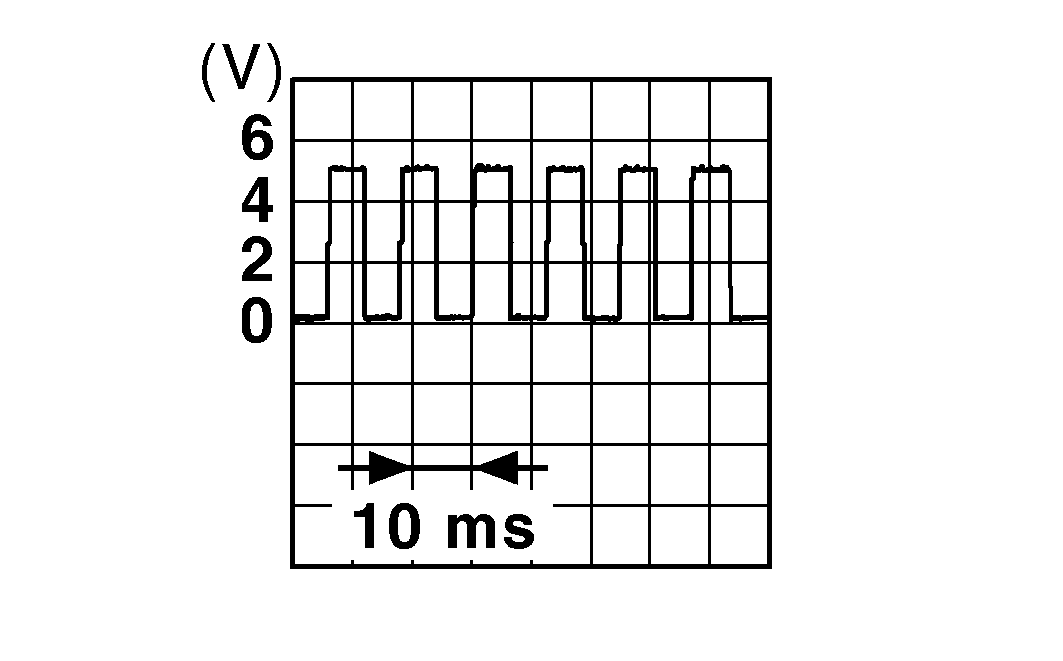

| 9 (LG) | Ground | Encoder pulse signal 2 | Input | When power window motor operates | ||
| 10 (Y) | Ground | Ignition power supply | Input | When ignition switch ON or power window timer operates | 9 - 16 V | |
| Ignition switch OFF | 0 - 1 V | |||||
| 11 (BR) | Ground | Power window motor (driver side) DOWN signal | Output | Power window main switch | Operate (DOWN) | 9 - 16 V |
| Other than above | 0 - 1 V | |||||

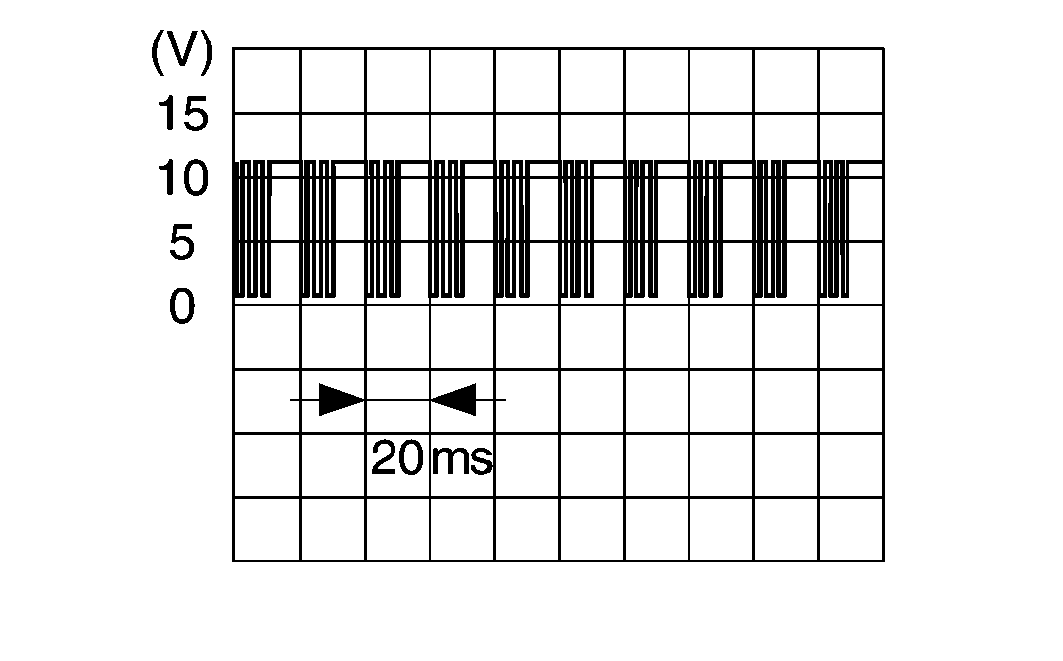

| 12 (SB) | Ground | Power window serial link | Input/Output | When ignition switch ON or power window timer operates | ||
| 13 (R) | Ground | Encoder pulse signal 1 | Input | When power window motor operates | ||
| 14 (G) | Ground | Encoder ground | Input | - | 0 - 1 V | |
| 15 (B) | Ground | Ground | - | - | 0 - 1 V | |
