Work Procedure

M/T Neutral Position Learning is a function in which ECM learns the shift lever neutral position by monitoring output voltage of gear lever position sensor. This must be performed when the following conditions are fulfilled.

• Gear lever position sensor is replaced
• ECM is replaced
• Shift position indicator "N" is blinking

1. START

   Do you have CONSULT '

   YES>>

   GO TO 2.

   NO>>

   GO TO 3.

2. PERFORM M/T NEUTRAL POSITION LEARNING

   With CONSULT

   1. Check that there is no sticking when shifting shift lever to the neutral position.
   2. Turn ignition switch ON.
   3. Select "M/T NEUTRAL POS LEARN" in "WORK SUPPORT" mode with CONSULT.
   4. Touch "Start" and wait a few seconds.
      NOTE: Never touch shift lever. Otherwise learning may not complete normally.
   5. Make sure the "COMPLETE" is displayed on CONSULT screen.
      NOTE: If "INCMP" is displayed, return to step 1 and repeat the procedures again.

   >>

   END

3. PERFORM M/T NEUTRAL POSITION LEARNING

   Without CONSULT

   NOTE:

   • It is better to count the time accurately with a clock.
   • It is impossible to switch the learning mode when a clutch interlock switch circuit has a malfunction.

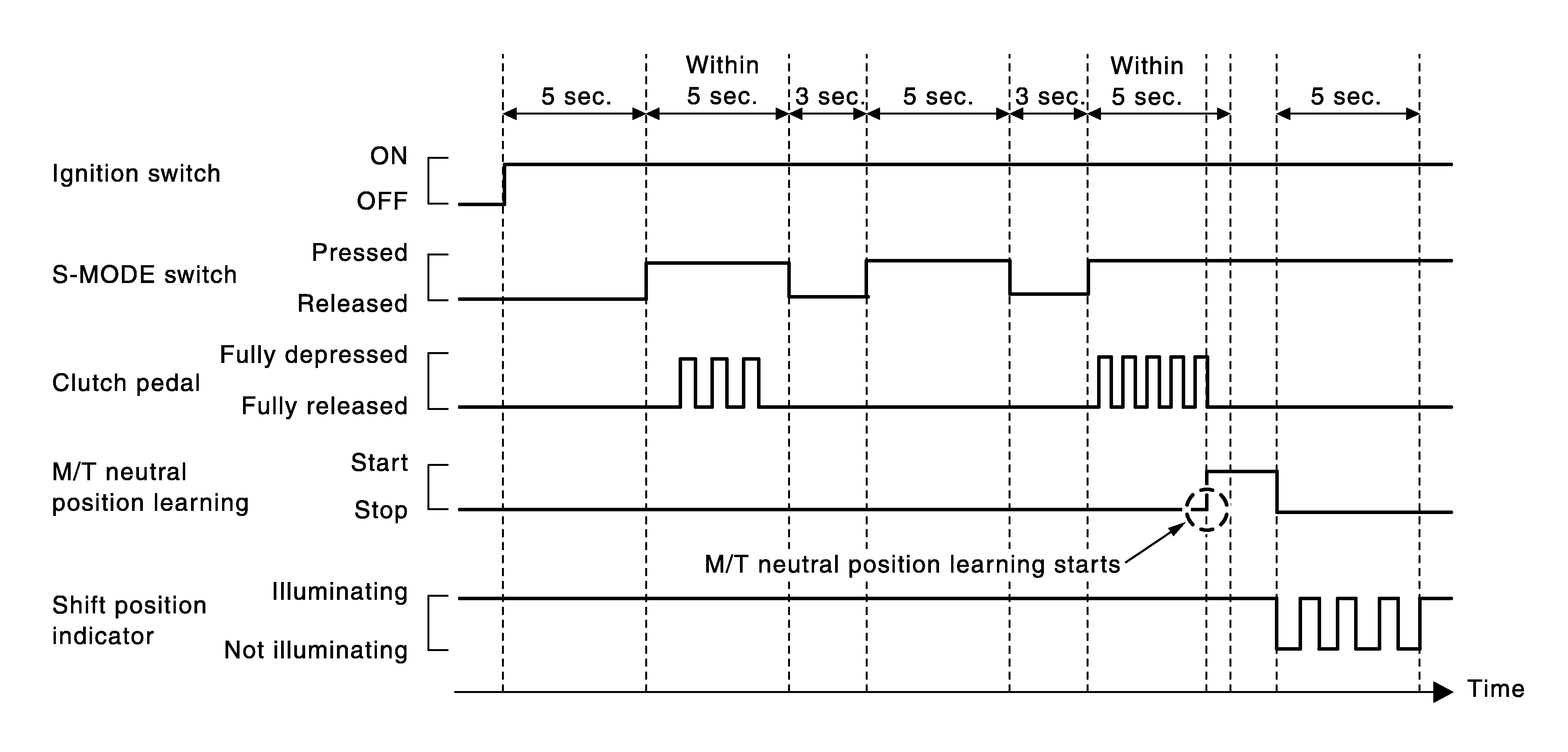

   1. Check that there is no sticking when shifting shift lever to the neutral position.
   2. Turn ignition switch ON and wait 5 seconds.
   3. Within 5 seconds repeat the following operation 3 times. Fully depress and fully release clutch pedal while pressing and holding S-MODE switch.
   4. Wait 3 seconds while S-MODE switch is released.
   5. Wait 5 seconds while pressing S-MODE switch.
   6. Wait 3 seconds while S-MODE switch is released.
   7. Within 5 seconds repeat the following operation 5 times. Fully depress and fully release clutch pedal while pressing and holding S-MODE switch. ECM starts M/T Neutral Position Learning.
      NOTE: Never touch shift lever. Otherwise learning may not complete normally.

      Courtesy of NISSAN NORTH AMERICA, INC.

   8. Shift position indicator on combination meter blinks for 5 seconds when the leaning is complete.
      NOTE: If shift position indicator does not blink or blinks continuously, return to step 1 and repeat the procedures again.

   >>

   END
