Physical Values

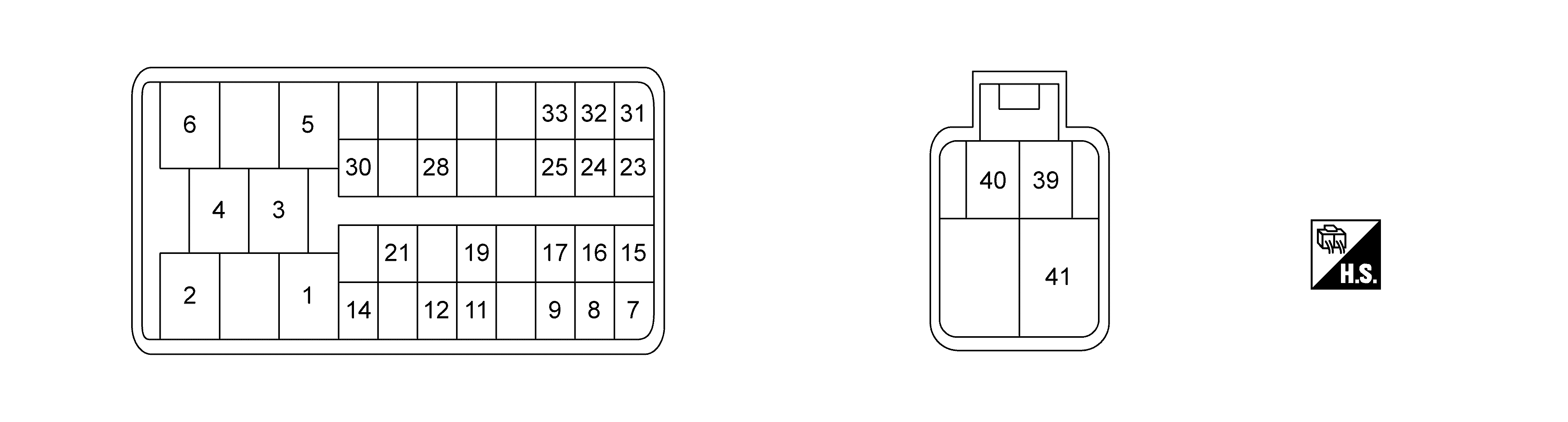

TERMINAL LAYOUT
PHYSICAL VALUES
NOTE:

- Electric intake valve timing control module is located behind the IPDM E/R. For this inspection, remove hood ledge cover (RH).
- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT.
| Terminal No. | Description | Condition | Value (Approx.) | ||
|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | ||
| 1 (W) | 41 (B) | Electric intake valve timing control motor 1 phase 1 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 2 (B) | 41 (B) | Electric intake valve timing control motor 2 phase 1 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 3 (R) | 41 (B) | Electric intake valve timing control motor 1 phase 2 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 4 (W) | 41 (B) | Electric intake valve timing control motor 2 phase 2 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 5 (B) | 41 (B) | Electric intake valve timing control motor 1 phase 3 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 6 (R) | 41 (B) | Electric intake valve timing control motor 2 phase 3 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 7 (Y) | 41 (B) | Sensor power supply | - | [Ignition switch: ON] | 5 V |
| 8 (W) | 41 (B) | Electric intake valve timing control motor 1 hall sensor 1 | Input | [Engine is running]
|
5 V |
| 9 (BG) | 41 (B) | Electric intake valve timing control motor 1 temperature sensor | Input | [Engine is running]
|
1.0 - 2.0 V |
| 11 (B) | - | Shield | - | - | - |
| 12 (L) | 41 (B) | ENGINE communication line-H | Input/Output | - | - |

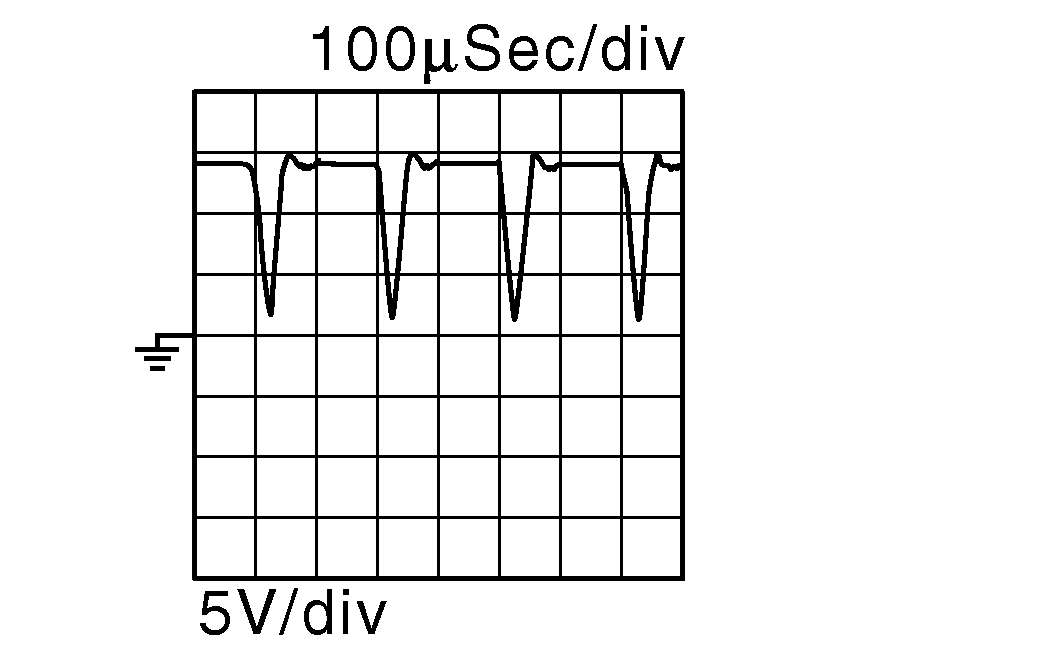

| 14 (Y) | 41 (B) | Intake camshaft position sensor (bank 1) [electric intake valve timing control signal] | Input | [Engine is running]
|
3.8 V |
[Engine is running]
|
3.8 V |
||||
| 15 (G) | 41 (B) | Electric intake valve timing control motor 1 hall sensor 3 | Input | [Engine is running]
|
5 V |
| 16 (R) | 41 (B) | Electric intake valve timing control motor 1 hall sensor 2 | Input | [Engine is running]
|
5 V |
| 17 (B) | - | Sensor ground | - | - | - |
| 19 (Y) | - | ENGINE communication line-L | Input/Output | - | - |

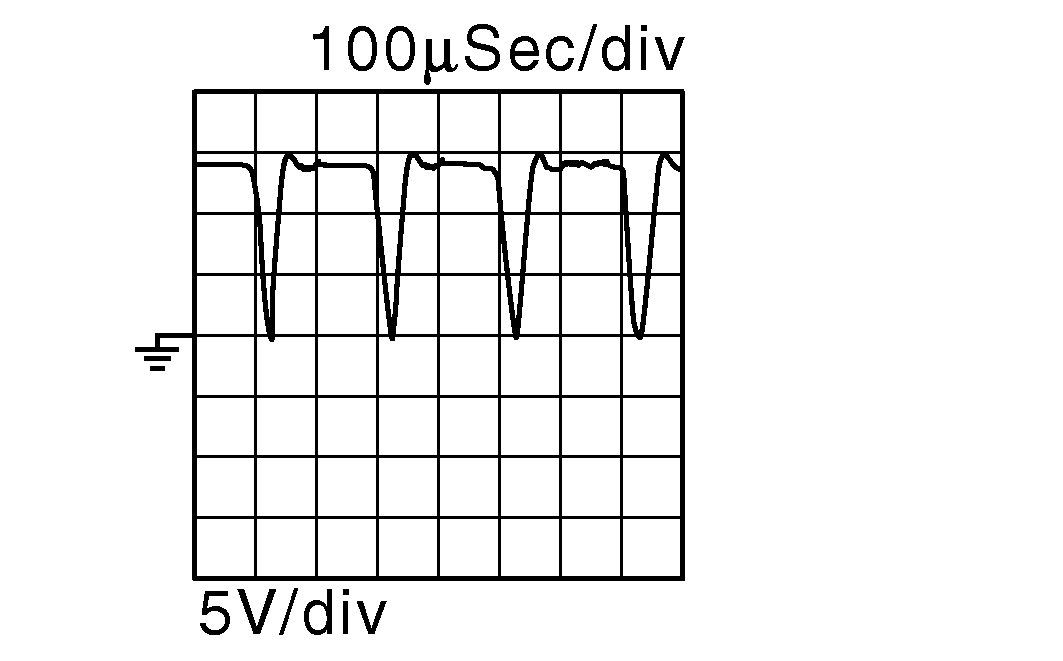

| 21 (L) | 41 (B) | Intake camshaft position sensor (bank 2) [electric intake valve timing control signal] | Input | [Engine is running]
|
4.1 V |
[Engine is running]
|
4.1 V |
||||
| 23 (LG) | 41 (B) | Electric intake valve timing control motor 2 hall sensor 3 | Input | [Engine is running]
|
5 V |
| 24 (BR) | 41 (B) | Electric intake valve timing control motor 2 hall sensor 2 | Input | [Engine is running]
|
5 V |
| 25 (V) | - | Sensor ground | - | - | - |
| 28 (W) | 41 (B) | Ignition switch | Input | [Ignition switch: OFF] | 0 V |
| [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) | ||||
| 30 (G) | 41 (B) | Crankshaft position sensor [electric intake valve timing control signal] | Input | [Engine is running]
|
3.1 V |
[Engine is running]
|
3.1 V |
||||
| 31 (GR) | 41 (B) | Sensor power supply | - | [Ignition switch: ON] | 5 V |
| 32 (L) | - | Electric intake valve timing control motor 2 hall sensor 1 | Input | [Engine is running]
|
5 V |
| 33 (P) | - | Electric intake valve timing control motor 2 temperature sensor | Input | [Engine is running]
|
1.0 - 2.0 V |
| 39 (R) | 41 (B) | Power supply | - | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 40 (L) | 41 (B) | Power supply | - | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 41 (B) | - | Ground | - | - | - |
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
