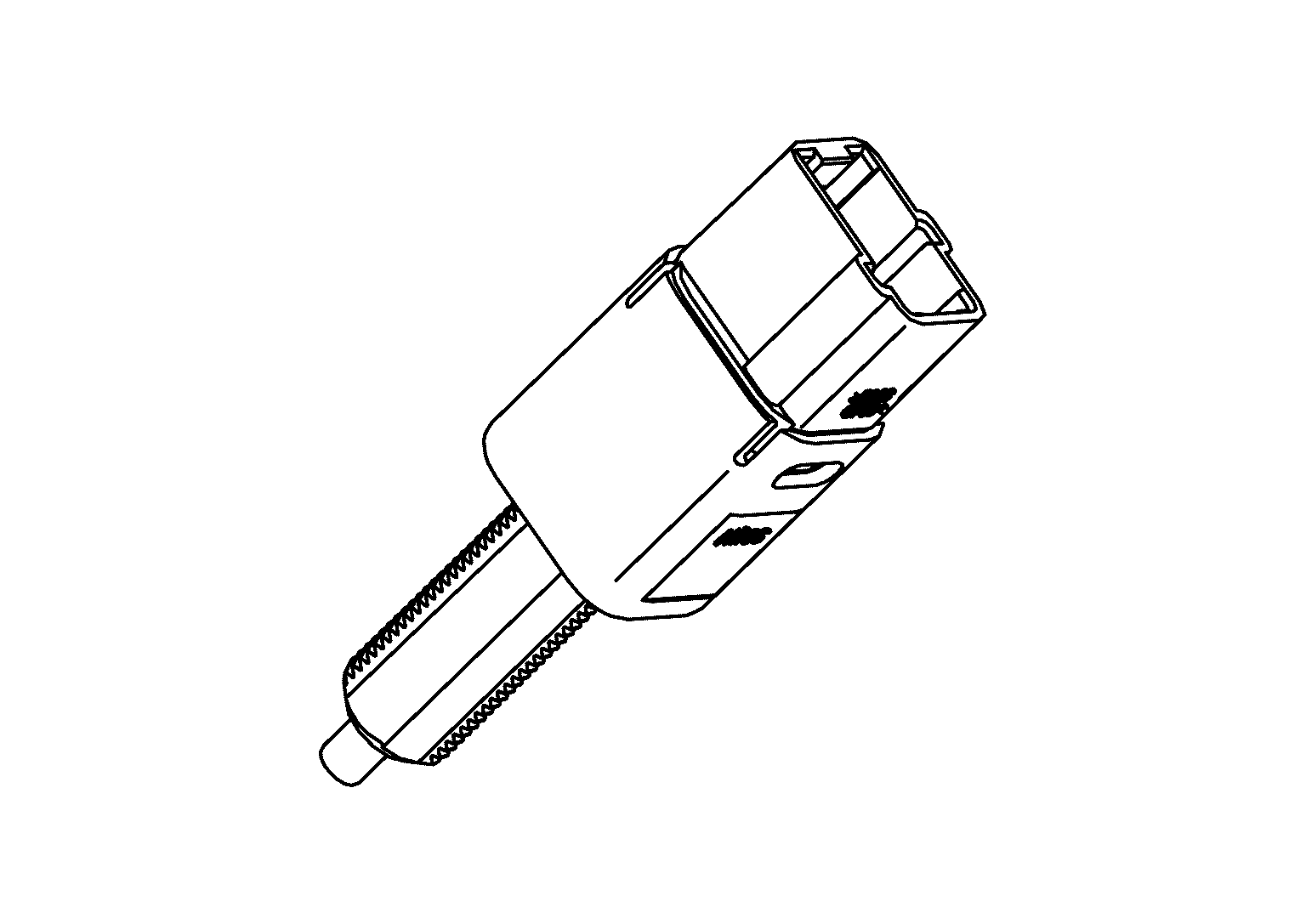

Clutch Pedal Position Switch
FUNCTIONS WITHIN THE SYSTEM
When the clutch pedal is depressed, the clutch pedal position switch turns OFF and the clutch pedal position switch signal is sent to the ECM.
INDIVIDUAL FUNCTION WITHIN THE SYSTEM
ECM detects the state of the clutch pedal by those two types of input (ON/OFF signal).
INDIVIDUAL OPERATION
Clutch pedal position switch signal is one of the ASCD controls.
COMPONENT LOCATION
Clutch interlock switch and clutch pedal position switch are installed to clutch pedal bracket.
