Circuit Diagram

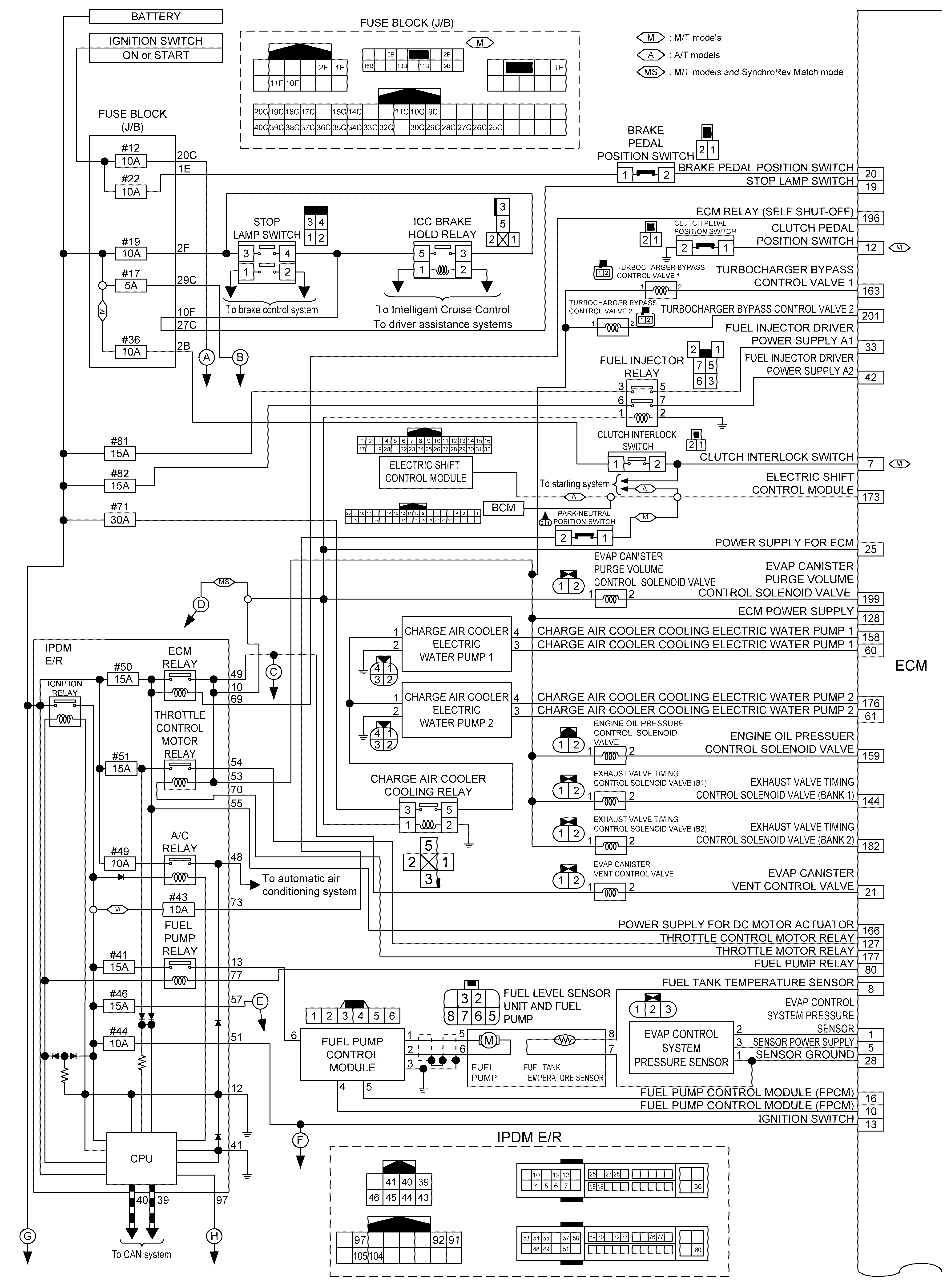

GNSDB154738Courtesy of NISSAN NORTH AMERICA, INC.

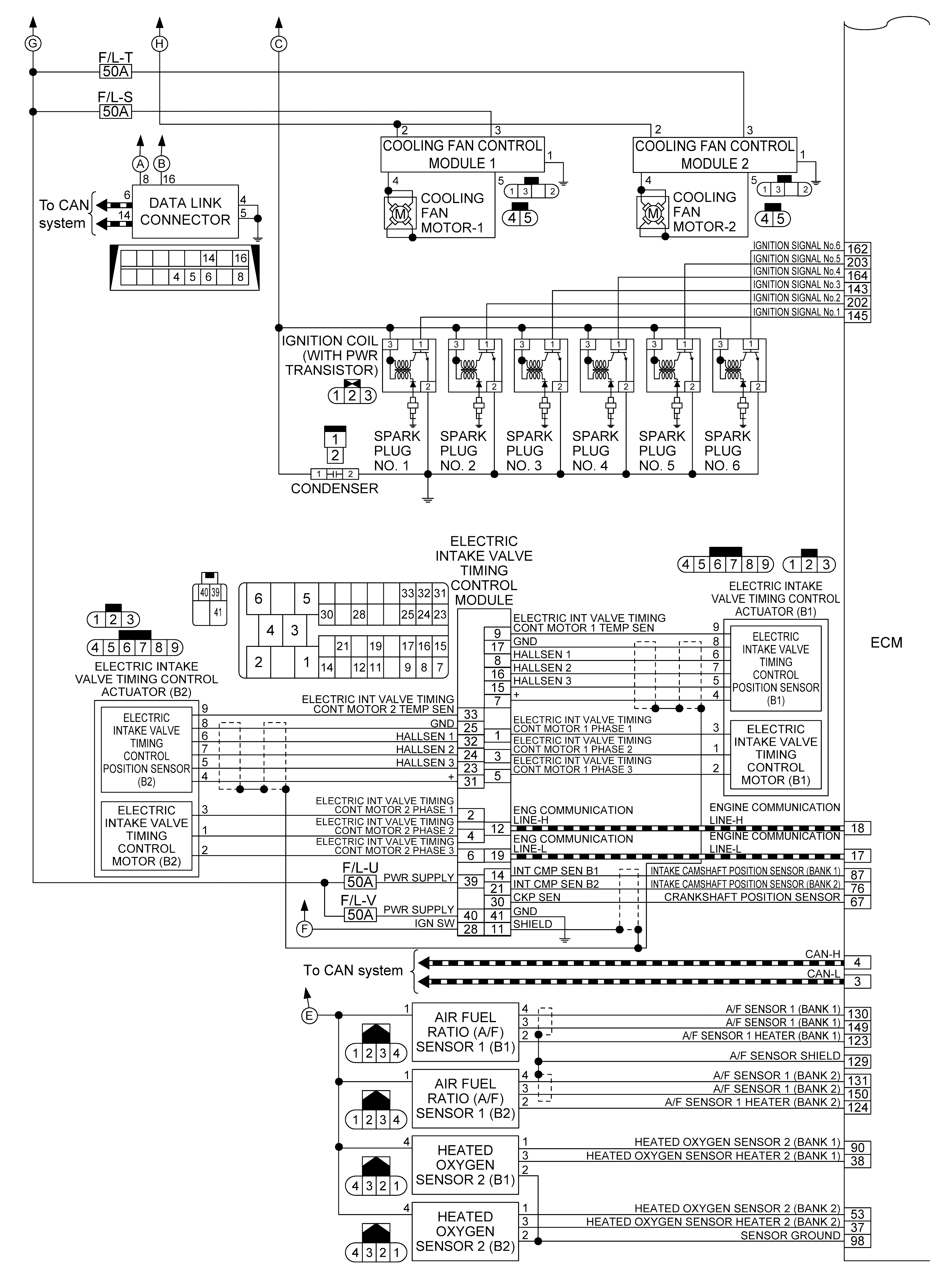

GNSDB156102Courtesy of NISSAN NORTH AMERICA, INC.

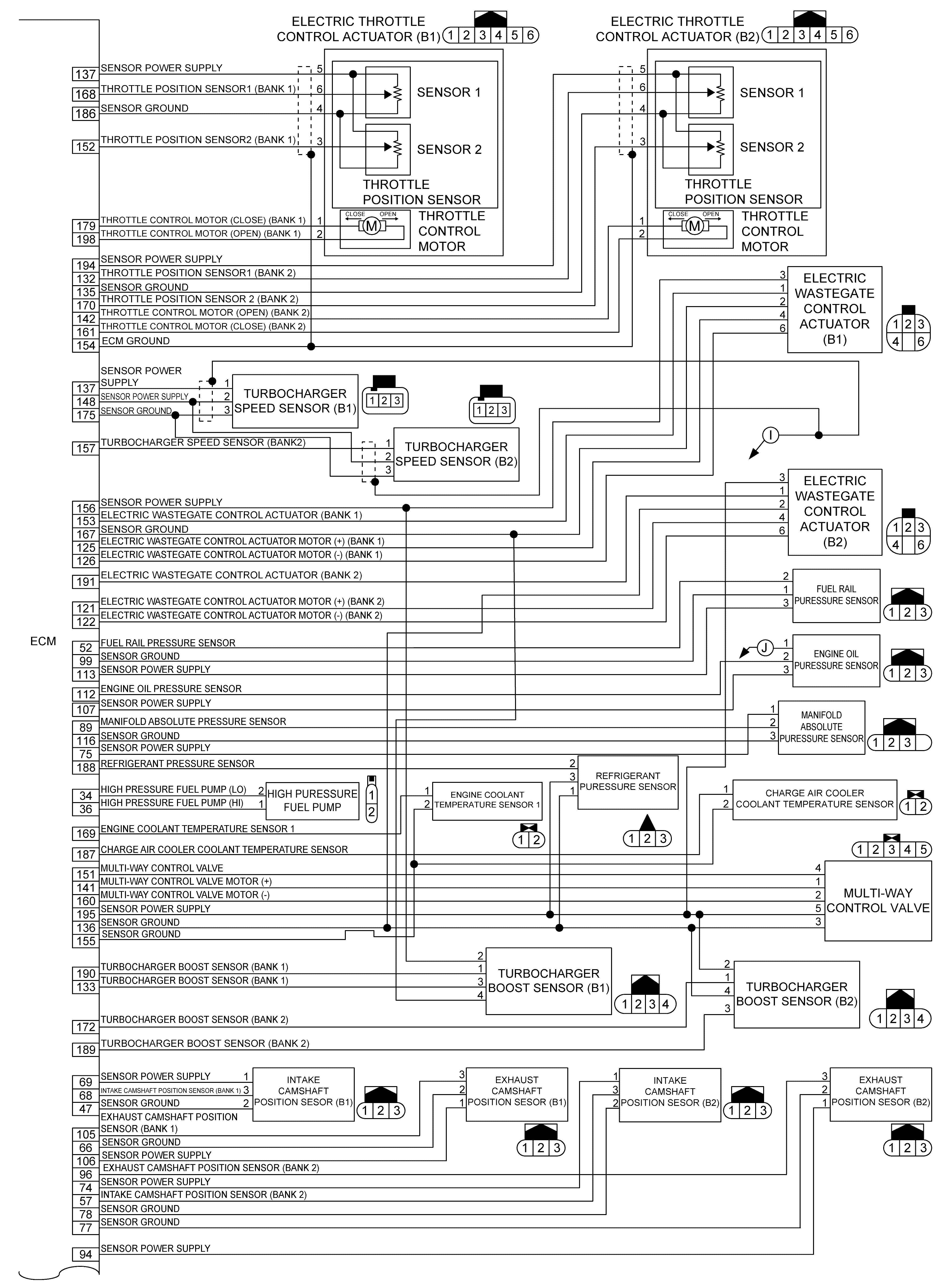

GNSDB154788Courtesy of NISSAN NORTH AMERICA, INC.

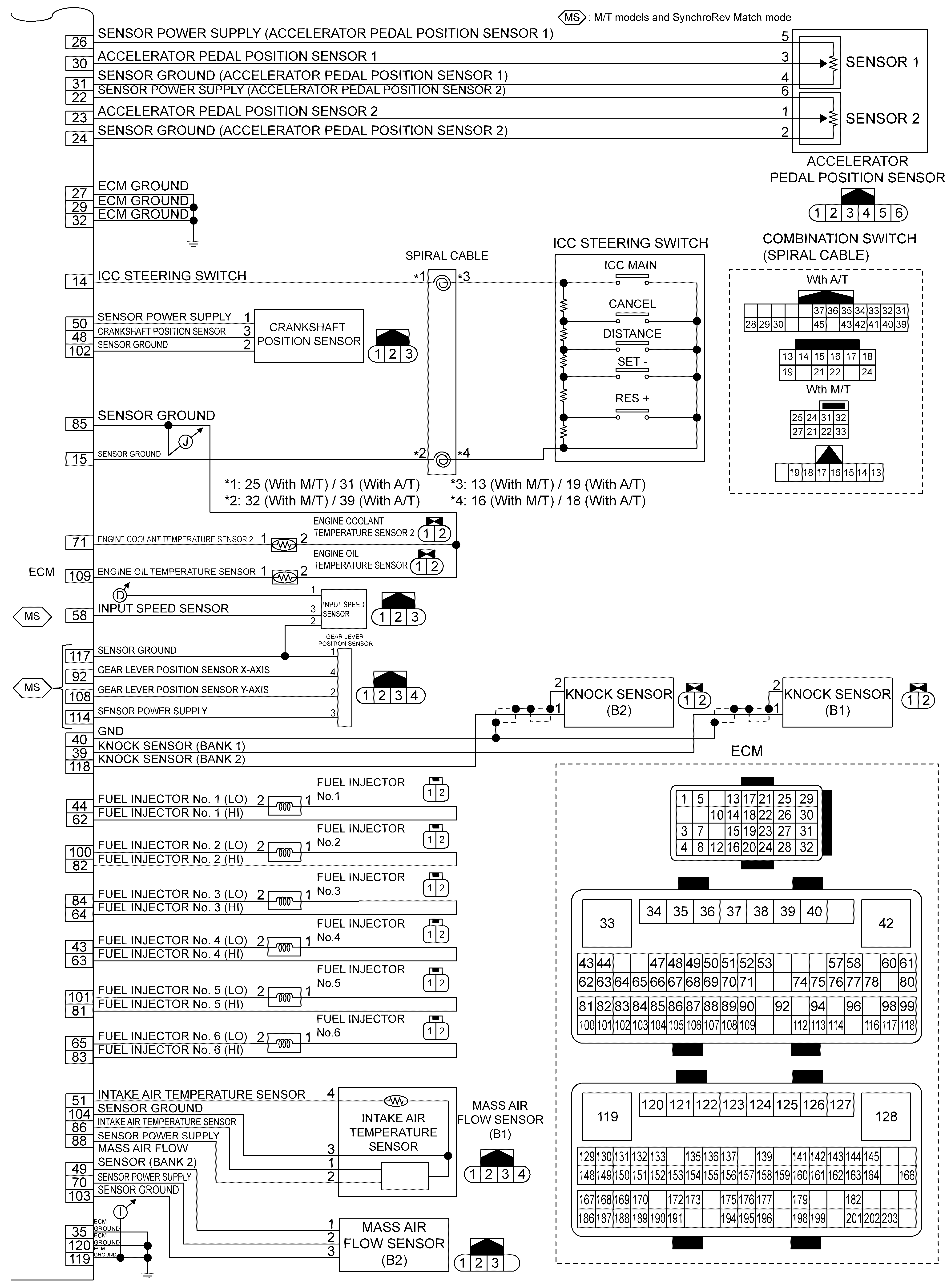

GNSDB155950Courtesy of NISSAN NORTH AMERICA, INC.
