Exploded View

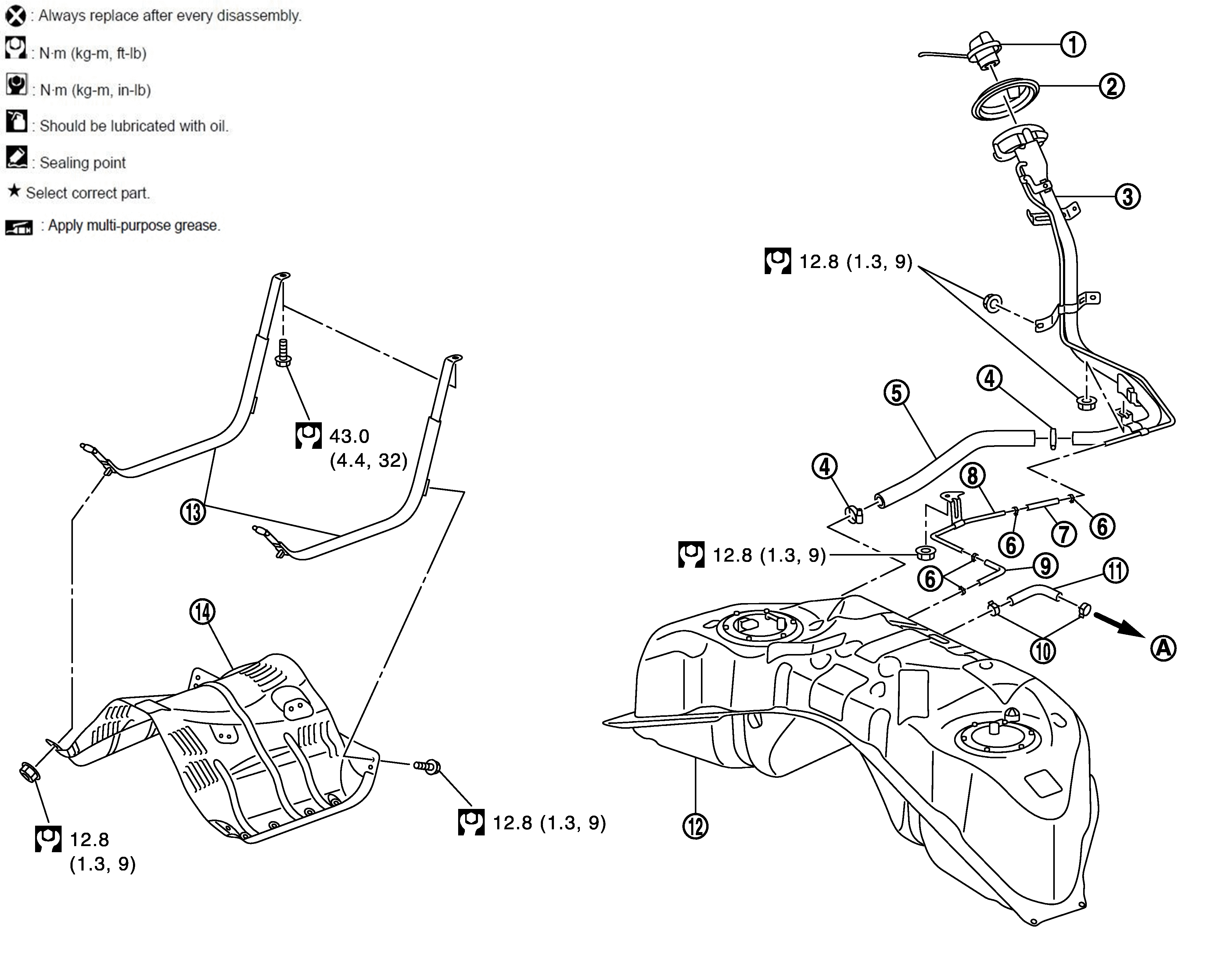

Fig 1: Fuel Tank With Torque Specifications
GNSDB155078Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Fuel filler cap SYMBOL Grommet SYMBOL Fuel filler tube
SYMBOL Clamp SYMBOL Fuel filler hose SYMBOL Clamp
SYMBOL Vent hose SYMBOL Vent tube SYMBOL Vent hose
SYMBOL Clamp SYMBOL EVAP hose SYMBOL Fuel tank
SYMBOL Fuel tank mounting band SYMBOL Fuel tank protector
SYMBOL To EVAP canister
