LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Nissan-Datsun
>>
2023
>>
Z Performance, Automatic Trans
>>
Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering Control System
>>
System Description
>>
System
>>
EPS System
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

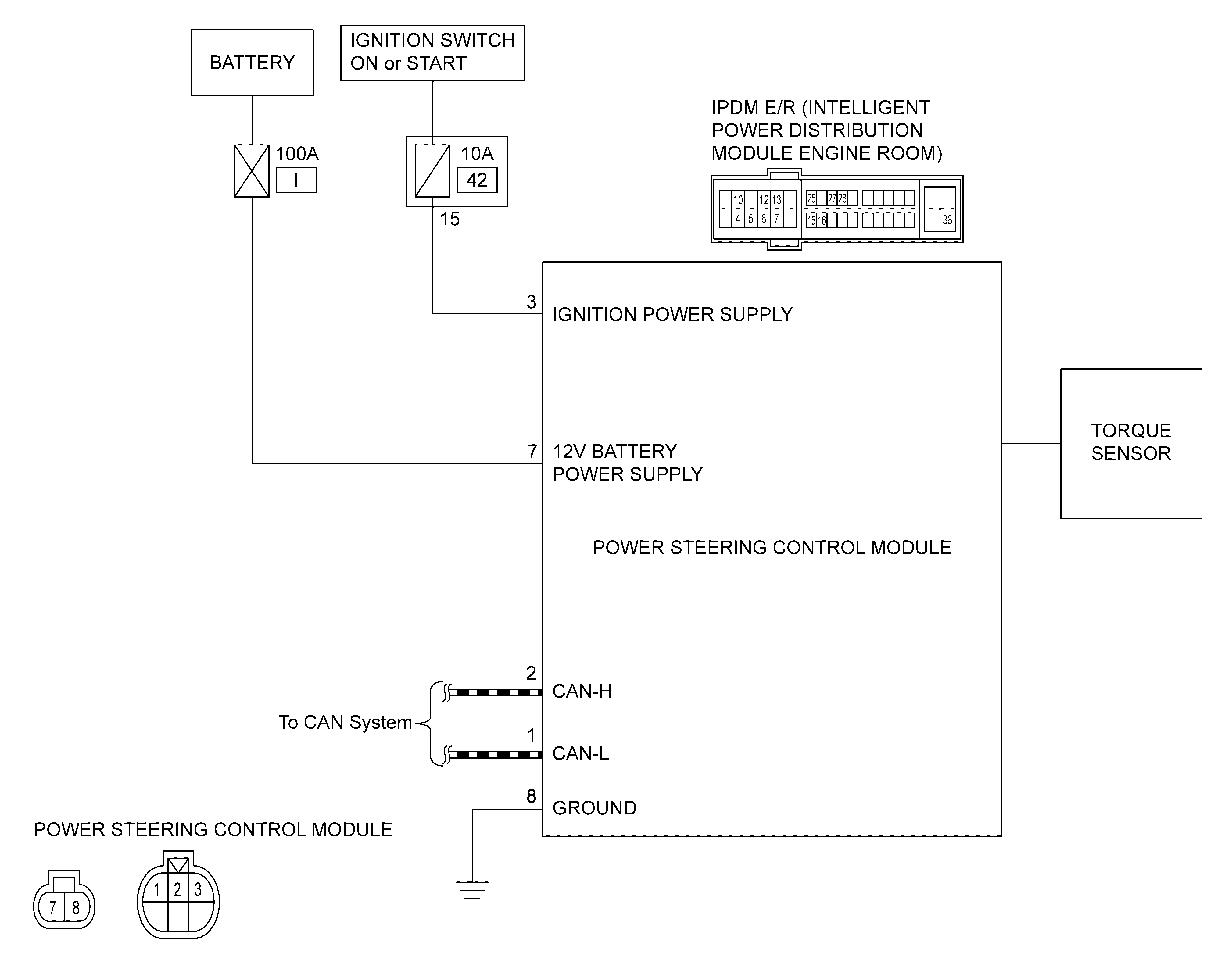

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
