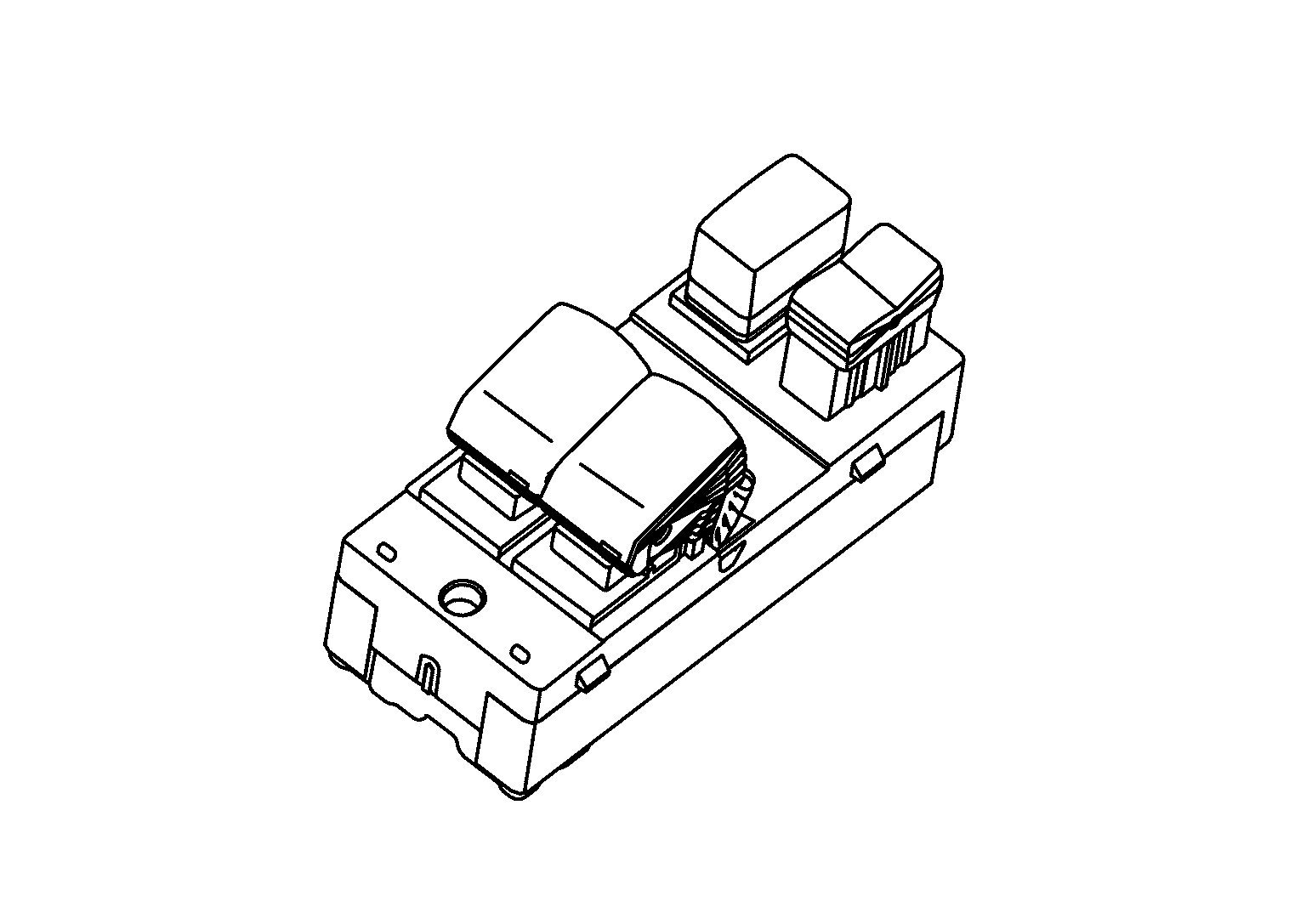

Power Window Main Switch

COMPONENT FUNCTION WITHIN SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

• Power window main switch controls all power window.
• Power window lock switch inhibits power window operation except driver side.

INDIVIDUAL COMPONENT FUNCTION

• Transmits UP/DOWN signal to power window switch (passenger side) and power window motor (driver side).
• Power window main switch controls AUTO UP/DOWN operation and anti - pinch function.
• Power window main switch controls retained power function.
• Turns ON/OFF the power window lock switch.

COMPONENT OPERATION

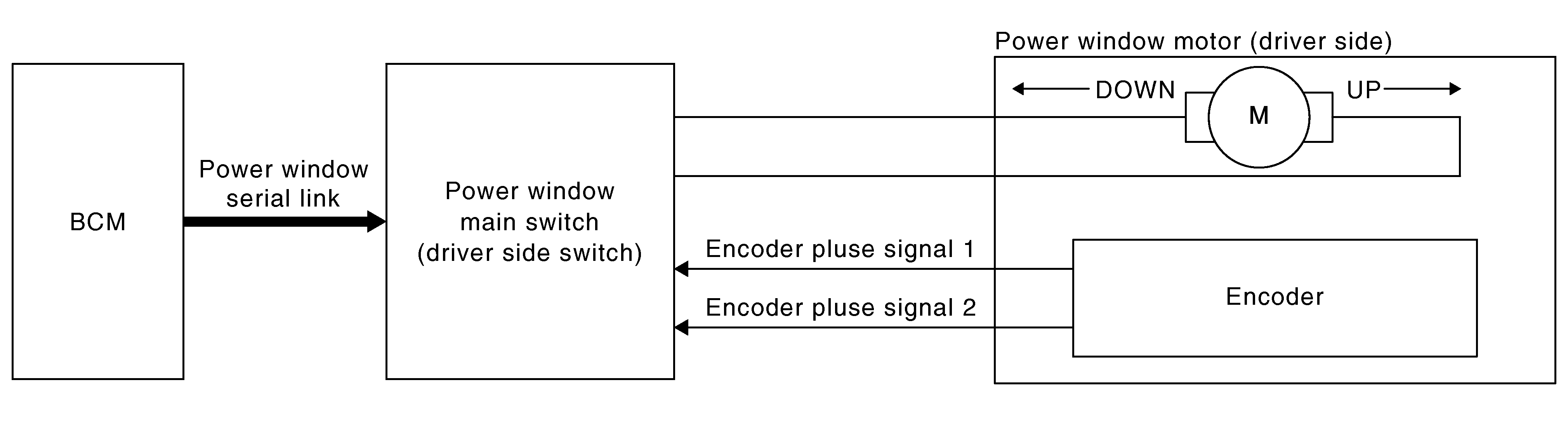

• When power window main switch (driver side switch) is operated, it transmits signal to power window motor (driver side).
• Power window main switch receives the signal from BCM via power window serial link.

  Courtesy of NISSAN NORTH AMERICA, INC.

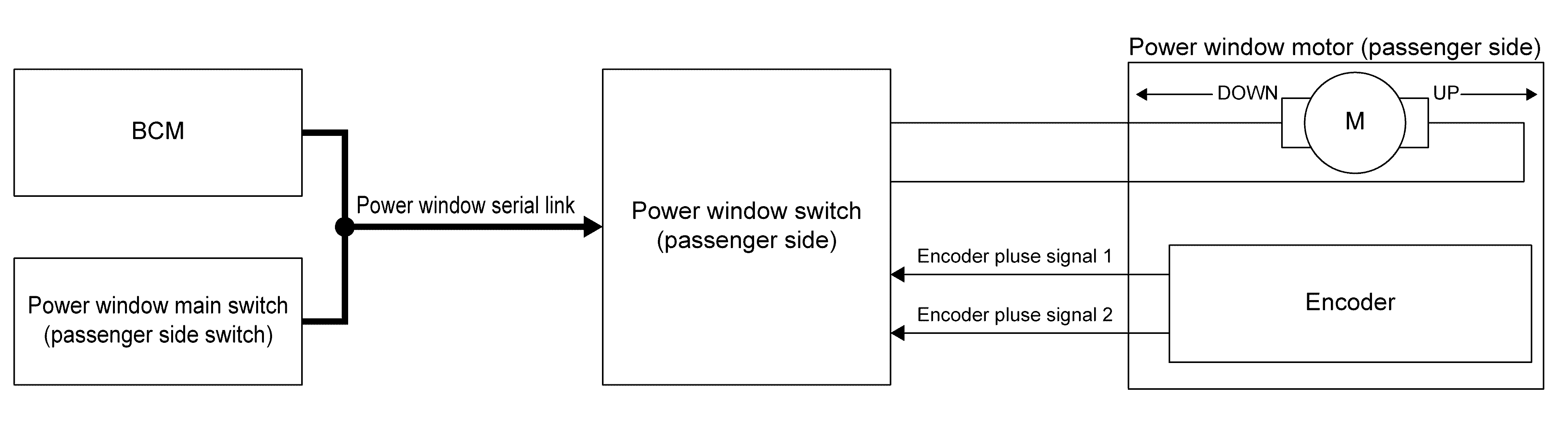

• When power window main switch (passenger side switch) is operated, it transmits signal to power window switch (passenger side).

  Courtesy of NISSAN NORTH AMERICA, INC.

COMPONENT LOCATION

Power window main switch is installed to door finisher (driver side). Refer to Component Location .
