System Description

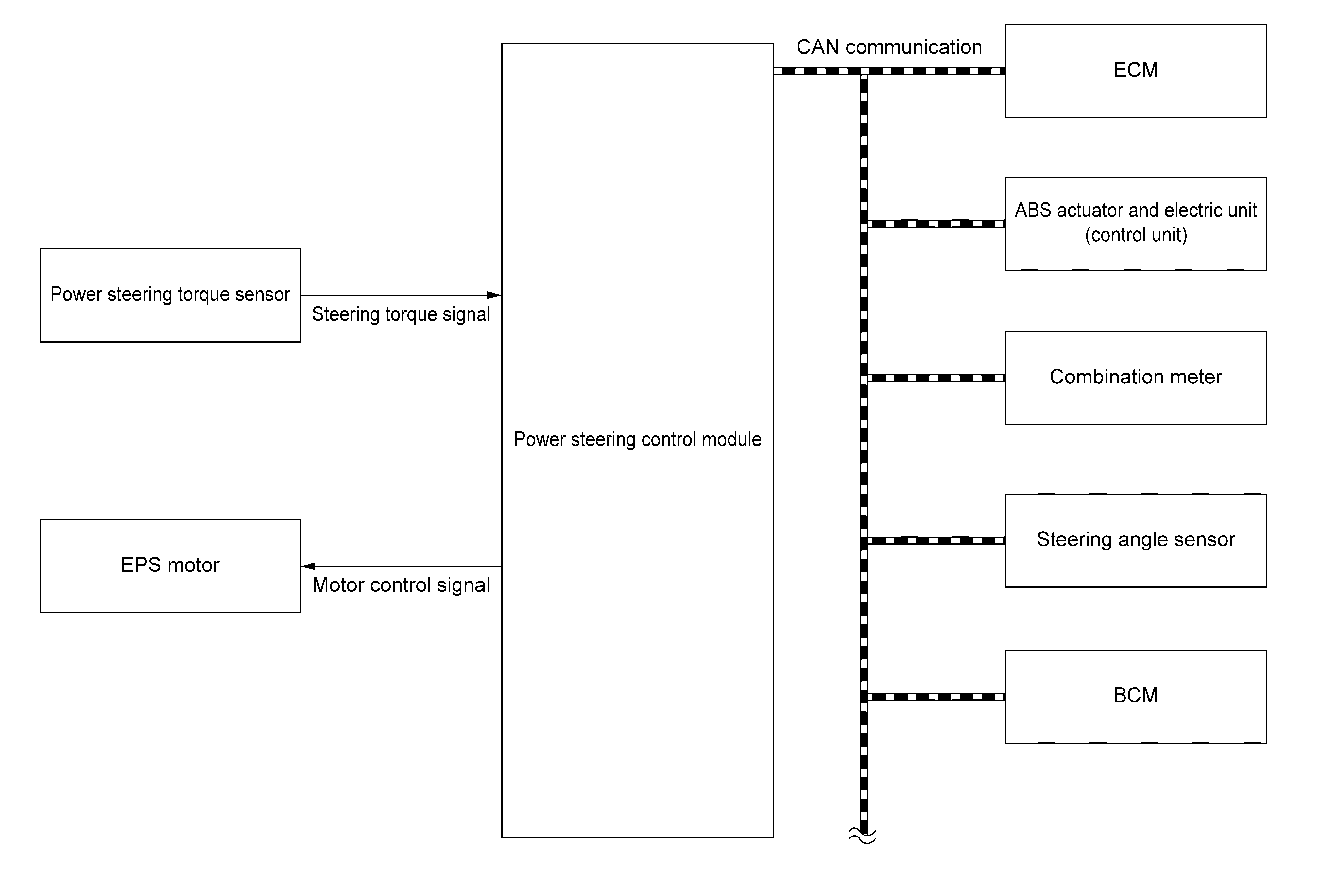

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

DESCRIPTION

• EPS system consists mainly of power steering control module, EPS motor, power steering torque sensor.

  Courtesy of NISSAN NORTH AMERICA, INC.

• EPS system calculates a control signal to transmit to the EPS motor based on information received from ECM, ABS actuator and electric unit (control unit), steering angle sensor and combination meter via CAN communication and information received from power steering torque sensor.
• Power steering control module performs an arithmetical operation on data, such as steering wheel turning force (sensor signal) from the power steering torque sensor, vehicle speed signal, etc. Then it generates an optimum assist torque signal to the EPS motor according to the driving condition.
• After engine start, the EPS system performs control.
• When a malfunction occurs in the system, the fail-safe function stops the EPS system (manual steering state) or restricts its operation (Constant steering assist level state). Refer to Fail-Safe .
• Power steering control module decreases the output signal to EPS motor while extremely using the power steering function (e.g., full steering) consecutively for protecting EPS motor and power steering control module (Overload protection control). Refer to Protection Function .
• Drive mode selector which can change the steering characteristic corresponding to the preference of the driver was adopted. For details, refer to System Description .

CONDITIONS FOR POWER STEERING WARNING LAMP ON

• Turn ON when there is a malfunction in EPS system. If indicates that fail-safe mode is engaged and enters a manual steering state (Control turning force steering wheel becomes heavy).
• Also turns ON when ignition switch is ON, for purpose of lamp check. Turns OFF after the engine starts, if system is normal.
