Component Location

Engine Room Component

Courtesy of NISSAN NORTH AMERICA, INC.

Radiator lower side

No.	Component	Function
	Turbocharger boost sensor (bank 2)	Refer to Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2) .
	Electric throttle control actuator (bank 2)	Refer to Electric Throttle Control Actuator .
	EVAP canister purge volume control solenoid valve	Refer to EVAP Canister Purge Volume Control Solenoid Valve .
	Turbocharger boost sensor (bank 1)	Refer to Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2) .
	Electric throttle control actuator (bank 1)	Refer to Electric Throttle Control Actuator .
	Manifold absolute pressure sensor	Refer to Manifold Absolute Pressure Sensor .
	ECM (with barometric pressure sensor)	Refer to ECM (Built In Barometric Pressure Sensor) .
	Mass air flow sensor (with intake air temperature sensor) (bank 1)	Refer to Mass Air Flow Sensor (With Intake Air Temperature Sensor 1) .
	Mass air flow sensor (bank 2)	Refer to Mass Air Flow Sensor (With Intake Air Temperature Sensor 1) .
	Engine coolant temperature sensor 2	Refer to Engine Coolant Temperature Sensor 2 .

Engine Assembly Component

Courtesy of NISSAN NORTH AMERICA, INC.

	Top view of the engine (view with intake manifold is removed)		Rear view of the engine		Side view of the engine
	Engine front

No.	Component	Function
	Fuel injector (No. 5 cylinder)	Refer to Fuel Injector .
	Fuel injector (No. 3 cylinder)
	Fuel injector (No. 1 cylinder)
	Ignition coil (with power transistor) and spark plug (No. 5 cylinder)	Refer to Ignition Coil And Spark Plug .
	Ignition coil (with power transistor) and spark plug (No. 3 cylinder)
	Ignition coil (with power transistor) and spark plug (No. 1 cylinder)
	Electric intake valve timing control actuator (bank 1)	Refer to Electric Intake Valve Timing Control Actuator .
	Engine oil pressure control solenoid valve	Refer to Engine Oil Pressure Control Solenoid Valve .
	Exhaust valve timing control solenoid valve (bank 2)	Refer to Exhaust Valve Timing Control Solenoid Valve .
	Engine coolant temperature sensor 1	Refer to Engine Coolant Temperature Sensor 1 .
	Electric intake valve timing control actuator (bank 2)	Refer to Electric Intake Valve Timing Control Actuator .
	Turbocharger speed sensor (bank 2) *	Refer to Turbocharger Speed Sensor .
	High pressure fuel pump	Refer to High Pressure Fuel Pump .
	Ignition coil (with power transistor) and spark plug (No. 2 cylinder)	Refer to Ignition Coil And Spark Plug .
	Ignition coil (with power transistor) and spark plug (No. 4 cylinder)
	Ignition coil (with power transistor) and spark plug (No. 6 cylinder)
	Fuel injector (No. 2 cylinder)	Refer to Fuel Injector .
	Fuel injector (No. 4 cylinder)
	Fuel injector (No. 6 cylinder)
	Knock sensor (bank 1)	Refer to Knock Sensor .
	Knock sensor (bank 2)
	Intake camshaft position sensor (bank 2)	Refer to Intake Camshaft Position Sensor .
	Exhaust camshaft position sensor (bank 2)	Refer to Exhaust Camshaft Position Sensor .
	Fuel rail pressure sensor	Refer to Fuel Rail Pressure Sensor .
	Crankshaft position sensor	Refer to Crankshaft Position Sensor .
	Exhaust camshaft position sensor (bank 1)	Refer to Exhaust Camshaft Position Sensor .
	Intake camshaft position sensor (bank 1)	Refer to Intake Camshaft Position Sensor .
	Turbocharger speed sensor (bank 1) *	Refer to Turbocharger Speed Sensor .
	Engine oil pressure sensor	Refer to Engine Oil Pressure Sensor .
	Engine oil temperature sensor	Refer to Exhaust Camshaft Position Sensor .
	Exhaust valve timing control solenoid valve (bank 1)	Refer to Exhaust Valve Timing Control Solenoid Valve .

*: For turbo high pressure model

Charge Air Cooler Cooling System Component

Courtesy of NISSAN NORTH AMERICA, INC.

Vehicle front

No.	Component	Function
	Charge air cooler cooling electric water pump 2	Refer to Charge Air Cooler Cooling Electric Water Pump .
	Charge air cooler cooling electric water pump 1
	Charge air cooler coolant temperature sensor	Refer to Charge Air Cooler Coolant Temperature Sensor .

Exhaust System Component

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
	Air fuel ratio (A/F) sensor 1 (bank 2)	Refer to Air Fuel Ratio (A/F) Sensor 1 .
	Heated oxygen sensor 2 (bank 2)	Refer to Heated Oxygen Sensor 2 .
	Air fuel ratio (A/F) sensor 1 (bank 1)	Refer to Air Fuel Ratio (A/F) Sensor 1 .
	Heated oxygen sensor 2 (bank 1)	Refer to Heated Oxygen Sensor 2 .

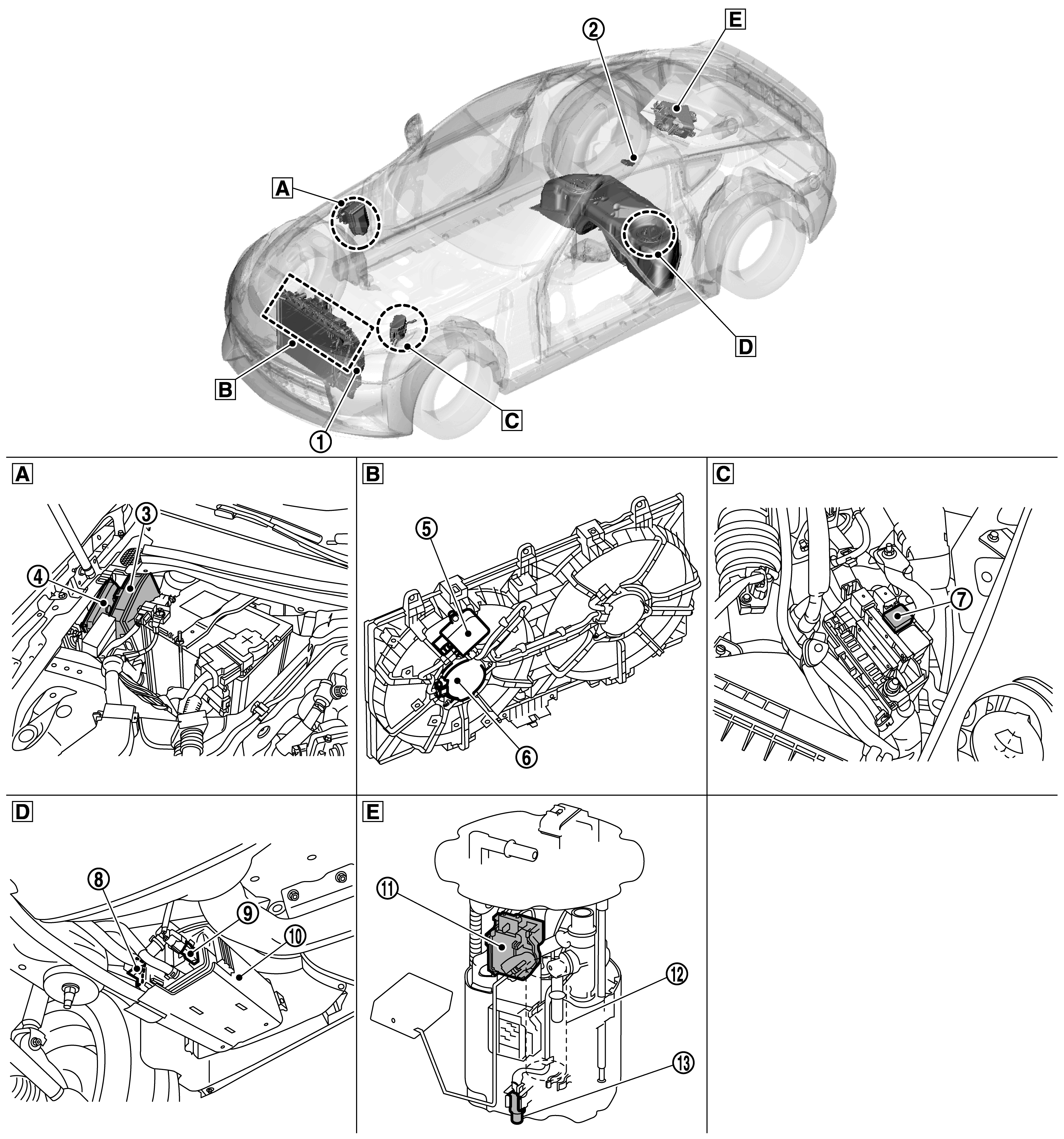

Vehicle Compartment

Courtesy of NISSAN NORTH AMERICA, INC.

	Around the battery		Around the radiator		Fuse and fusible link block
	Right side of main muffler		Rear seat (lower right)

No.	Component	Function
	Refrigerant pressure sensor	Refer to Refrigerant Pressure Sensor .
	Fuel pump control module	Refer to Fuel Pump Control Module (FPCM) .
	IPDM E/R	IPDM E/R controls the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. Refer to System Description . Refer to Fail-safe . Refer to System Description .
	Electric intake valve timing control module	Refer to Electric Intake Valve Timing Control Actuator .
	Cooling fan control module	Refer to Cooling Fan .
	Cooling fan motor	Refer to Cooling Fan .
	Cooling fan relay	Refer to Cooling Fan .
	EVAP canister vent control valve	Refer to EVAP Canister Vent Control Valve .
	EVAP control system pressure sensor	Refer to EVAP Control System Pressure Sensor .
	EVAP canister	EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank.
	Fuel level sensor	Refer to Fuel Level Sensor .
	Low pressure fuel pump	Refer to Low Pressure Fuel Pump .
	Fuel tank temperature sensor	Refer to Fuel Tank Temperature Sensor .
