FUEL PUMP CONTROL MODULE (FPCM) : Removal and Installation

REMOVAL

1. Remove the luggage floor carpet assembly.
2. Remove the luggage side finisher LH and RH.
3. Remove the luggage spacer center front.
4. Disconnect fuel pump control module (FPCM) harness connector and remove the FPCM from the vehicle.

INSTALLATION

Install in the reverse order of removal.

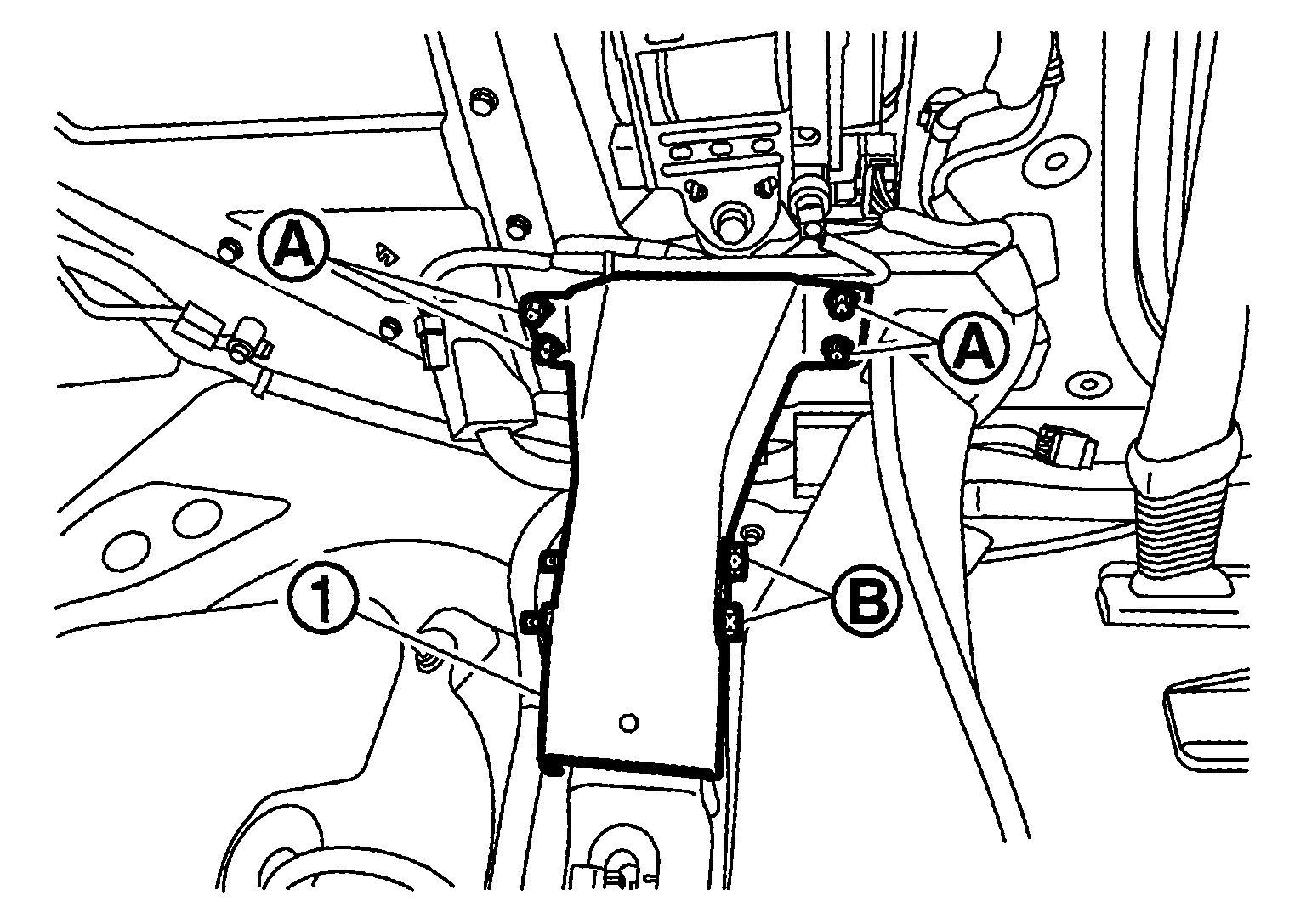

• Tighten the rear floor gusset LH bolts to the specified torque.

  Courtesy of NISSAN NORTH AMERICA, INC.

  : Rear floor gusset LH

  Bolt	: 35 N.m (3.6 kg-m, 26 ft-lb)
  Bolt	: 80 N.m (8.2 kg-m, 59 ft-lb)
