FUEL LEVEL SENSOR UNIT : Exploded View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

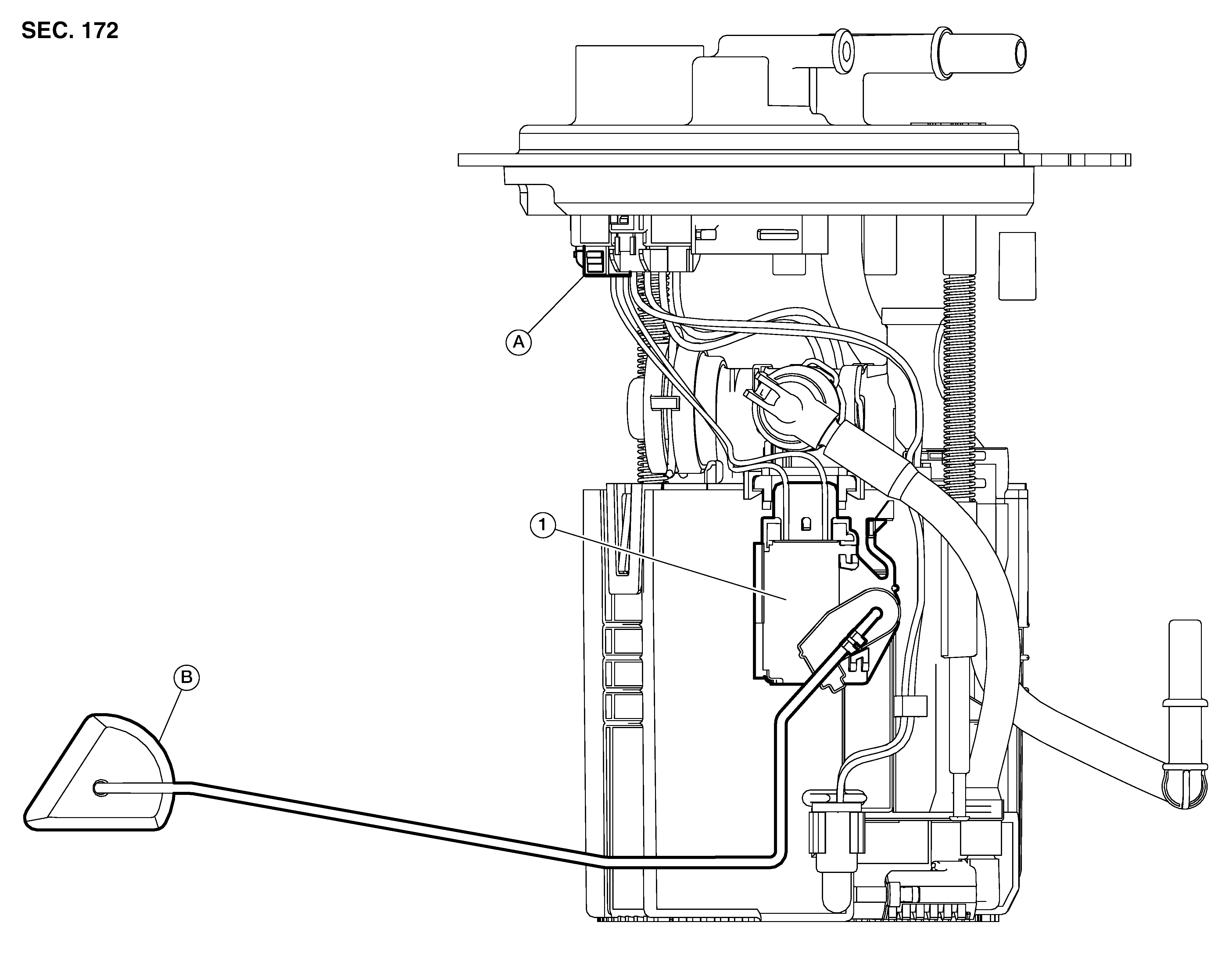

FUEL LEVEL SENSOR UNIT : Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel level sensor unit
A.
Harness connector
B.
Float arm assembly
Courtesy of NISSAN NORTH AMERICA, INC.
