System Description

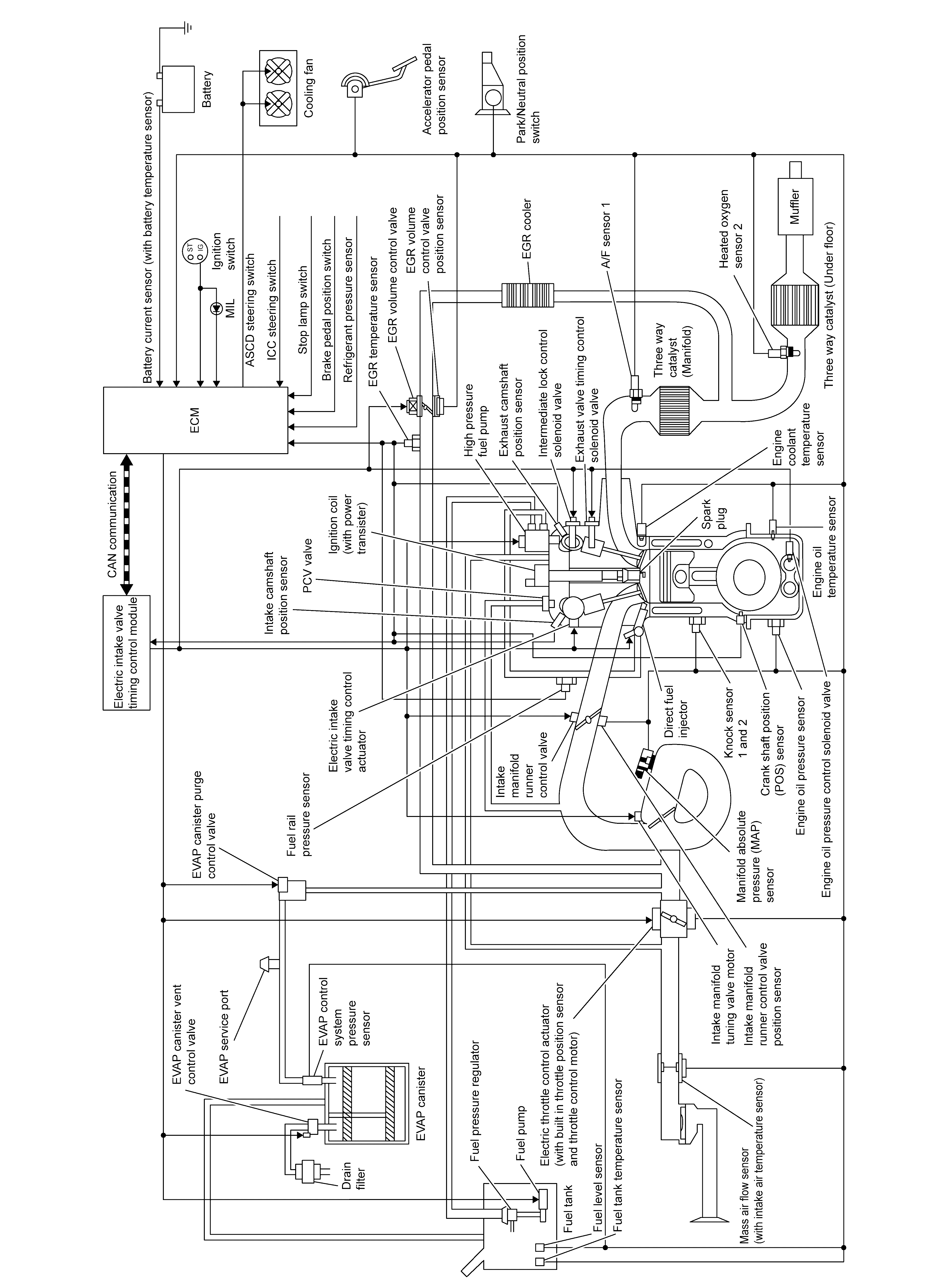

SYSTEM DIAGRAM
| Component parts | Function |
|---|---|
| Accelerator pedal position sensor | Accelerator Pedal Position Sensor |
| Air fuel ratio (A/F) sensor 1 | Air Fuel Ratio (A/F) Sensor 1 |
| ASCD steering switch | Steering Switch |
| ProPILOT Assist steering switch | |
| Battery current sensor (With battery temperature sensor) | Battery Current Sensor (With Battery Temperature Sensor) |
| Cooling fan | Cooling Fan |
| Crankshaft position sensor | Crankshaft Position Sensor |
| ECM | ECM |
| EGR system | System Description . |
| EGR volume control valve | EGR Volume Control Valve |
| Electric intake valve timing control actuator | Electric Intake Valve Timing Control Actuator |
| Electric intake valve timing control module | Electric Intake Valve Timing Control Module |
| Electric throttle control actuator | Electric Intake Valve Timing Control Actuator |
| Engine coolant temperature sensor | Engine Coolant Temperature Sensor |
| Engine oil pressure sensor | Engine Oil Pressure Sensor |
| Engine oil pressure control solenoid valve | Engine Oil Pressure Control Solenoid Valve |
| Engine oil pressure control system | System Description |
| Engine oil temperature sensor | Engine Oil Temperature Sensor |
| EVAP canister | EVAP Canister |
| EVAP canister purge volume control solenoid valve | EVAP Canister Purge Volume Control Solenoid Valve |
| EVAP canister vent control valve | EVAP Canister Vent Control Valve . |
| EVAP control system pressure sensor | EVAP Control System Pressure Sensor |
| Exhaust camshaft position sensor | Exhaust Camshaft Position Sensor . |
| Exhaust valve timing control solenoid valve | Exhaust Valve Timing Control Solenoid Valve |
| Exhaust valve timing intermediate lock control solenoid valve | Exhaust Valve Timing Intermediate Lock Control Solenoid Valve |
| Fuel injector | Fuel Injector |
| Fuel level sensor unit and fuel pump | Fuel Level Sensor Unit And Fuel Pump . |
| Fuel pressure control | System Description |
| Fuel rail pressure sensor | Fuel Rail Pressure Sensor |
| Fuel tank temperature sensor | Fuel Tank Temperature Sensor |
| Heated oxygen sensor 2 | Heated Oxygen Sensor 2 |
| High pressure fuel pump | High Pressure Fuel Pump |
| Ignition coil with power transistor | Ignition Coil With Power Transistor |
| Intake camshaft position sensor | Intake Camshaft Position Sensor |
| Intake manifold runner control valve | Intake Manifold Runner Control Valve |
| Intake manifold tuning valve | Intake Manifold Tuning Valve |
| Knock sensor | Knock Sensor |
| Malfunction indicator lamp (MIL) | Malfunction Indicator Lamp (MIL) |
| Manifold absolute pressure sensor | Manifold Absolute Pressure Sensor |
| Mass air flow sensor (With intake air temperature sensor) | Mass Air Flow Sensor (With Intake Air Temperature Sensor) |
| Power generation voltage variable control system | System Description |
| Refrigerant pressure sensor | Refrigerant Pressure Sensor |
| Stop lamp switch | Stop Lamp Switch And Brake Pedal Position Switch |
| Brake pedal position switch |
SYSTEM DESCRIPTION
ECM controls the engine by various functions.
| Function | Reference |
|---|---|
| Dig (direct injection gasoline) system | System Description |
| Electric ignition system | System Description |
| Intake valve timing control | System Description |
| Exhaust valve timing control | System Description |
| Intake manifold runner control | System Description |
| Intake manifold tuning system | System Description |
| Engine protection control | System Description |
| Fuel filler cap warning system | System Description |
| Air conditioning cut control | System Description |
| Cooling fan control | System Description |
| Evaporative emission system | System Description |
| Automatic speed control device (ASCD) | System Description |
| CAN communication | System Description |
| Active grille shutter system | Refer to System Description . |
