Work Flow

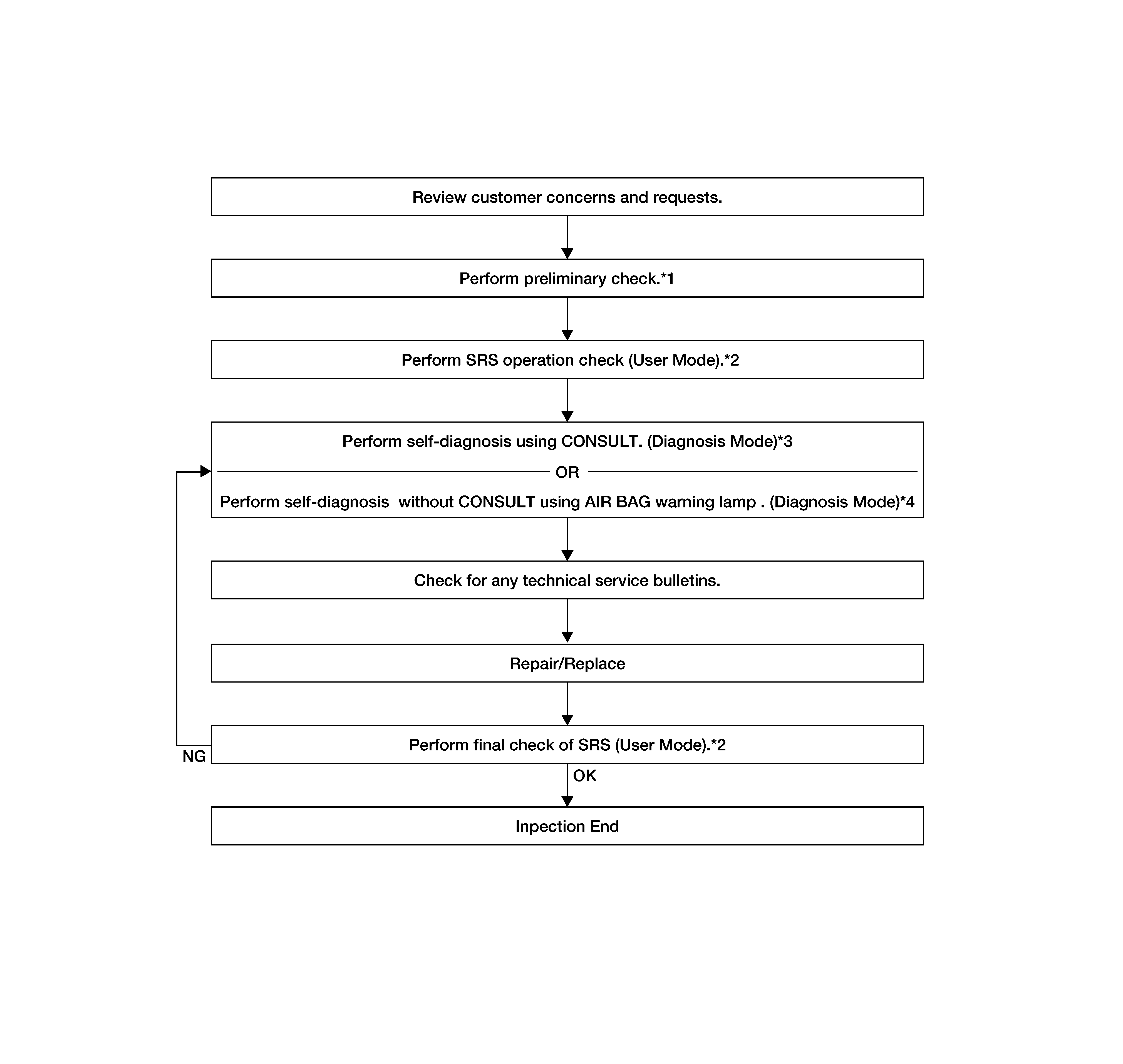

OVERALL SEQUENCE

Courtesy of NISSAN NORTH AMERICA, INC.

DETAILED WORK FLOW

1. CUSTOMER INFORMATION
   1. Get detailed information from the customer about the symptom.

   >>

   GO TO 2.

2. PRELIMINARY CHECK
   1. Perform preliminary check. Refer to Trouble Diagnosis Introduction .

   >>

   GO TO 3.

3. USER MODE
   1. Perform self-diagnosis using the "AIR BAG" warning lamp in User mode. Refer to SRS Operation Check .

   >>

   GO TO 4.

4. SELECT SELF DIAGNOSTIC RESULT
   1. CONSULT Select "Self Diagnostic Result" mode of "AIR BAG". Refer to Self-Diagnosis Function  (with CONSULT) or Trouble Diagnosis  (without CONSULT).

   >>

   GO TO 5.

5. TECHNICAL SERVICE BULLETINS
   1. Check for technical service bulletins.

   >>

   GO TO 6.

6. REPLACE PART
   1. Replace the malfunctioning part.

   >>

   GO TO 7.

7. FINAL CHECK
   1. Check SRS using Diagnosis mode and User mode.

   Does Diagnosis mode and User mode indicate SRS normal?

   YES>>

   Inspection End.

   NO>>

   GO TO 4.
