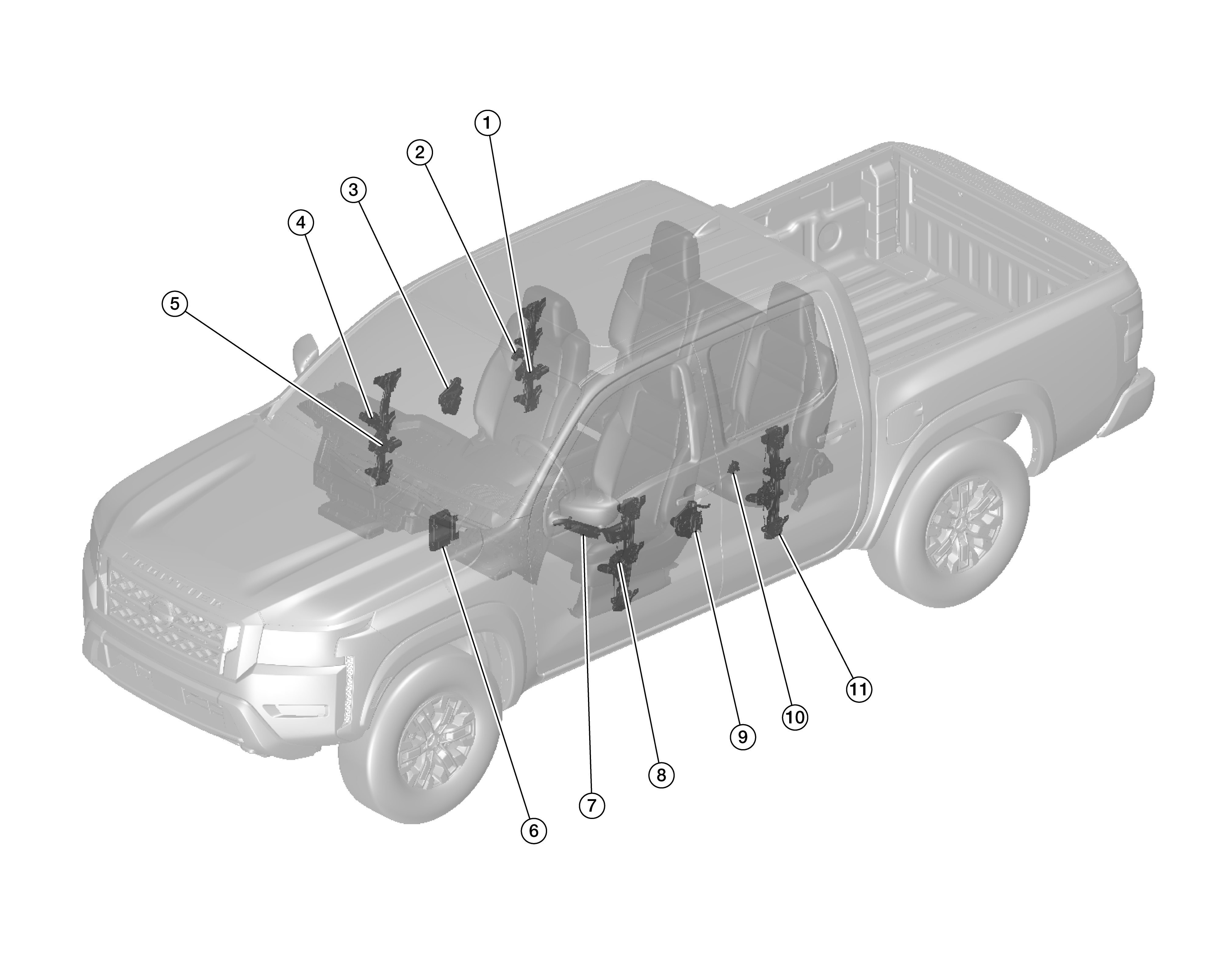

| 1. |
Rear power window motor RH |
Refer to Rear Power Window Motor . |
| 2. |
Rear power window switch RH |
Sends signal to rear power window motor RH for UP/DOWN operation. |
| 3. |
Front door lock assembly RH (door switch) |
Refer to Front Door Lock Assembly
for detailed component location. |
| 4. |
Front power window switch RH |
Refer to Power Window and Door Lock/Unlock Switch RH . |
| 5. |
Front power window motor RH |
Refer to Front Power Window Motor . |
| 6. |
BCM (Body Control Module) |
- Supplies power to the window switches.
- Controls retained power.
Refer to System Description
. |
| 7. |
Main power window and door lock/unlock switch |
Refer to Main Power Window and Door Lock/unlock Switch . |
| 8. |
Front power window motor LH |
Refer to Front Power Window Motor . |
| 9. |
Front door lock assembly LH (door switch) |
Refer to Front Door Lock Assembly
for detailed component location. |
| 10. |
Rear power window switch LH |
Sends signal to rear power window motor RH for UP/DOWN operation. |
| 11. |
Rear power window motor LH |
Refer to Rear Power Window Motor . |
