Reference Value

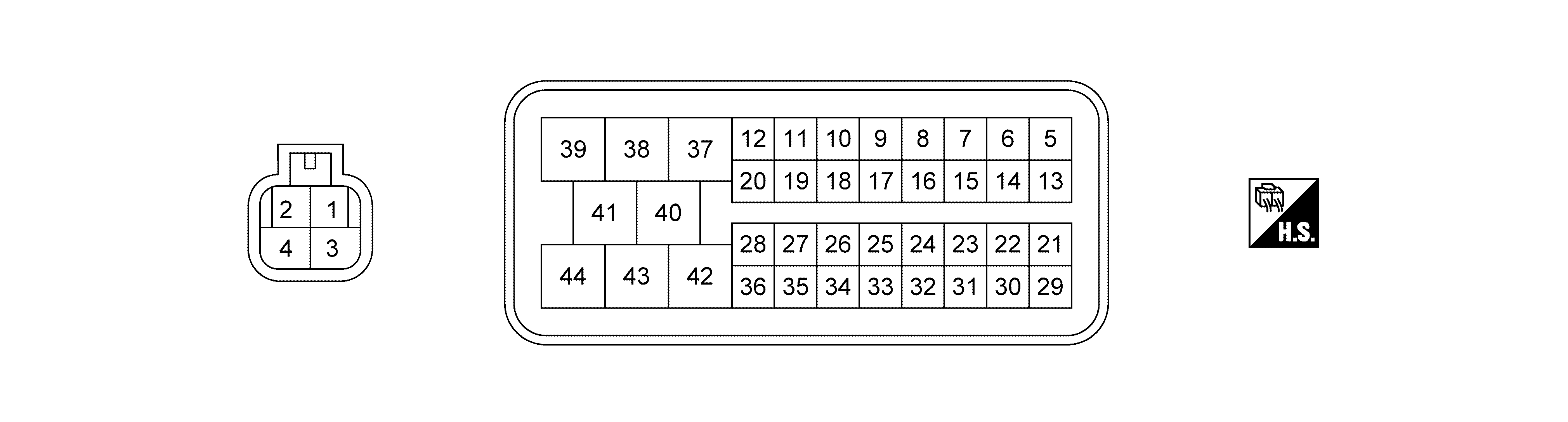

TERMINAL LAYOUT
PHYSICAL VALUES
NOTE:

- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT.
| Terminal No. | Description | Condition | Value (Approx.) | ||
|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | ||
| 1 (R) | 3 (B) | Power supply | - | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 2 (P) | 3 (B) | Power supply | - | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 3 (B) | - | Ground | - | - | - |
| 5 (Y) | 3 (B) | Sensor power supply | - | [Ignition switch: ON] | 5 V |
| 6 (B) | - | Electric intake valve timing control motor 2 hall sensor 3 | Input | [Engine is running]
|
5 V |
| 7 (L) | - | Electric intake valve timing control motor 2 temperature sensor | Input | [Engine is running]
|
1.0 - 2.0 V |
| 13 (R) | 3 (B) | Electric intake valve timing control motor 2 hall sensor 2 | Input | [Engine is running]
|
5 V |
| 14 (G) | 3 (B) | Electric intake valve timing control motor 2 hall sensor 1 | Input | [Engine is running]
|
5 V |
| 15 (W) | - | Sensor ground | - | - | - |
| 18 (G) | 3 (B) | Ignition switch | - | - | - |

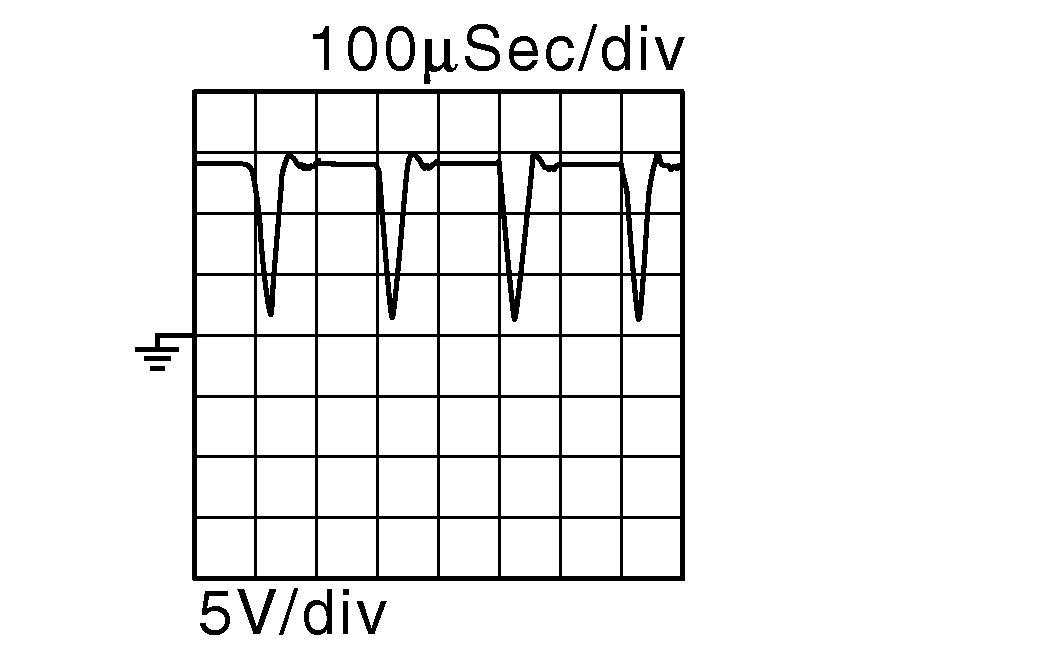

| 20 (G) | 3 (B) | Crankshaft position sensor (electric intake valve timing control signal) | Input | [Engine is running]
|
3.1 V |
[Engine is running]
|
3.1 V |
||||
| 21 (R) | 3 (B) | Electric intake valve timing control motor 1 hall sensor 2 | Input | [Engine is running]
|
5 V |
| 22 (G) | 3 (B) | Electric intake valve timing control motor 1 hall sensor 1 | Input | [Engine is running]
|
5 V |
| 23 (W) | - | Sensor ground | - | - | - |
| 25 (L) | - | ENGINE communication line-L | Input/Output | - | - |
| 27 (W) | 3 (B) | Intake camshaft position sensor (bank 2) (electric intake valve timing control signal) | Input | [Engine is running]
|
4.1 V |
[Engine is running]
|
4.1 V |
||||
| 29 (Y) | 3 (B) | Sensor power supply | - | [Ignition switch: ON] | 5 V |
| 30 (B) | 3 (B) | Electric intake valve timing control motor 1 hall sensor 3 | Input | [Engine is running]
|
5 V |
| 31 (L) | 3 (B) | Electric intake valve timing control motor 1 temperature sensor | Input | [Engine is running]
|
1.0 - 2.0 V |
| 33 (GR) | - | Shield | - | - | - |
| 34 (LG) | 3 (B) | ENGINE communication line-H | Input/Output | - | - |

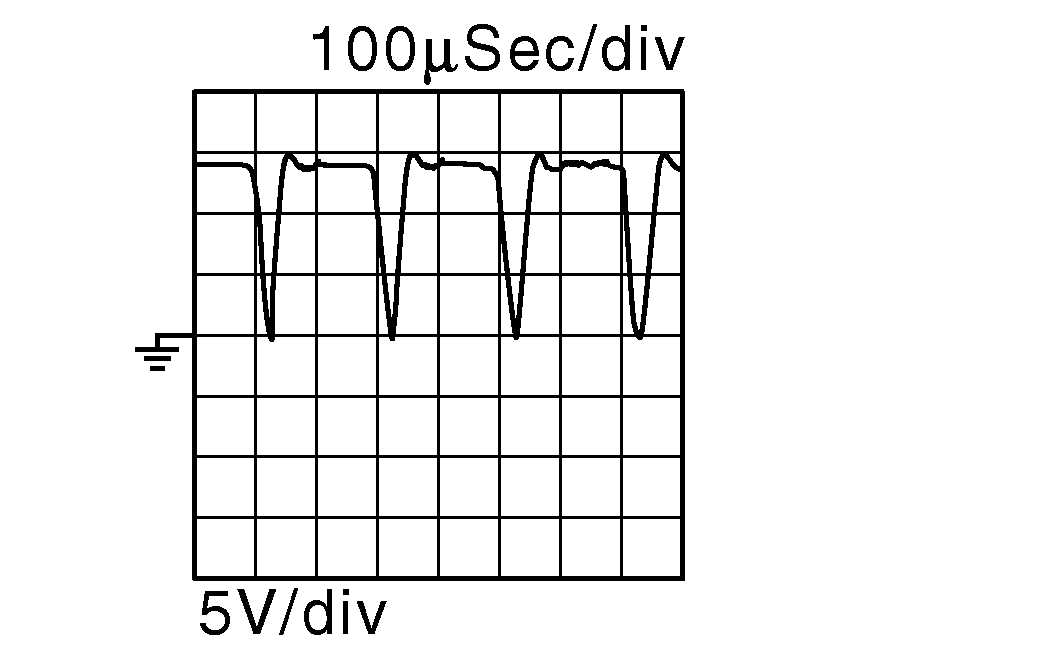

| 36 (L) | 3 (B) | Intake camshaft position sensor (bank 1) (electric intake valve timing control signal) | Input | [Engine is running]
|
3.8 V |
[Engine is running]
|
3.8 V |
||||
| 37 (B) | 3 (B) | Electric intake valve timing control motor 1 phase 3 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 39 (B) | 3 (B) | Electric intake valve timing control motor 2 phase 3 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 40 (R) | 3 (B) | Electric intake valve timing control motor 1 phase 2 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 41 (R) | 3 (B) | Electric intake valve timing control motor 2 phase 2 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 42 (W) | 3 (B) | Electric intake valve timing control motor 1 phase 1 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 44 (W) | 3 (B) | Electric intake valve timing control motor 2 phase 1 | Input/Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
