Component Location

Engine Room Component

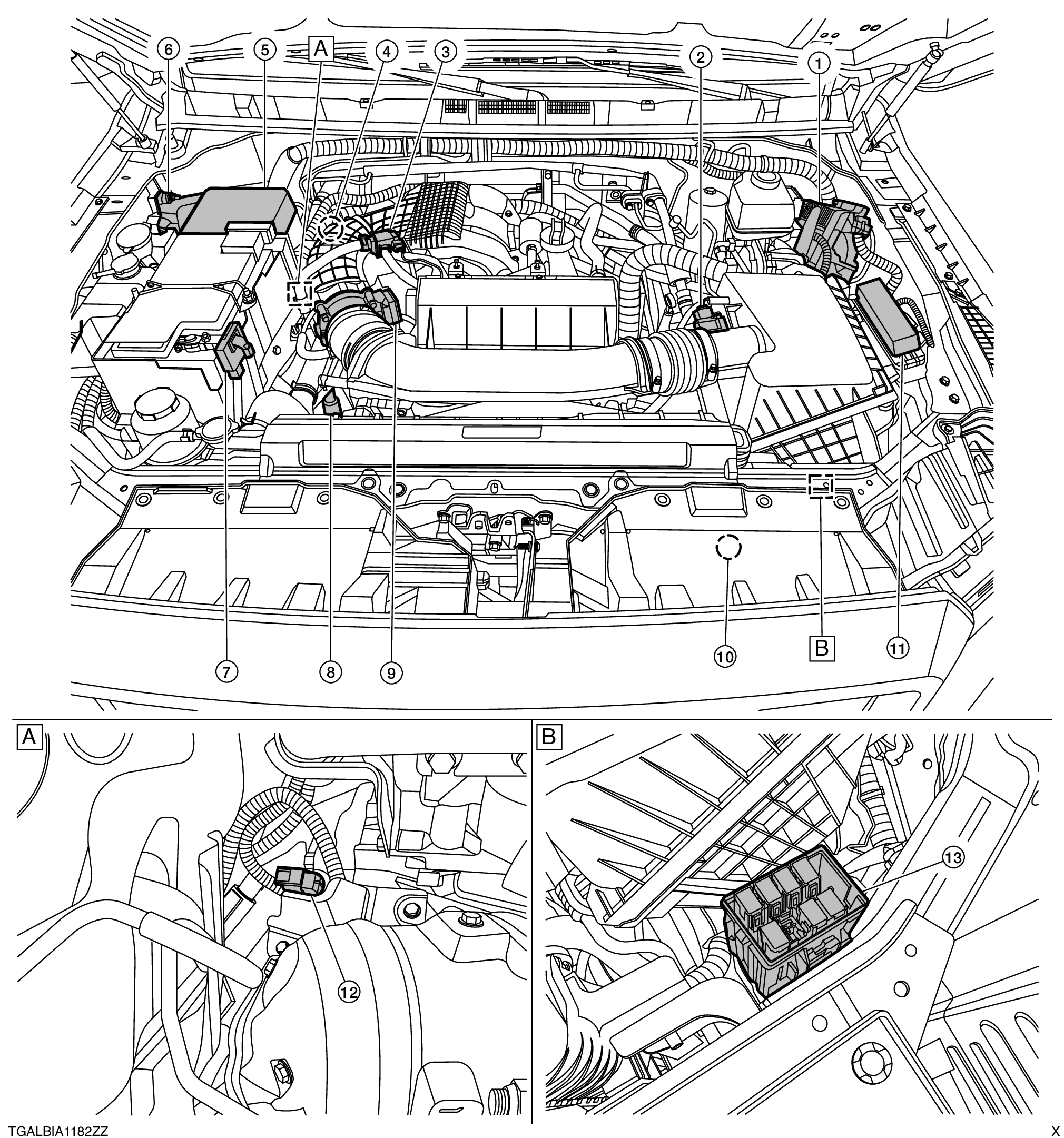

GNSDB136173Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Right side of engine compartment SYMBOL Left front of engine compartment
SYMBOL ECM SYMBOL Mass air flow sensor (with intake air temperature sensor) SYMBOL EVAP canister purge volume control solenoid valve
SYMBOL Engine restart bypass relay SYMBOL IPDM E/R SYMBOL Electric intake valve timing control module
SYMBOL Battery current sensor SYMBOL Power steering pressure sensor SYMBOL Electric throttle control actuator
SYMBOL Refrigerant pressure sensor SYMBOL Relay box SYMBOL Crankshaft position sensor 2
SYMBOL Relay box (Brake hold relay and engine restart bypass control relay)

Body Compartment

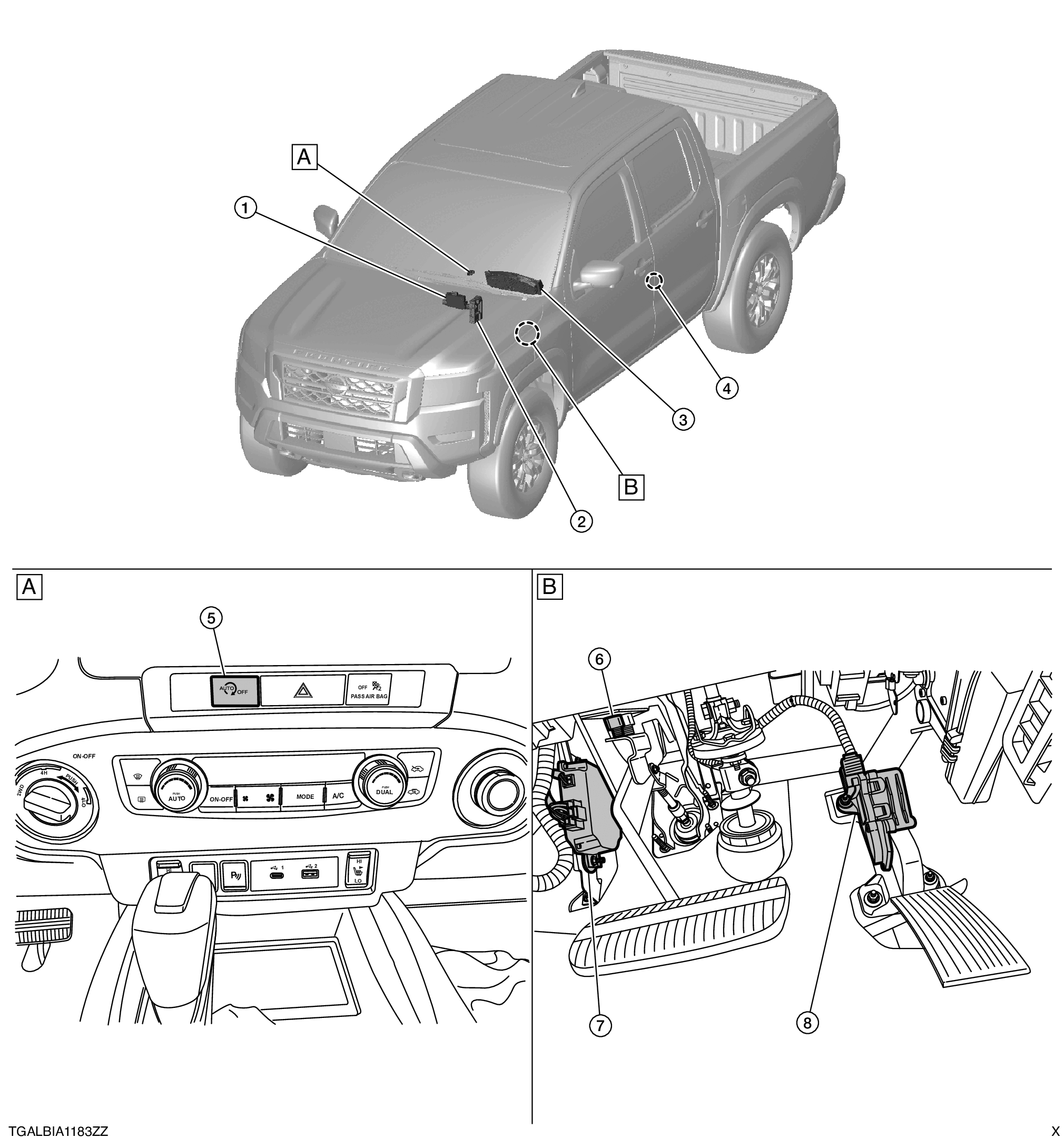

GNSDB135157Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Instrument panel periphery SYMBOL Pedal periphery
SYMBOL A/C auto amp. SYMBOL BCM SYMBOL Combination meter
SYMBOL Door switch (driver side) SYMBOL Start/Stop OFF switch SYMBOL Stop lamp switch
SYMBOL DC/DC converter SYMBOL Accelerator pedal position sensor
