Exhaust Gas Temperature Sensor

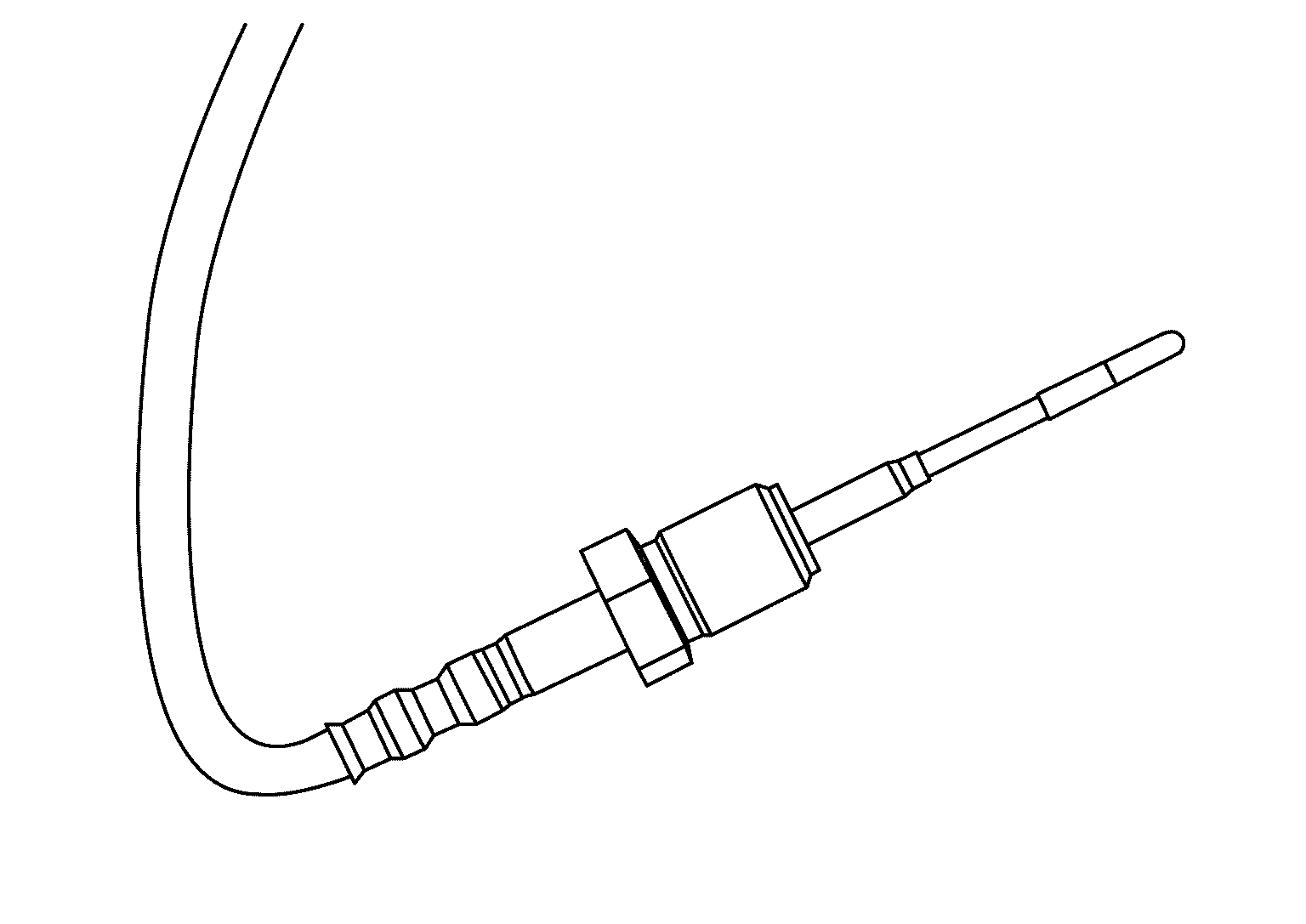

Exhaust gas temperature sensor (EGT sensor) is installed exhaust manifold. Exhaust gas temperature sensor uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the temperature rises.

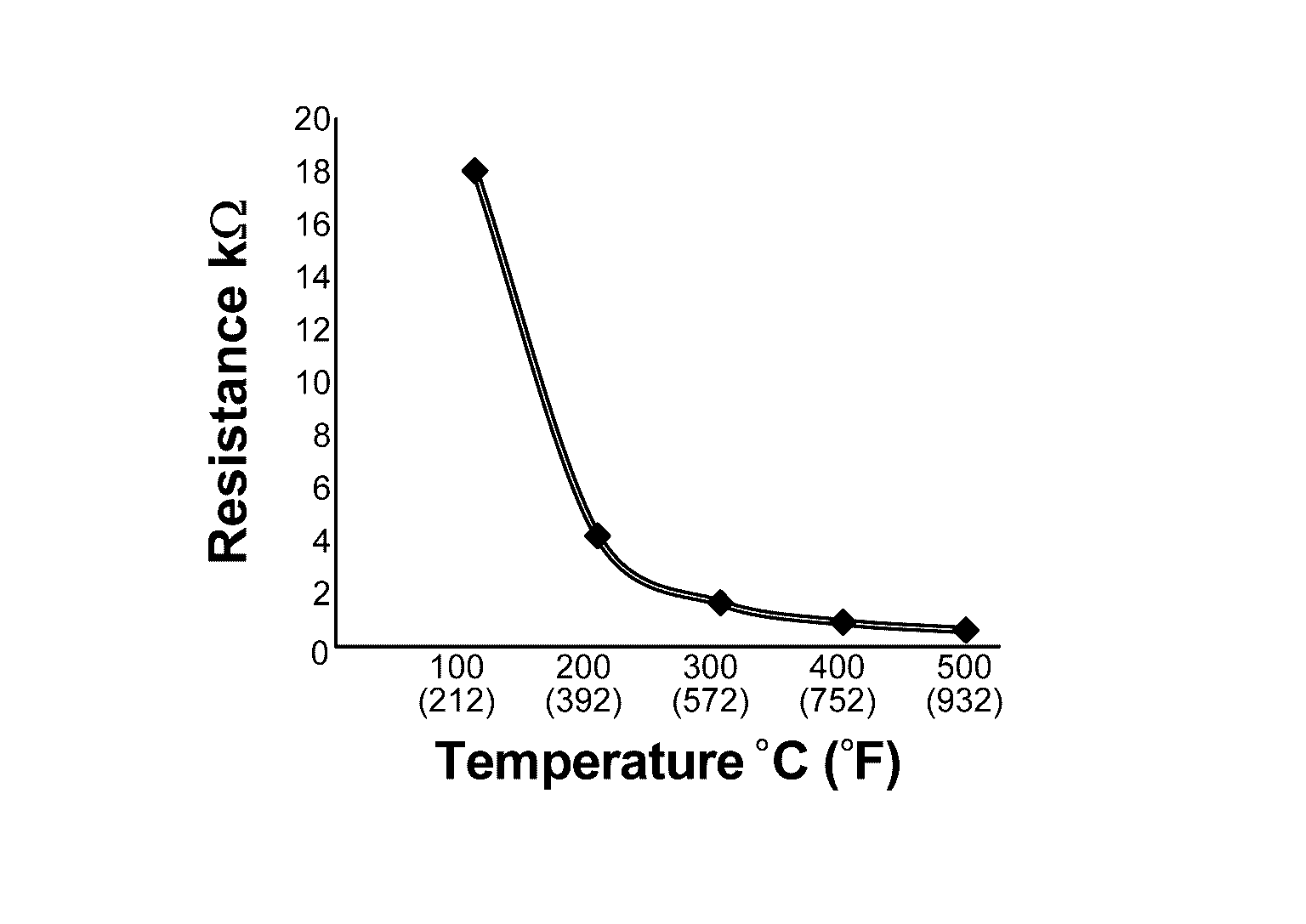

<Reference data>
| Fluid temperature [°C (°F) ] | Resistance (kΩ) |
|---|---|
| 100 (212) | 18.2 |
| 200 (392) | 4.0 |
| 300 (572) | 1.4 |
| 400 (752) | 0.65 |
| 500 (932) | 0.35 |
