Exploded View

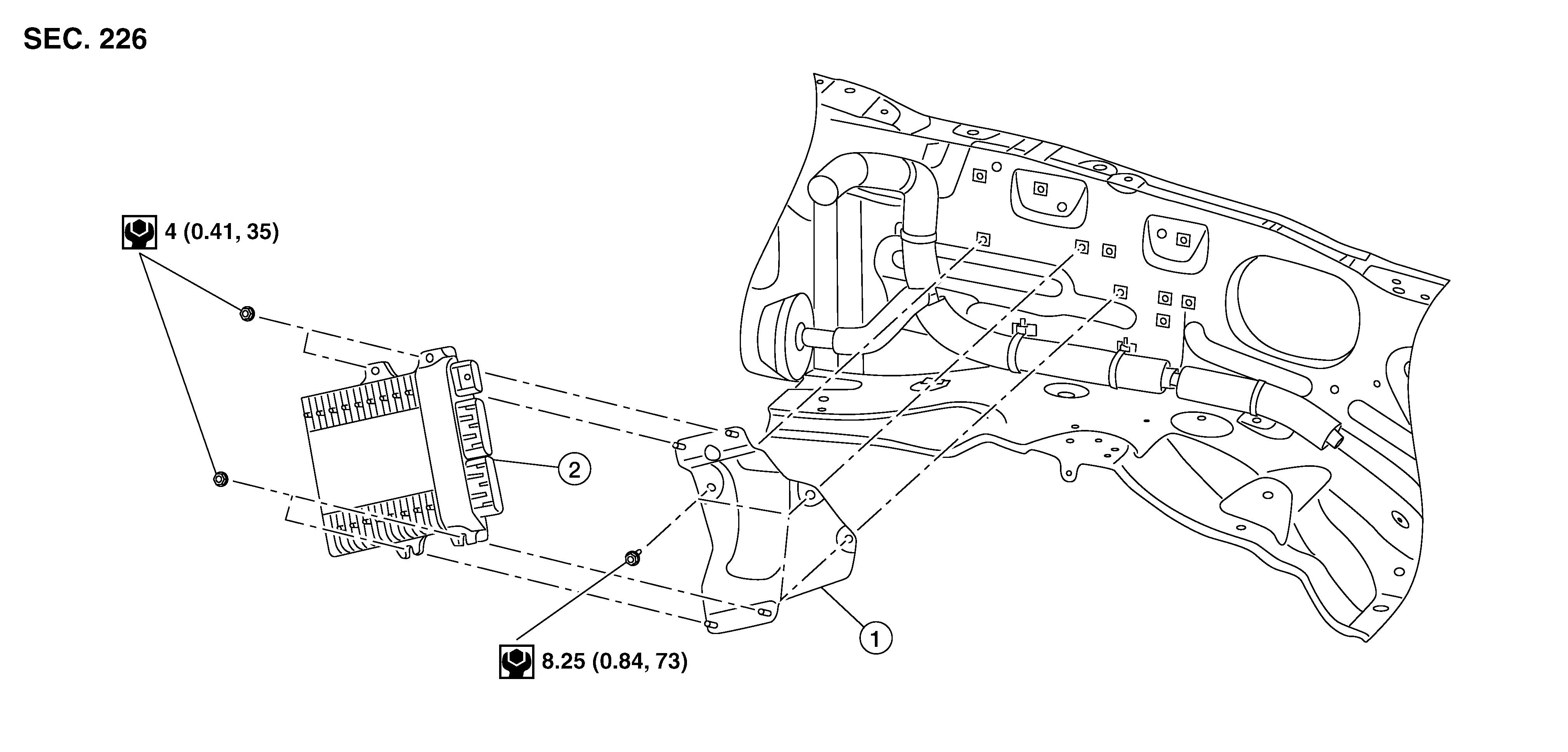

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications
GNSDB134874Courtesy of NISSAN NORTH AMERICA, INC.
1. Electric intake valve timing control module bracket 2. Electric intake valve timing control module
