Exploded View

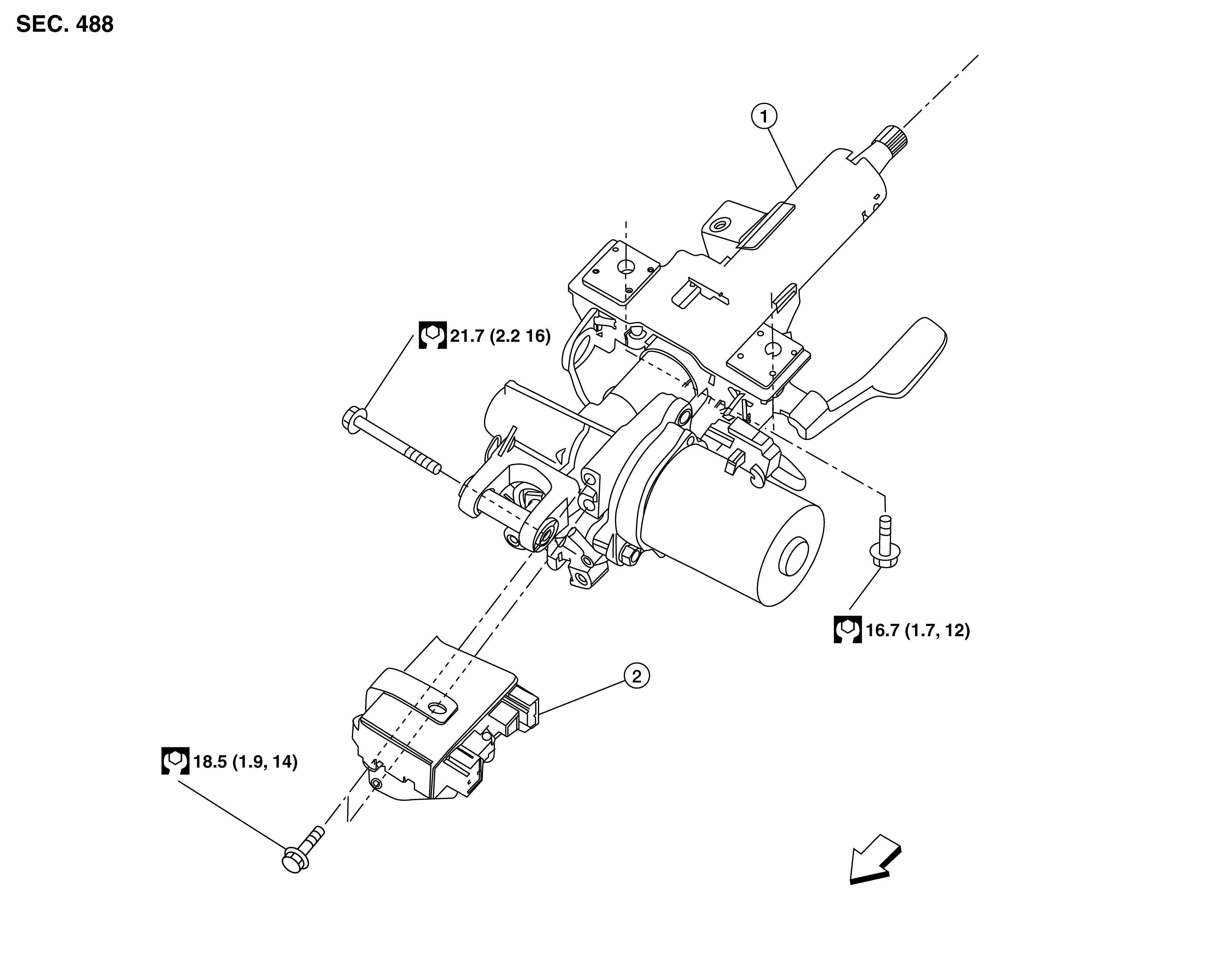

Fig 1: EPS Control Unit With Torque Specifications
GNSDB110354Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. EPS control unit SYMBOL Front
