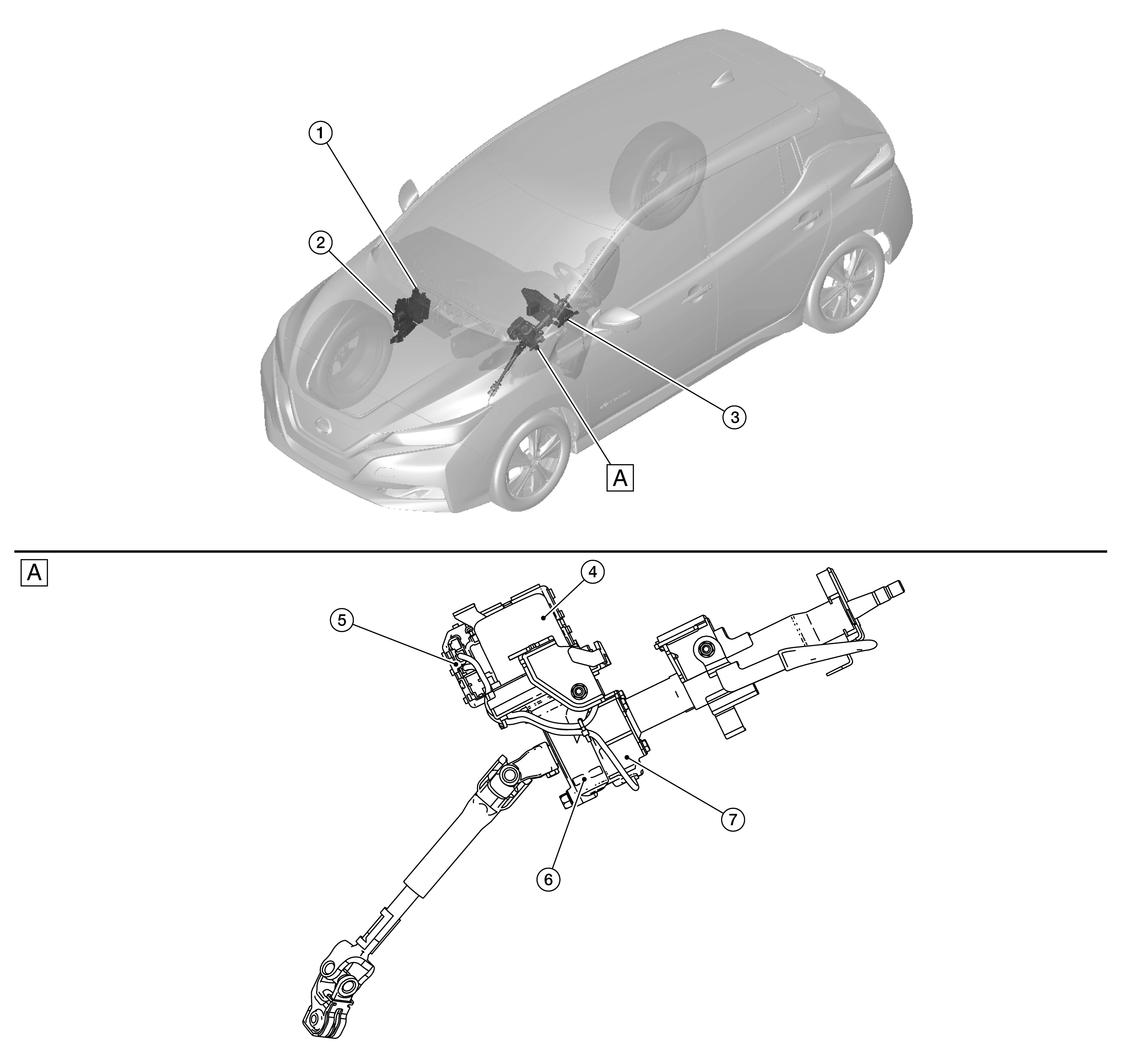

Component Location
| A. | View of steering column assembly removed |
| No. | Component | Function |
|---|---|---|
| 1. | VCM (Vehicle Control Module) | Transmits mainly the following signal to EPS control unit via CAN communication:
Refer to Component Location (60 kWh Li-ion battery) or Component Location (40 kWh Li-ion battery) for detailed component location. |
| 2. | ABS (Ant-lock Braking System) actuator and electric unit (control unit) | Transmits mainly the following signal to EPS control unit via CAN communication:
Refer to Component Location for detailed component location. |
| 3. | Combination meter (EPS warning lamp) | Transmits mainly the following signal to EPS control unit via CAN communication:
Refer to Component Location for detailed component location. Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication. Refer to System Description . |
| 4. | EPS motor | Refer to Component Description . |
| 5. | EPS (Electric Power Steering) control unit | Refer to Component Description . |
| 6. | Reduction gear | Refer to Component Description . |
| 7. | Torque sensor | Refer to Component Description . |
