Component Location

2WD MODELS

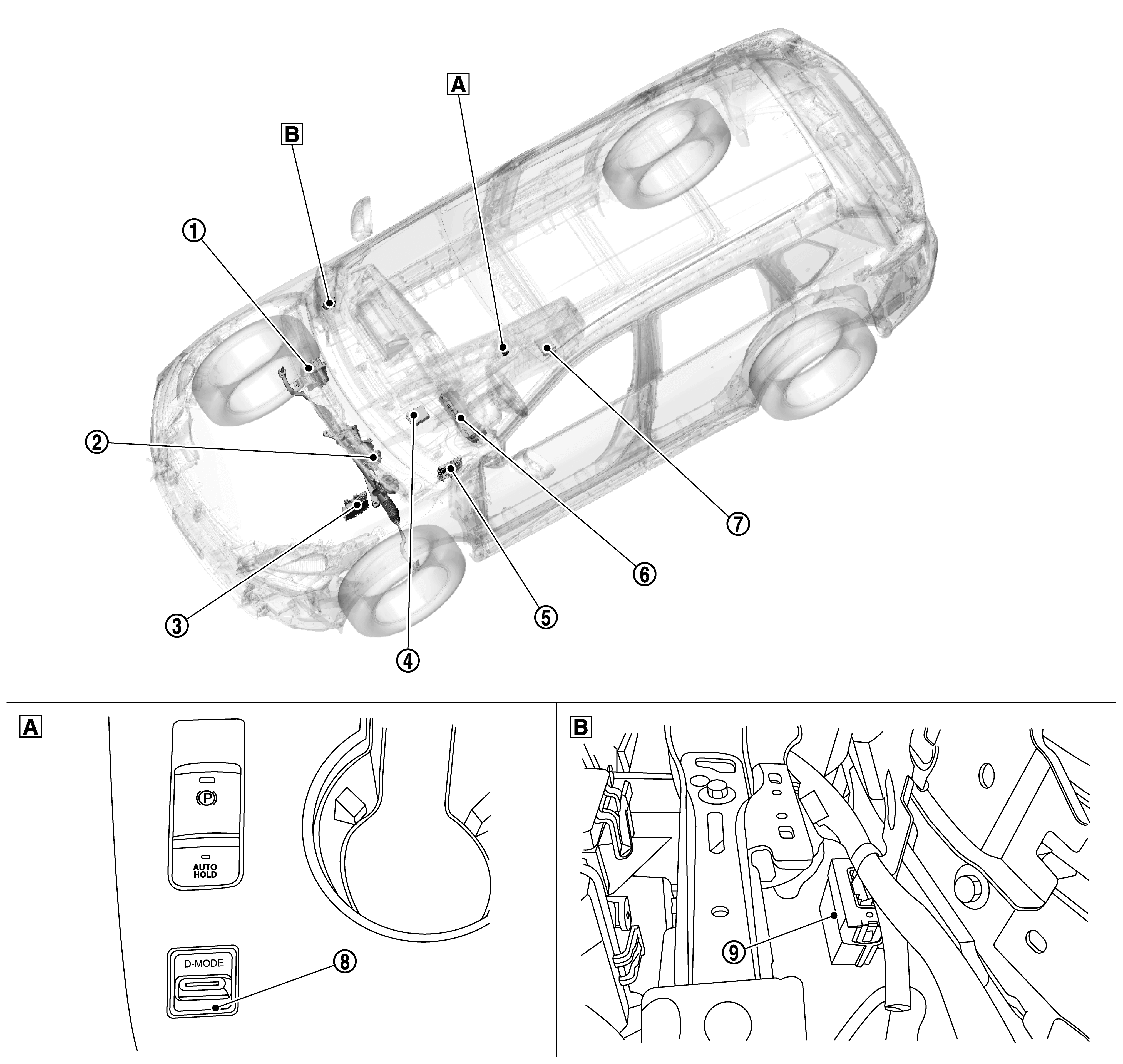

GNSDB130356Courtesy of NISSAN NORTH AMERICA, INC.
A Center console finisher B Upside of instrument lower panel RH
1. ABS (Anti-lock Braking System) actuator and electric unit (control unit). Refer to ABS Actuator and Electric Unit (Control Unit) for detailed installation location. 2. Power steering control unit. Refer to Component Location for detailed installation location. 3. ECM. (Engine Control Module). Refer to Component Location for detailed installation location.
4. TCM. (Transmission Control Module). Refer to Component Location for detailed installation location. 5. BCM. (Body Control Module). Refer to Component Location for detailed installation location. 6. Combination meter. Refer to Component Location (full TFT meter) or Component Location (7 inch information display) for detailed installation location.
7. ADAS. (Advanced Driver Assistance System) control unit 2. Refer to Component Location for detailed installation location. 8. Drive mode select switch 9. Chassis control module. Refer to Component Location for detailed installation location.

AWD MODELS

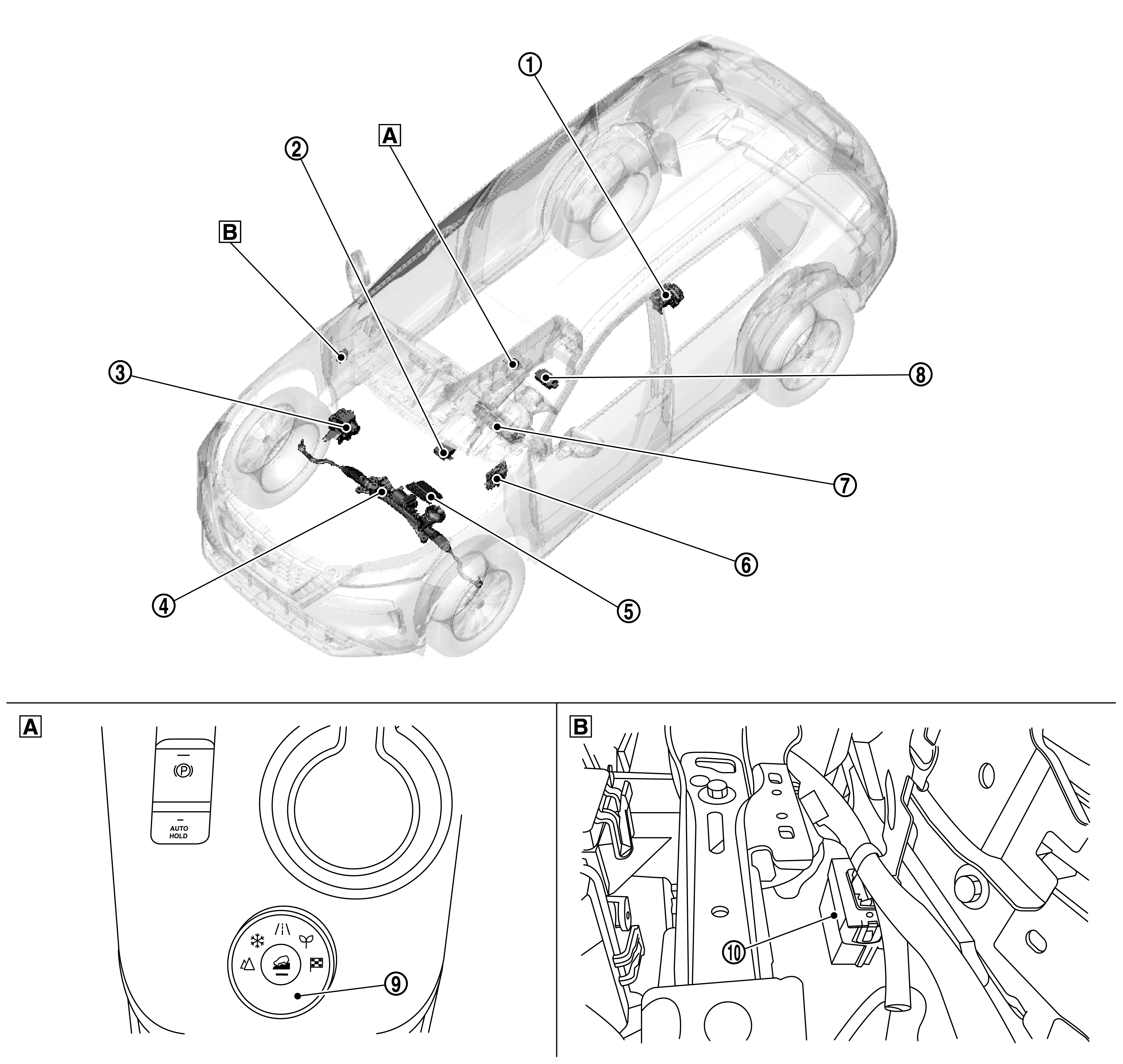

GNSDB131388Courtesy of NISSAN NORTH AMERICA, INC.
A Center console finisher B Inside of dash side finisher LH
1. AWD control unit. Refer to Component Location for detailed installation location. 2. TCM (Transmission Control Module). Refer to Component Location for detailed installation location. 3. ABS (Anti-lock Braking System) actuator and electric unit (control unit). Refer to Component Location for detailed installation location.
4. Power steering control module. Refer to Component Location for detailed installation location. 5. ECM (Engine Control Module). Refer to Component Location for detailed installation location. 6. BCM (Body Control Module). Refer to Component Location for detailed installation location.
7. Combination meter. Refer to Component Location (full TFT meter) or Component Location (7 inch information display) for detailed installation location. 8. ADAS (Advanced Driver Assistance System) control unit 2. Refer to Component Location for detailed installation location. 9. Drive mode select switch
10. Chassis control module. Refer to Component Location for detailed installation location. - - - -
