Component Location

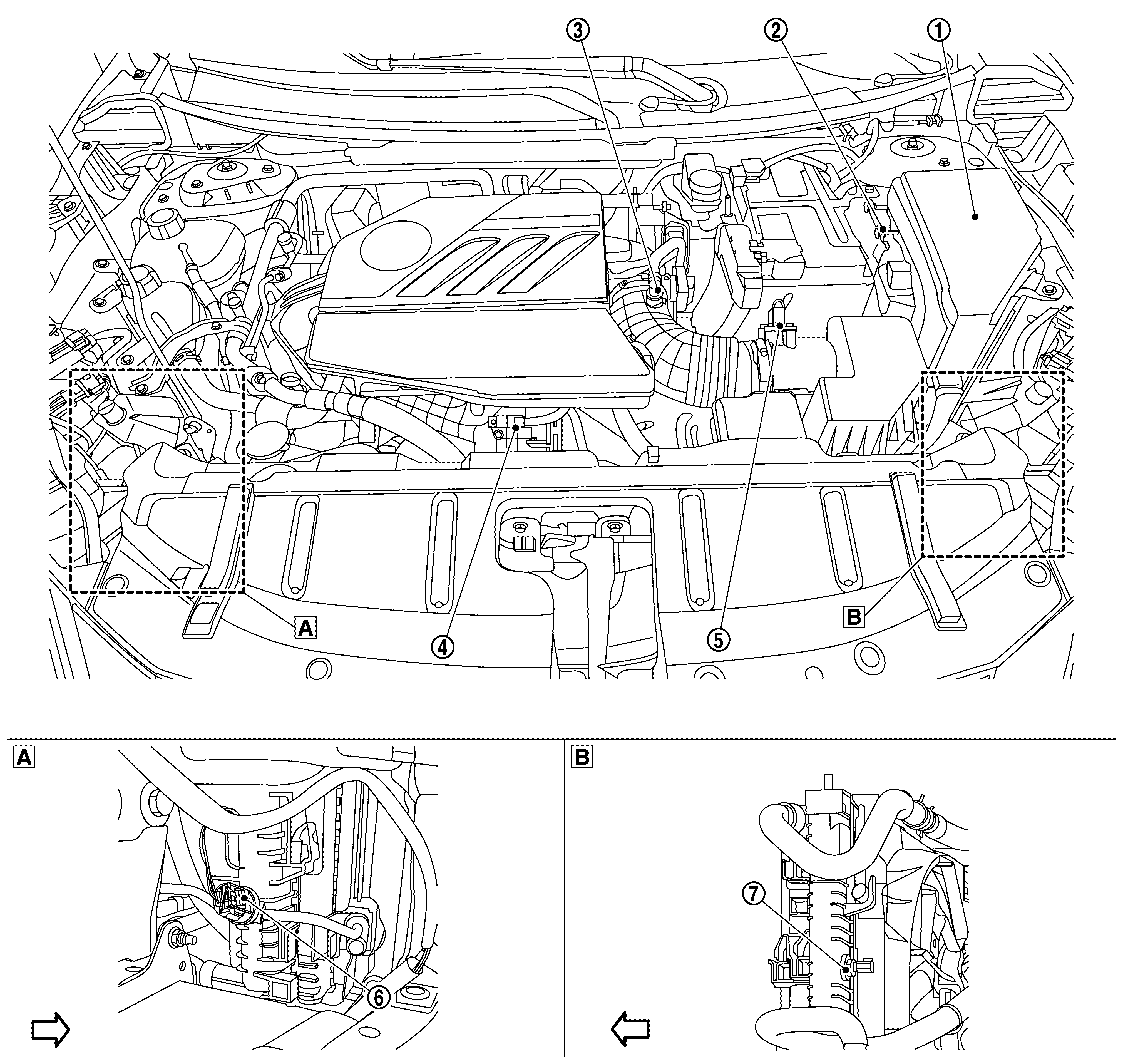

ENGINE ROOM COMPARTMENT

GNSDB131486Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Right front of vehicle SYMBOL Left front of vehicle
SYMBOL Vehicle front
SYMBOL IPDM E/R SYMBOL ECM SYMBOL Admission valve
SYMBOL Turbocharger boost sensor (With intake air temperature sensor 2) SYMBOL Mass air flow sensor SYMBOL Refrigerant pressure sensor
SYMBOL Engine coolant temperature sensor 2

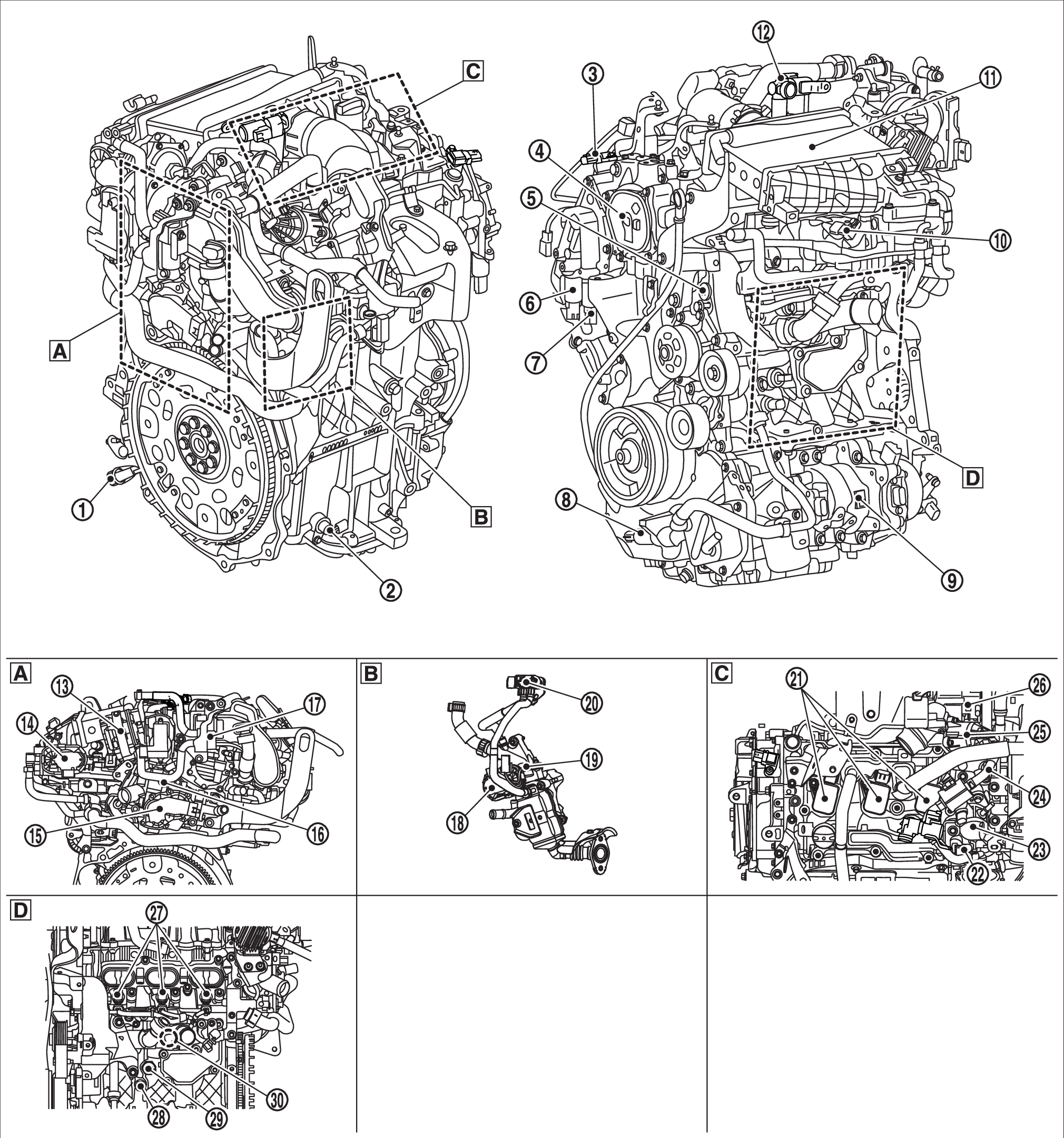

ENGINE COMPARTMENT

GNSDB131879Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Rear view of the engine SYMBOL Side view of the engine SYMBOL Top view of the engine
SYMBOL Side view of the engine (view with intake manifold is removed)
SYMBOL Crankshaft position sensor SYMBOL Engine oil level sensor SYMBOL Crankcase Pressure Sensor
SYMBOL Electric intake valve timing control actuator SYMBOL Fuel rail pressure sensor SYMBOL Exhaust valve timing control solenoid valve
SYMBOL Exhaust valve timing intermediate lock control solenoid valve SYMBOL Engine oil pressure control solenoid valve SYMBOL VCR actuator
SYMBOL Manifold absolute pressure (MAP) sensor SYMBOL Water charge air cooler SYMBOL Crankcase Ventilation Valve
SYMBOL EVAP canister electric purge pump SYMBOL Electric throttle control actuator SYMBOL Multi-way control valve
SYMBOL Engine coolant temperature sensor 1 SYMBOL EVAP canister purge volume control solenoid valve SYMBOL EGR volume control valve
SYMBOL EGR temperature sensor SYMBOL EGR differential pressure sensor SYMBOL Ignition coil (with power transistor)
SYMBOL Intake camshaft position sensor SYMBOL High pressure fuel pump SYMBOL Exhaust camshaft position sensor
SYMBOL Electric wastegate control actuator SYMBOL Turbocharger bypass control valve SYMBOL Fuel injector
SYMBOL Engine oil temperature sensor SYMBOL Engine oil pressure sensor SYMBOL Knock sensor

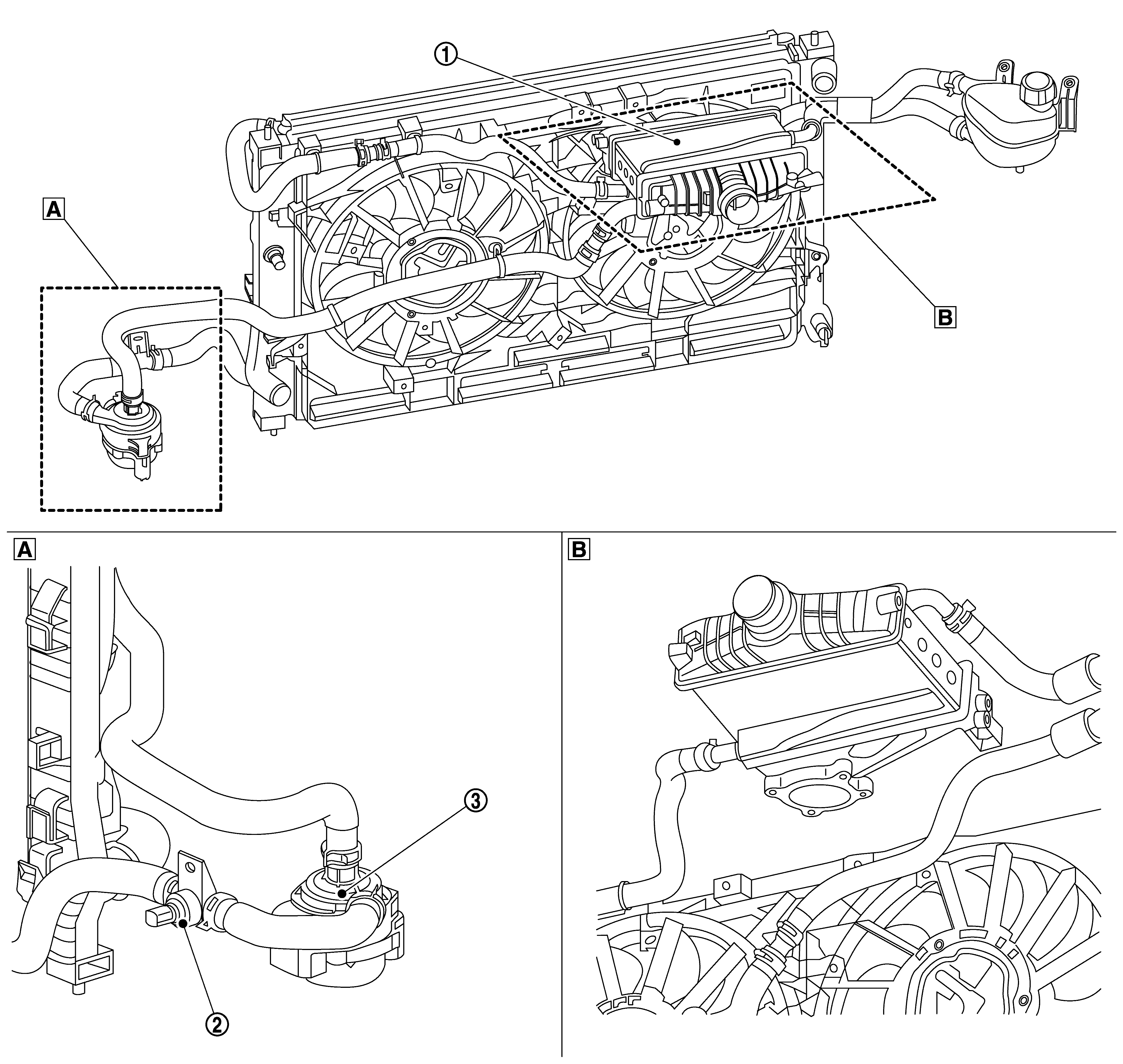

CHARGE AIR COOLER COOLING SYSTEM COMPONENT

GNSDB131616Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Left front of vehicle SYMBOL Top view of the engine
SYMBOL Charge air cooler SYMBOL Charge air cooler coolant temperature sensor SYMBOL Charge air cooler electric water pump

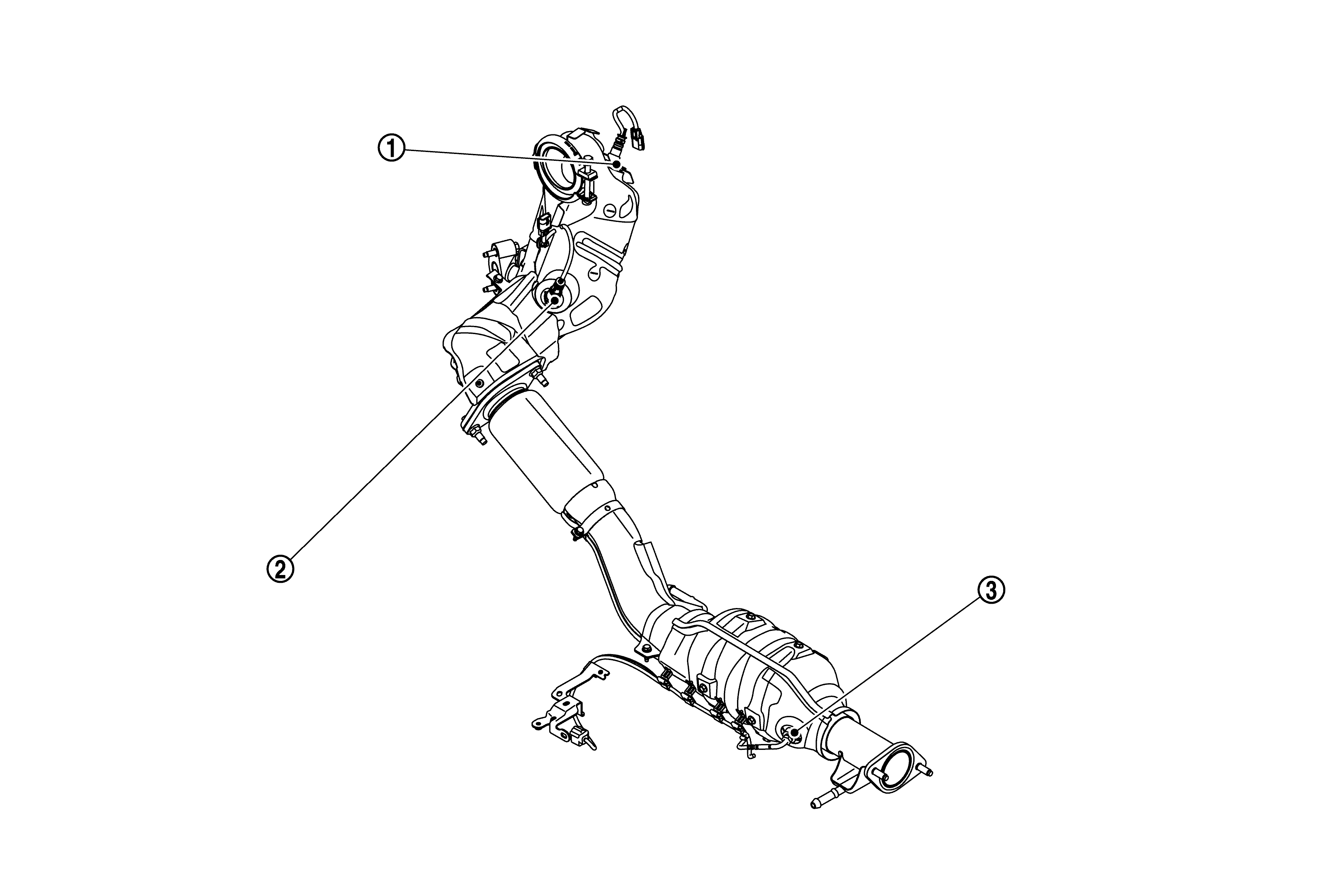

EXHAUST COMPARTMENT

GNSDB131343Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Air fuel ratio (A/F) sensor 1 SYMBOL Heated oxygen sensor 2 SYMBOL Exhaust gas temperature sensor

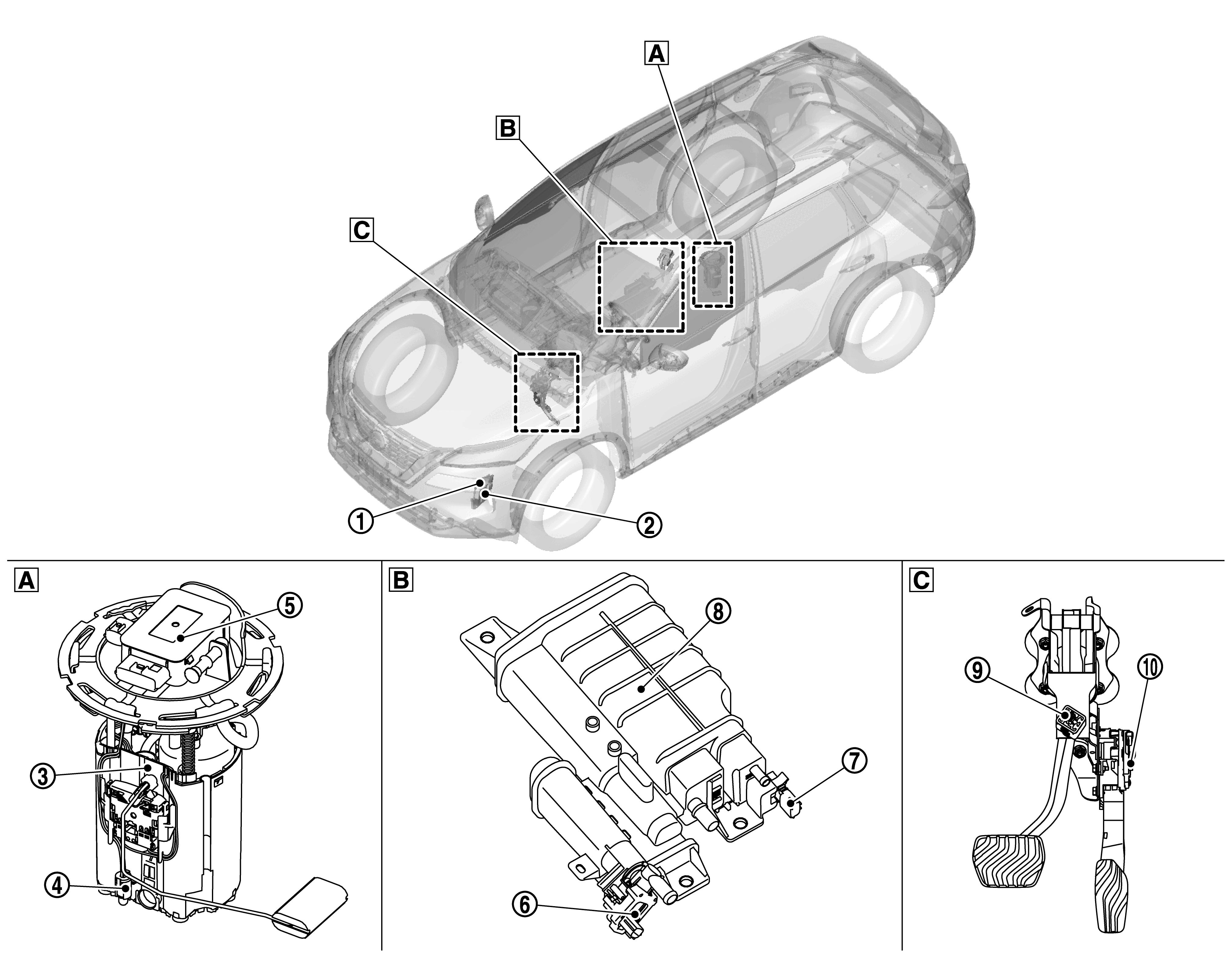

BODY COMPARTMENT

GNSDB131462Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Inside fuel tank area SYMBOL Front of fuel tank area SYMBOL Accelerator pedal area
SYMBOL Electric intake valve timing control module SYMBOL VCR control module SYMBOL Fuel pump
SYMBOL Fuel level sensor unit SYMBOL FPCM (Fuel pump control module) SYMBOL EVAP canister vent control valve
SYMBOL EVAP control system pressure sensor SYMBOL EVAP canister SYMBOL Stop lamp switch
SYMBOL Accelerator pedal position sensor
