Component Location

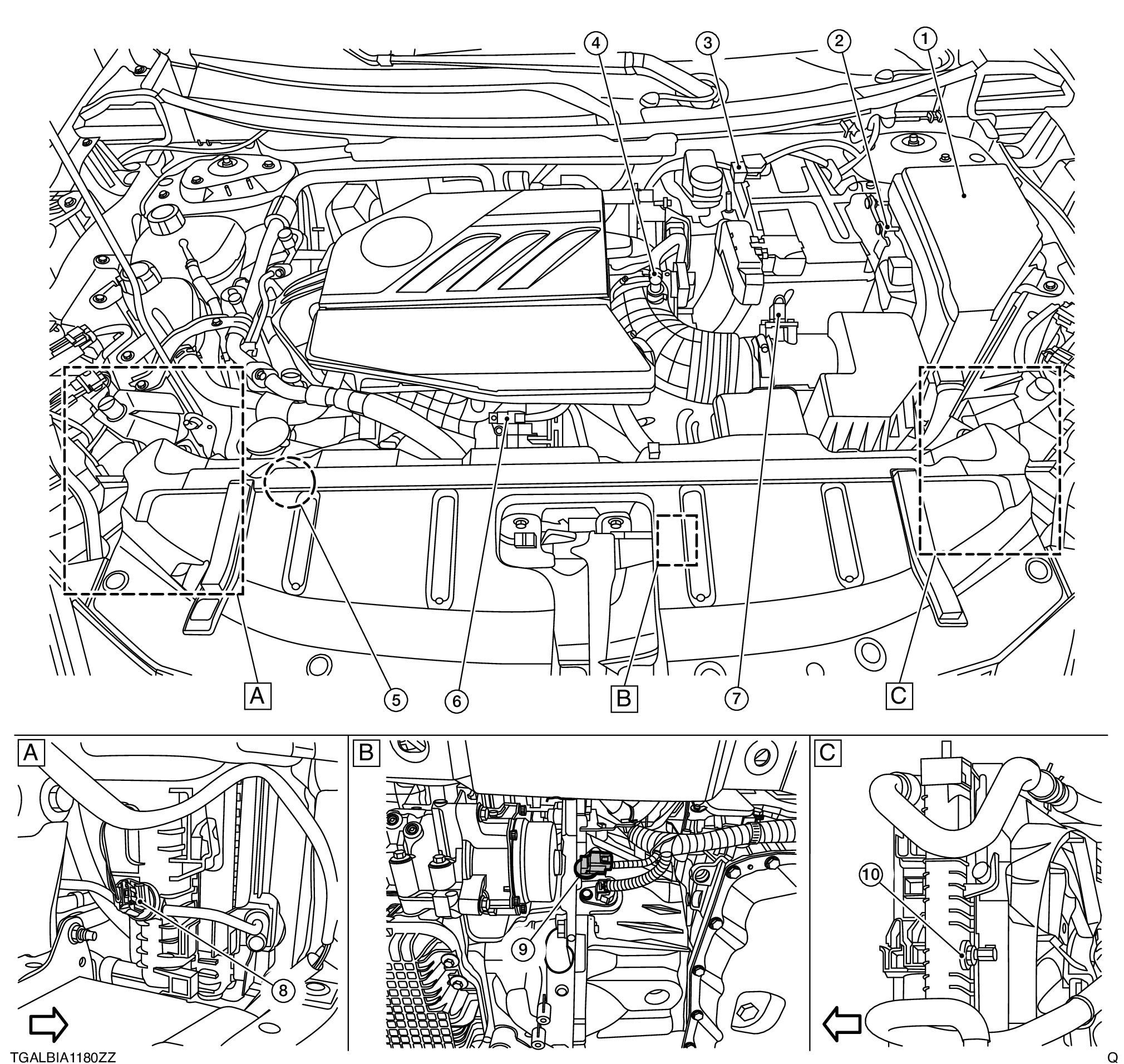

Engine Room Component

GNSDB132644Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Right front of vehicle SYMBOL Lower center front of vehicle SYMBOL Left front of vehicle
SYMBOL IPDM E/R SYMBOL ECM SYMBOL Battery current sensor
SYMBOL Admission valve SYMBOL Sub-starter and generator SYMBOL Turbocharger boost sensor (With intake air temperature sensor 2)
SYMBOL Mass air flow sensor SYMBOL Refrigerant pressure sensor SYMBOL Crankshaft position sensor 2
SYMBOL Engine coolant temperature sensor 2

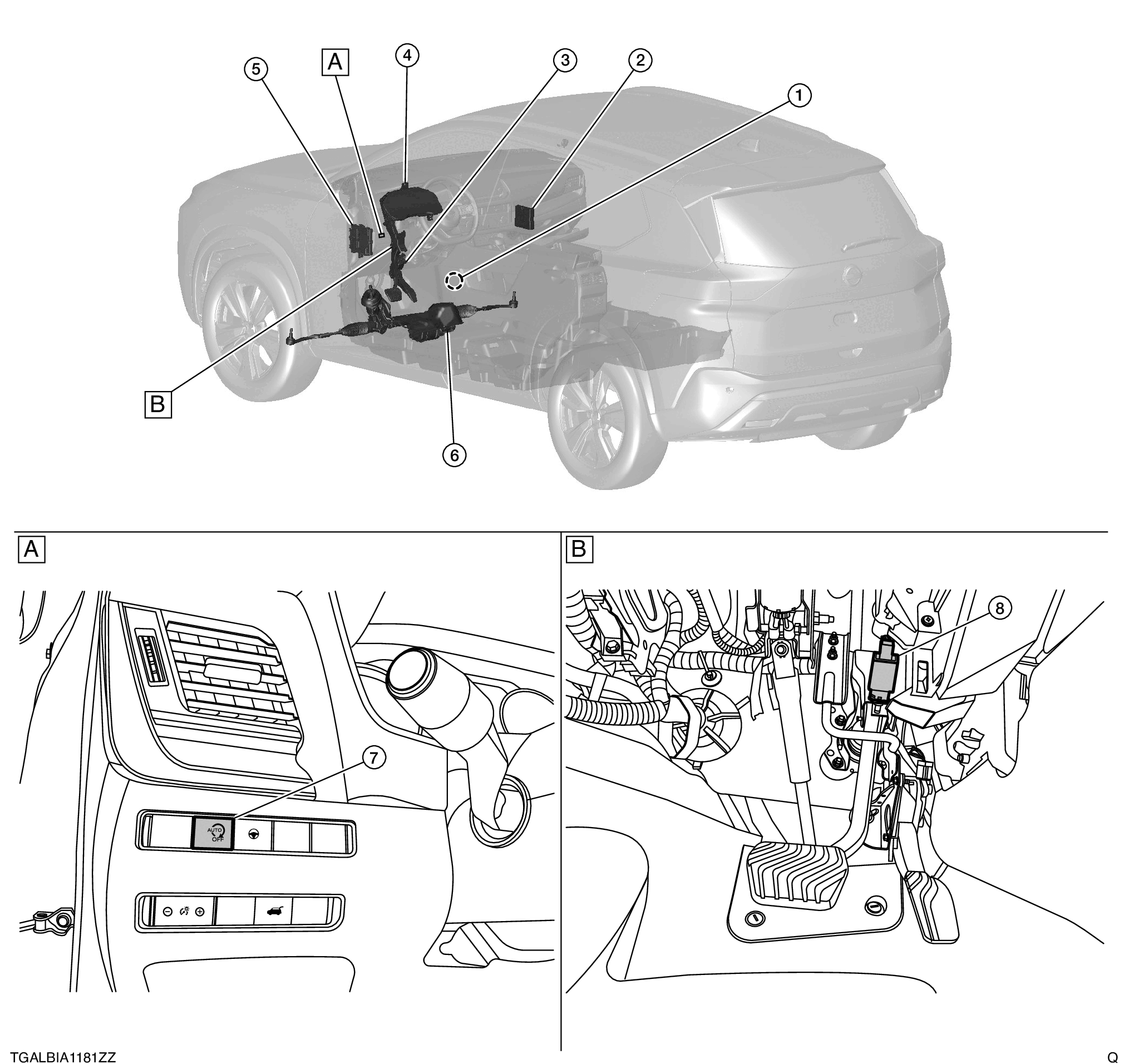

Body Compartment

GNSDB129534Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Left side of steering column SYMBOL Pedal periphery
SYMBOL Door switch (driver side) SYMBOL A/C auto amp. SYMBOL Accelerator pedal position sensor
SYMBOL Combination meter SYMBOL BCM SYMBOL Power steering control module
SYMBOL Stop/start OFF switch SYMBOL Stop lamp switch
