Stop/Start warning
PURPOSE
The combination meter alerts the driver by sounding the integrated buzzer and blinking the indicator lamp when the driver's operation is judged as improper operation while the stop/start system is operating.
SYNCHRONIZATION WITH WARNING/INDICATOR (INFORMATION DISPLAY)
Applicable: For warning/indicator (information display), refer to Indicator/Information .

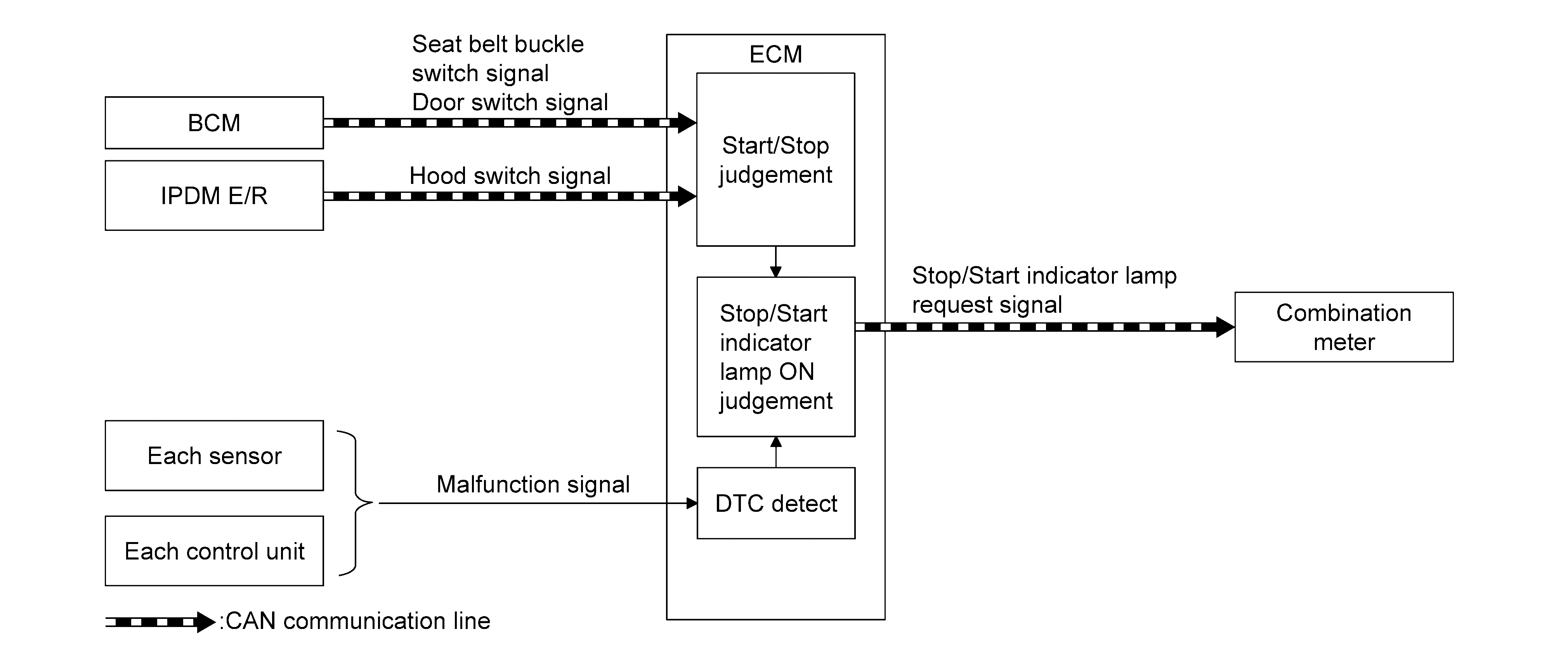

SYSTEM DIAGRAM
SIGNAL PATH
- IPDM E/R transmits a hood switch signal to ECM via CAN communication.
- BCM transmits a door switch signal and Seat belt buckle switch signal to ECM via CAN communication.
- ECM judges a stop/start system warning according to a received signal and transmits a stop/start indicator lamp request signal to the combination meter via CAN communication.
- The combination meter sounds the warning buzzer and blinks the indicator lamp when receiving a stop/start indicator lamp request signal.
WARNING OPERATING CONDITION
When the following conditions are satisfied during stop/start system operation:
- Hood is opened.
NOTE:
The stop/start system is cancelled and the engine stops when the hood is opened. To restart the engine, use the key switch.
WARNING CANCEL CONDITION
- Stop/start system is cancelled after the hood is opened.
- Driver's door is closed.
- Driver's seat belt is buckled.

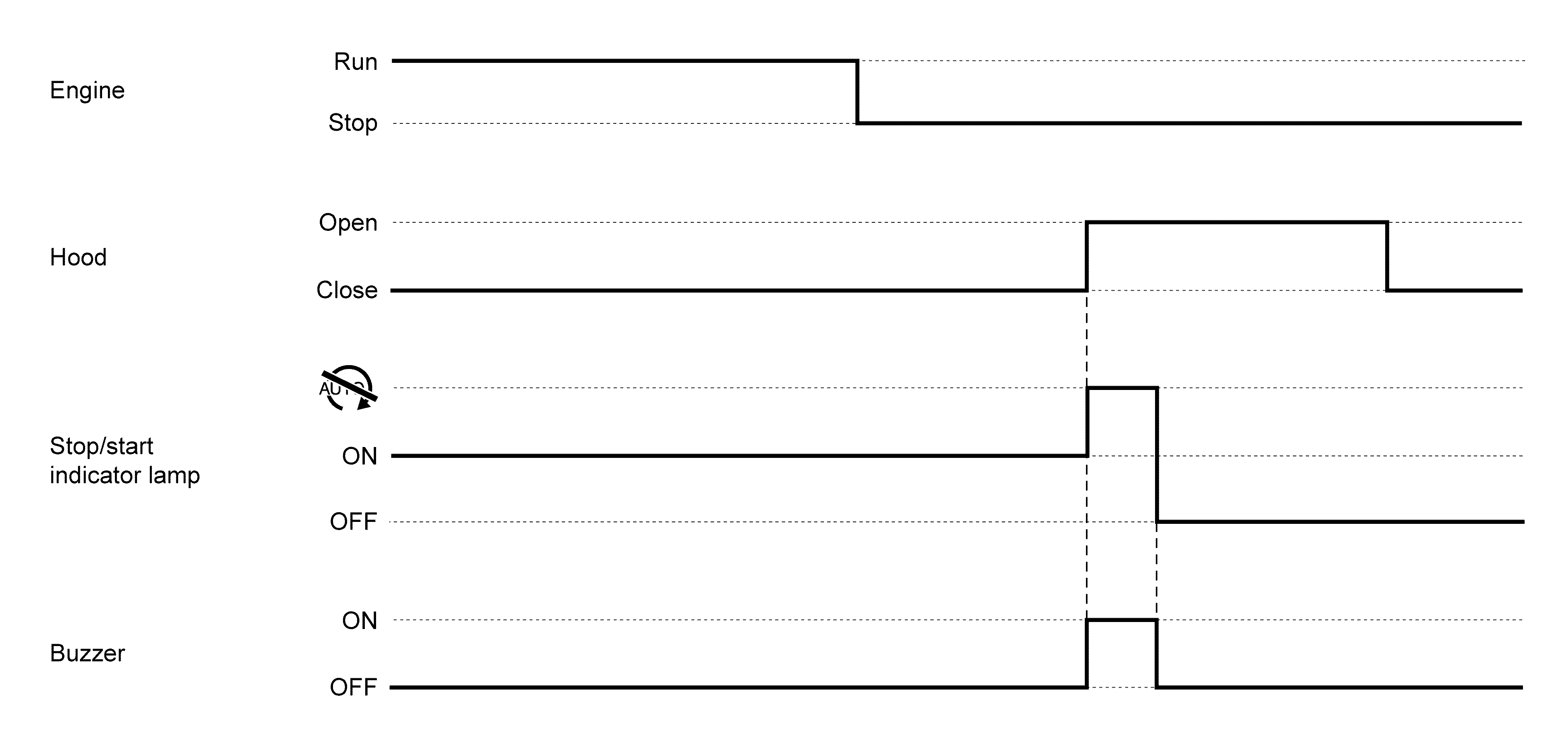

TIMING CHART

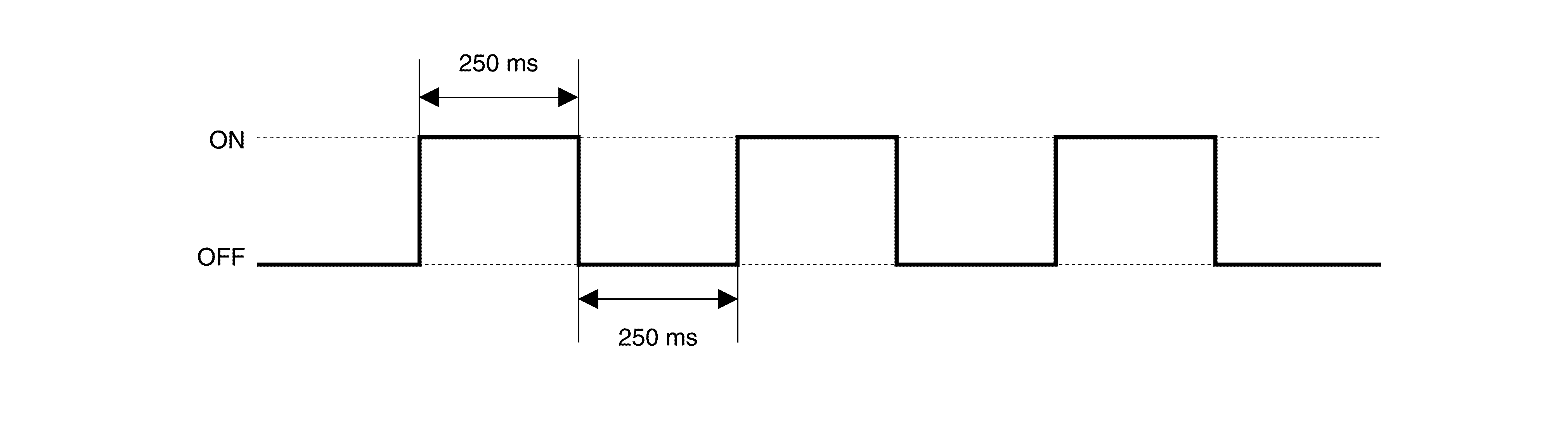

SOUND SPECIFICATION
