ELECTRIC INTAKE VALVE TIMING CONTROL MODULE : Exploded View

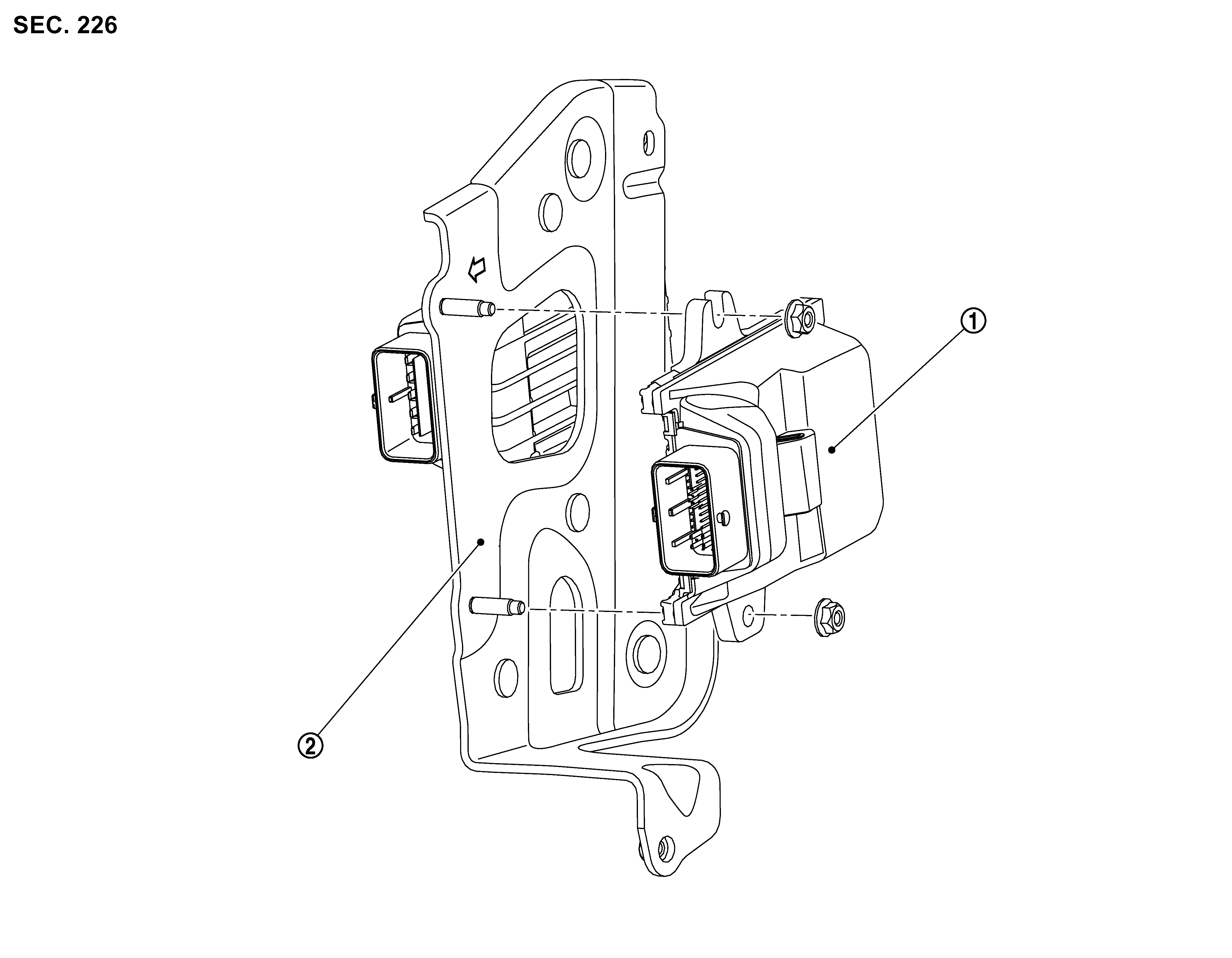

GNSDB129944Courtesy of NISSAN NORTH AMERICA, INC.
1. Electric intake valve timing control module 2. Bracket
