Removal and Installation

REMOVAL

1. Remove shift selector finisher using the following steps:
   • Remove the CVT shift selector knob. Refer to Removal and Installation .

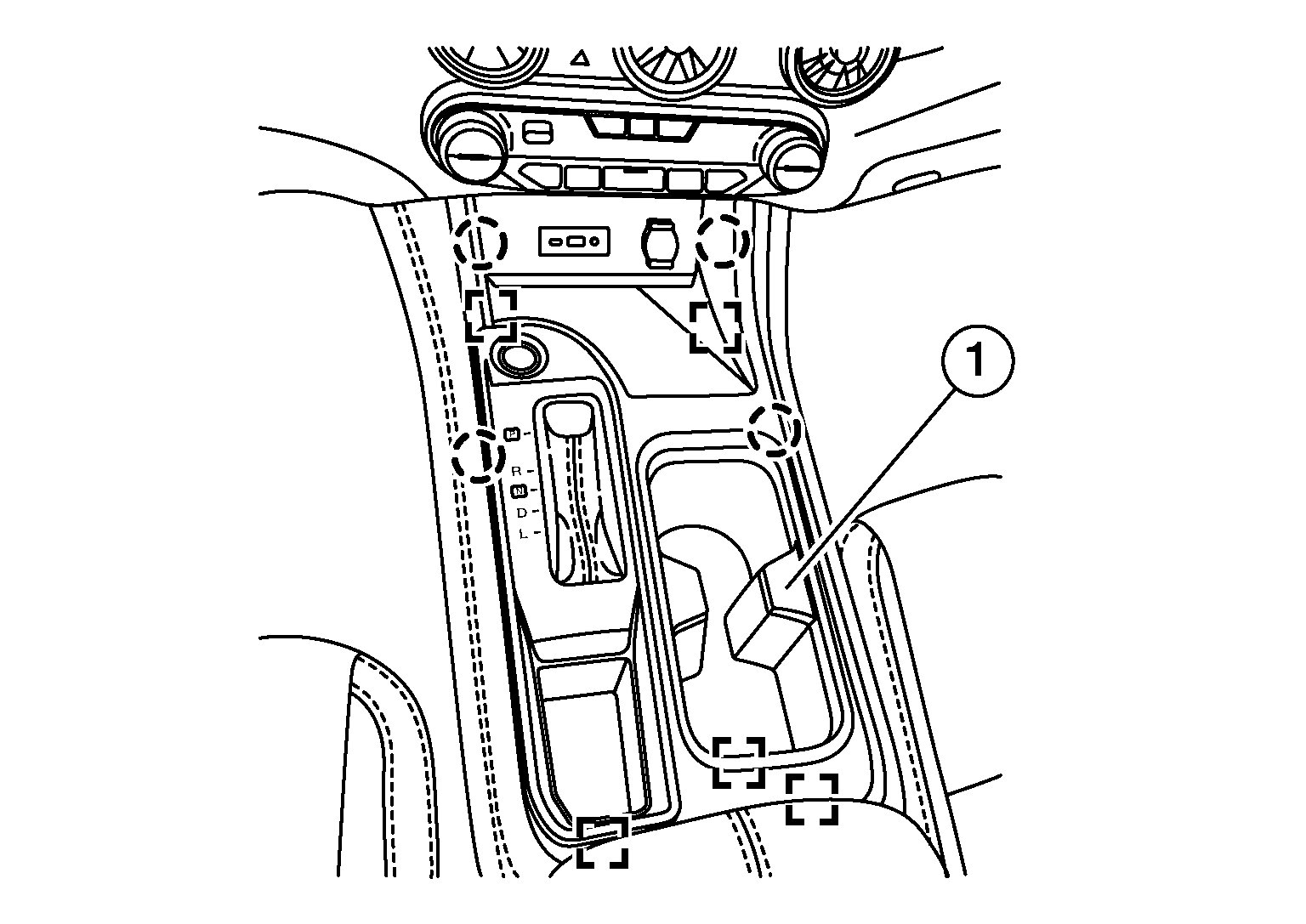

   • Using a suitable tool, release clips and pawls.

     Courtesy of NISSAN NORTH AMERICA, INC.

     : Pawl : Metal clip

   • Disconnect harness connectors and remove the shift selector finisher (1).
   • M/T shift selector knob:

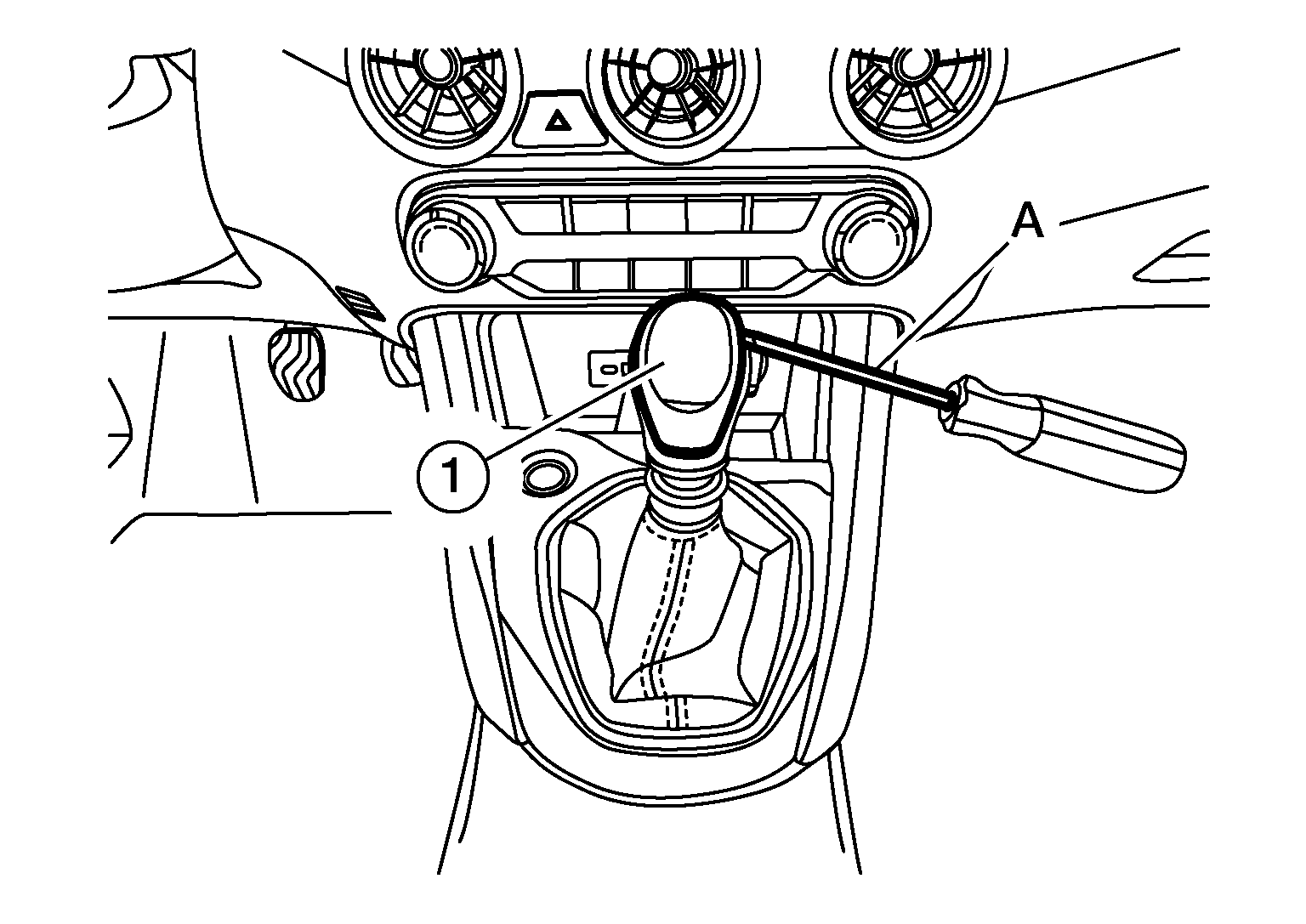

     • Using suitable tool (A), remove shift knob finisher (1).

       Courtesy of NISSAN NORTH AMERICA, INC.

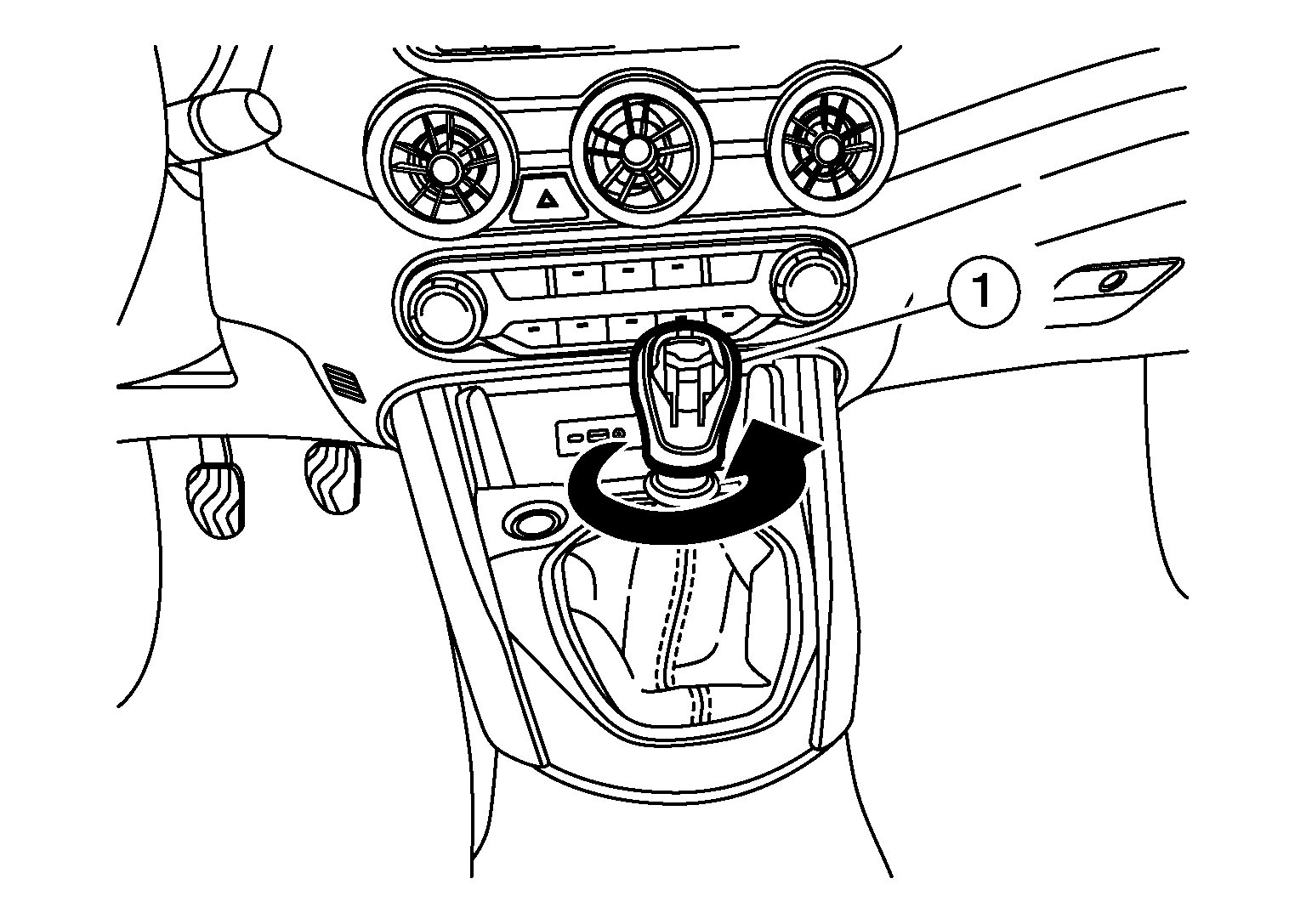

     • Remove shift knob (1) as shown, below.

       Courtesy of NISSAN NORTH AMERICA, INC.

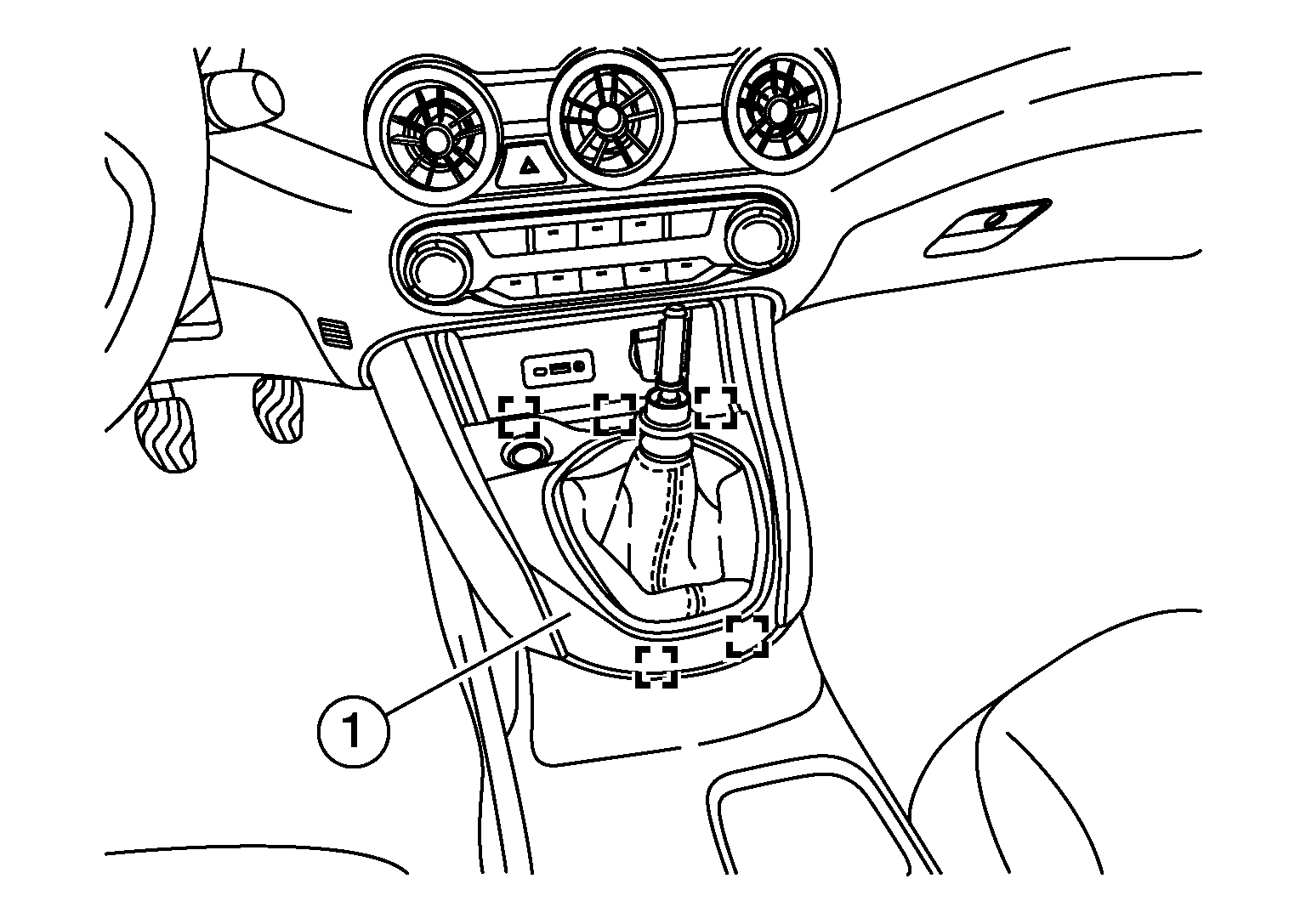

     • Using a suitable tool, release clips of shift selector finisher (1).

       Courtesy of NISSAN NORTH AMERICA, INC.

       : Metal clip

2. Remove shift selector finisher.

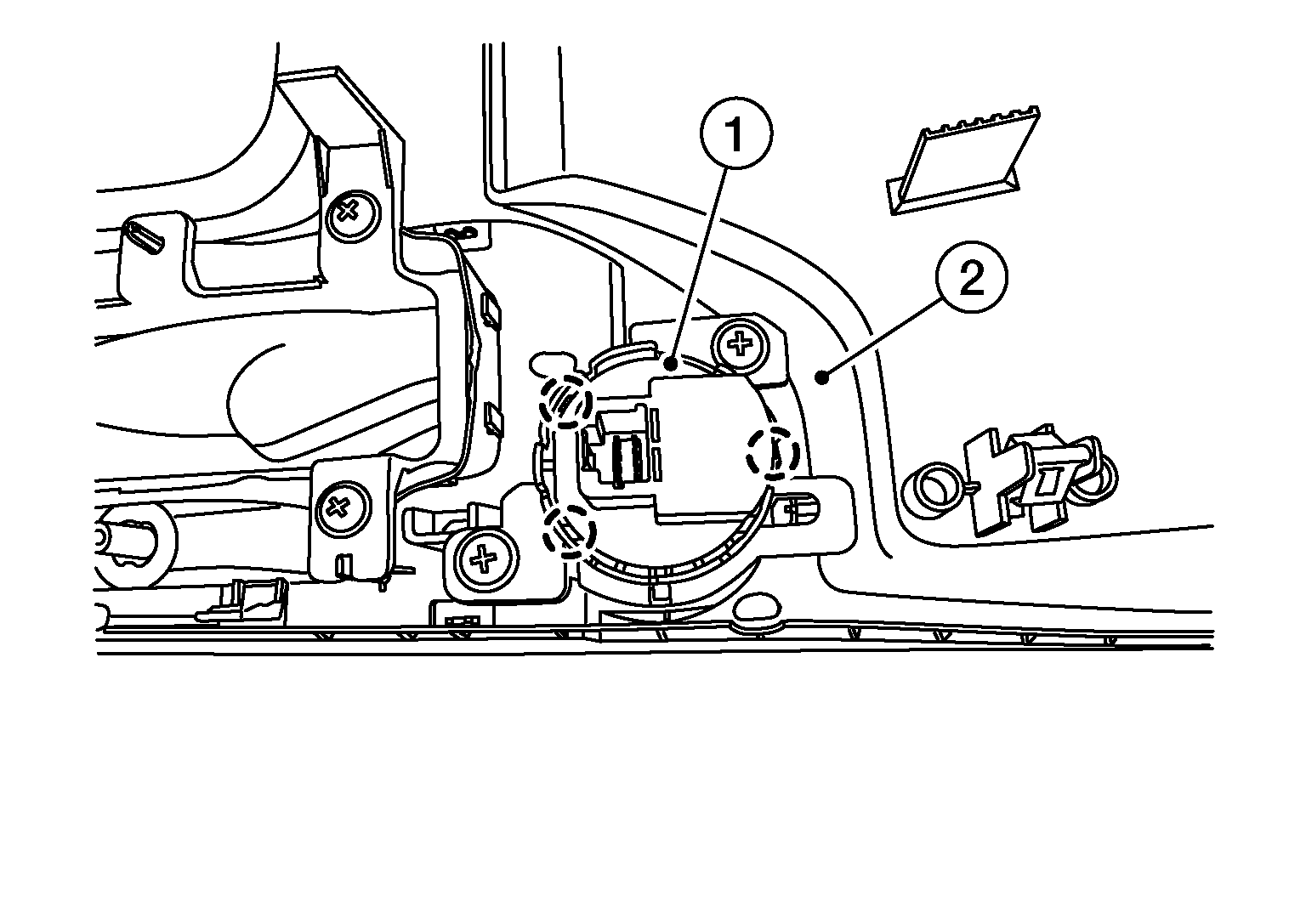

3. Using a suitable tool release pawls and remove push-button ignition switch (1) from shift selector finisher (2).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

   NOTE: CVT shown; M/T similar

INSTALLATION

Installation is in the reverse order of removal.
