Reference Value
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

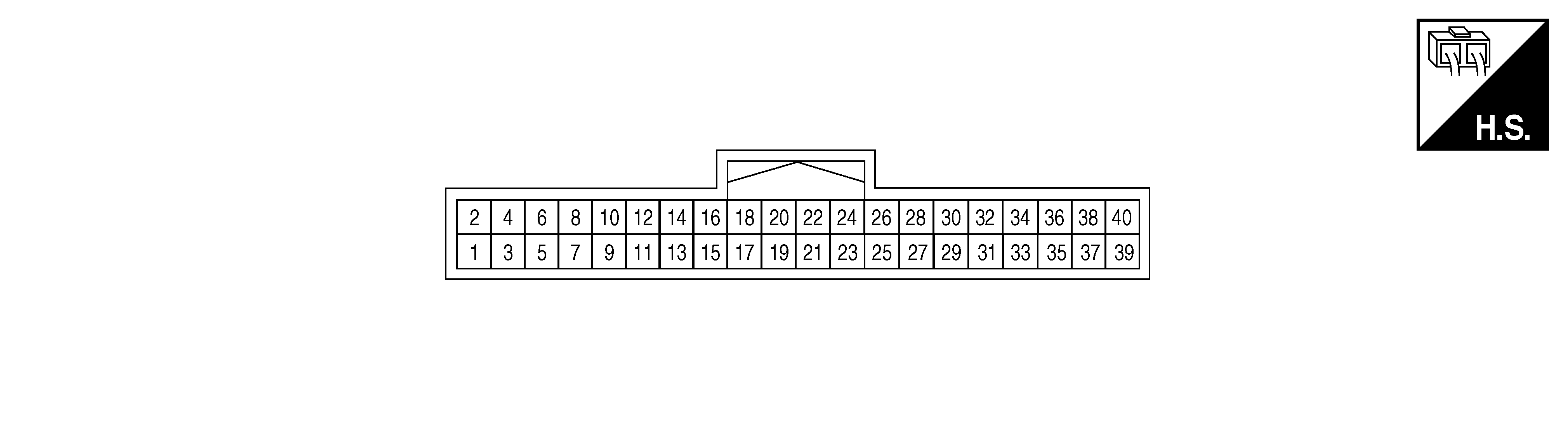

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal (Wire color) | Description | Condition | Reference value (Approx.) | ||
|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | ||
| 3 (Shield) | - | Video output shield | - | - | - |

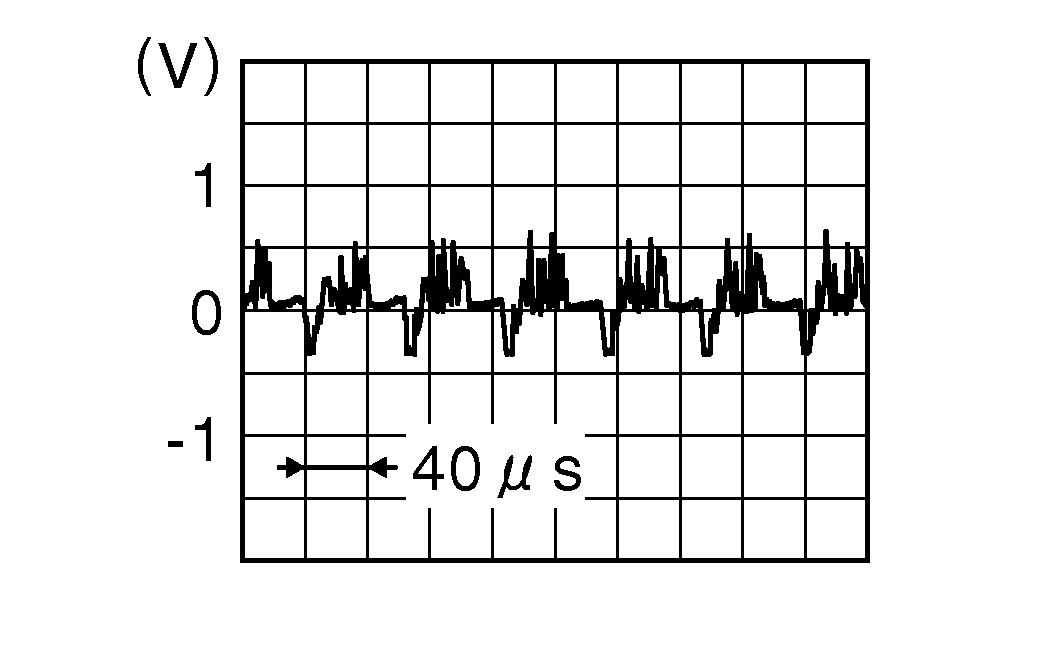

| 4 (B) | Ground | Video output signal | Output | [Ignition switch ON]
|
|
| 5 (B) | - | Front camera ground | - | [Ignition switch ON] | 0 V |
| 6 (Y) | 5 (B) | Front camera power supply | Output | [Ignition switch ON] | 6.0 V |
| 7 (Shield) | - | Front camera video ground | - | [Ignition switch ON] | 0 V |
| 8 (L) | 7 (Shield) | Front camera video signal | Input | [Ignition switch ON]
|
|
| 9 (L) | - | Door mirror RH camera ground | - | [Ignition switch ON] | 0 V |
| 10 (G) | 9 (L) | Door mirror RH camera power supply | Output | [Ignition switch ON] | 6.0 V |
| 11 (Shield) | - | Door mirror RH camera video ground | - | [Ignition switch ON] | 0 V |
| 12 (Y) | 11 (Shield) | Door mirror RH camera video signal | Input | [Ignition switch ON]
|
|
| 13 (L) | - | Door mirror LH camera ground | - | [Ignition switch ON] | 0 V |
| 14 (V) | 13 (L) | Door mirror LH camera power supply | Output | [Ignition switch ON] | 6.0 V |
| 15 (Shield) | - | Door mirror LH camera video ground | - | [Ignition switch ON] | 0 V |
| 16 (LG) | 15 (Shield) | Door mirror LH camera video signal | Input | [Ignition switch ON]
|
|
| 17 (L) | - | Rear view camera ground | - | [Ignition switch ON] | 0 V |
| 18 (G) | 17 (L) | Rear view camera power supply | Output | [Ignition switch ON] | 6.0 V |
| 19 (Shield) | - | Rear view camera video ground | - | [Ignition switch ON] | 0 V |
| 20 (Y) | 19 (Shield) | Rear view camera video signal | Input | [Ignition switch ON]
|
|
| 24 (LA/LG) | - | CAN-Low | Input/Output | - | - |
| 26 (LA/GR) | - | CAN-High | Input/Output | - | - |
| 39 (B) | - | Ground | - | [Ignition switch ON] | 0 V |
| 40 (LA/V) | 39 (B) | Ignition signal | Input | [Ignition switch ON or START] | Battery voltage |
