Removal and Installation

WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

CAUTION:

When replacing around view monitor control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT". Refer to Description .

Remove passenger side seat. Refer to Removal and Installation - Seat Assembly .
Partially remove passenger side floor trim. Refer to Exploded View .

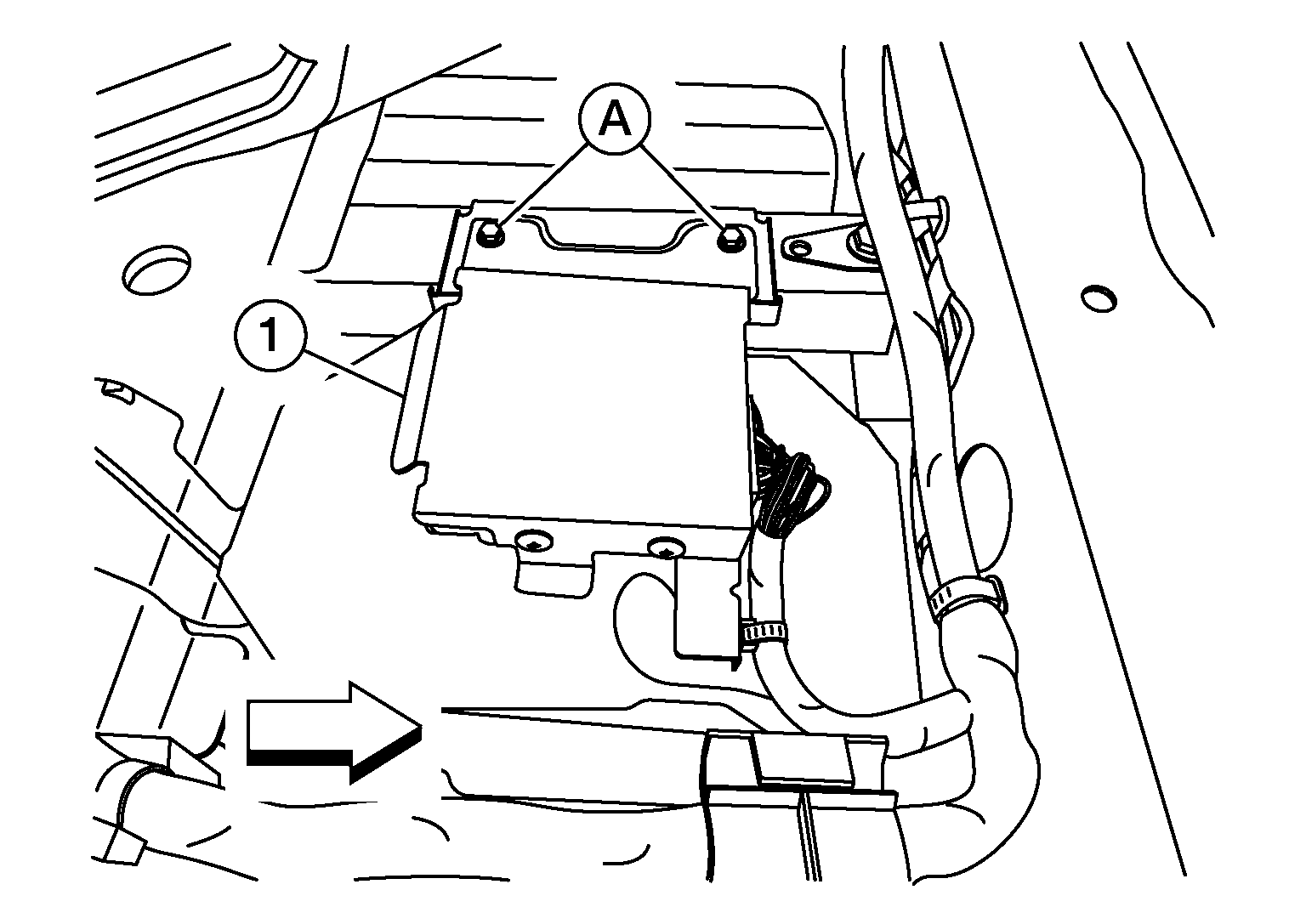

Remove screws (A) from around view monitor control unit (1).

Courtesy of NISSAN

: Front
Disconnect the harness connector from the around view monitor control unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the around view monitor control unit if it has been dropped or sustained an impact.
When replacing around view monitor control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT". Refer to Description .

NOTE:

Perform camera image calibration. Refer to Description .
