Reference Value

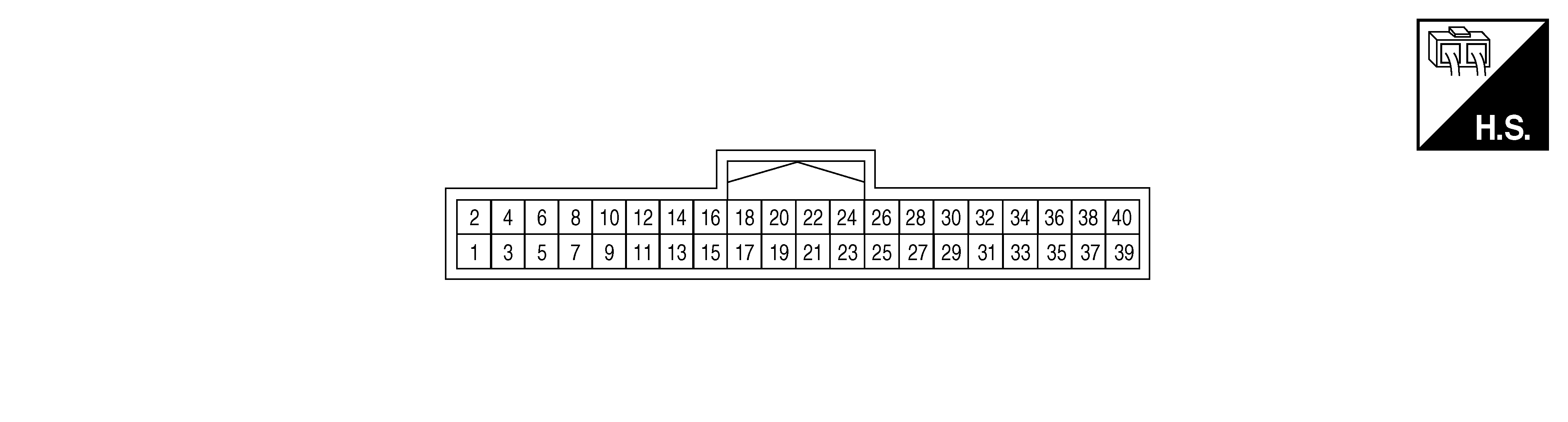

TERMINAL LAYOUT

GNSDB110923Courtesy of NISSAN NORTH AMERICA, INC.

PHYSICAL VALUES

Terminal (Wire color) Description Condition Reference value (Approx.)
+ - Signal name Input/Output
1 (Shield) - Calibration connector (not used) - - -
2 (B) - Calibration connector (not used) - - -
3 (Shield) - Video output shield - - -
4 (W) Ground Video output signal Output [Ignition switch ON]
  • CAMERA switch is ON or shift position is R position
GNSDB109999Courtesy of NISSAN NORTH AMERICA, INC.
5 (B) - Front camera ground - [Ignition switch ON] 0 V
6 (Y) 5 (B) Front camera power supply Output [Ignition switch ON] 6.0 V
7 (Shield) - Front camera video ground - [Ignition switch ON] 0 V
8 (L) 7 (Shield) Front camera video signal Input [Ignition switch ON]
  • CAMERA switch is ON or shift position is R position
GNSDB109999Courtesy of NISSAN NORTH AMERICA, INC.
9 (W) - Door mirror RH camera ground - [Ignition switch ON] 0 V
10 (R) 9 (W) Door mirror RH camera power supply Output [Ignition switch ON] 6.0 V
11 (Shield) - Door mirror RH camera video ground - [Ignition switch ON] 0 V
12 (B) 11 (Shield) Door mirror RH camera video signal Input [Ignition switch ON]
  • CAMERA switch is ON or shift position is R position
GNSDB109999Courtesy of NISSAN NORTH AMERICA, INC.
13 (R) - Door mirror LH camera ground - [Ignition switch ON] 0 V
14 (W) 13 (R) Door mirror LH camera power supply Output [Ignition switch ON] 6.0 V
15 (Shield) - Door mirror LH camera video ground - [Ignition switch ON] 0 V
16 (B) 15 (Shield) Door mirror LH camera video signal Input [Ignition switch ON]
  • CAMERA switch is ON or shift position is R position
GNSDB109999Courtesy of NISSAN NORTH AMERICA, INC.
17 (W) - Rear view camera ground - [Ignition switch ON] 0 V
18 (R) 17 (W) Rear view camera power supply Output [Ignition switch ON] 6.0 V
19 (Shield) - Rear view camera video ground - [Ignition switch ON] 0 V
20 (B) 19 (Shield) Rear view camera video signal Input [Ignition switch ON]
  • CAMERA switch is ON or shift position is R position
GNSDB109999Courtesy of NISSAN NORTH AMERICA, INC.
24 (LA/LG) - CAN-Low Input/Output - -
26 (LA/GR) - CAN-High Input/Output - -
28 (R) - Calibration connector (not used) - - -
29 (BG) - Calibration connector (not used) - - -
30 (P) - Calibration connector (not used) - - -
39 (B) - Ground - [Ignition switch ON] 0 V
40 (LA/V) 39 (B) Ignition signal Input [Ignition switch ON or START] Battery voltage
